HBK(Ultua) SERIES
2024
140lm/w 200W 110

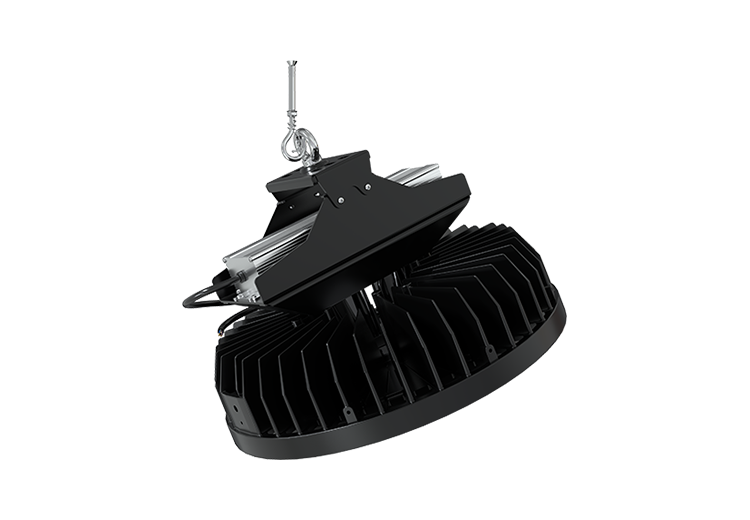

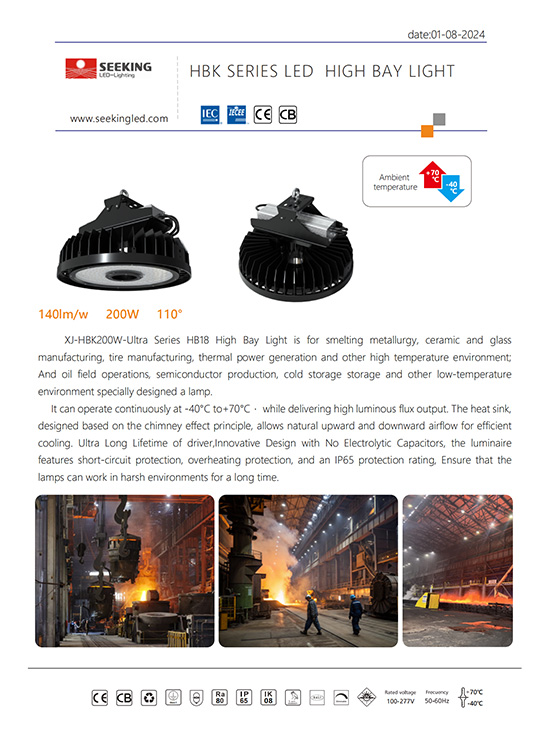

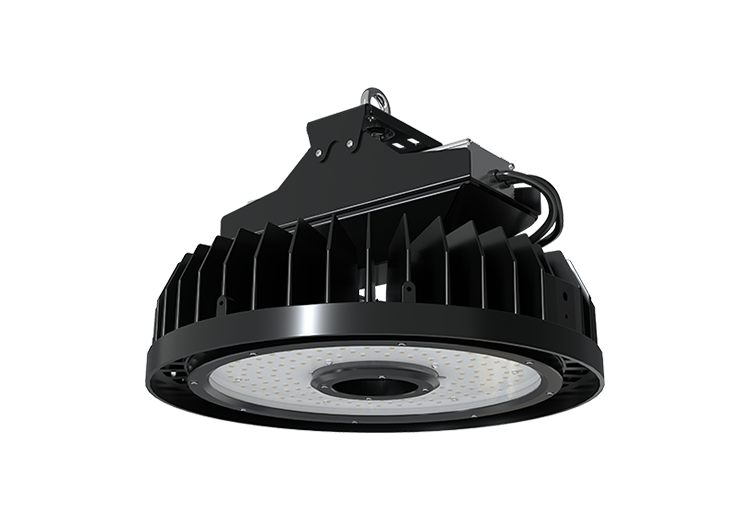

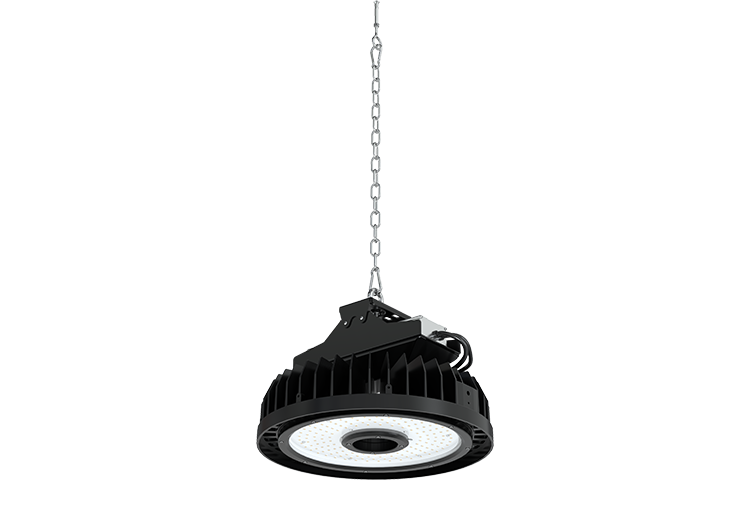

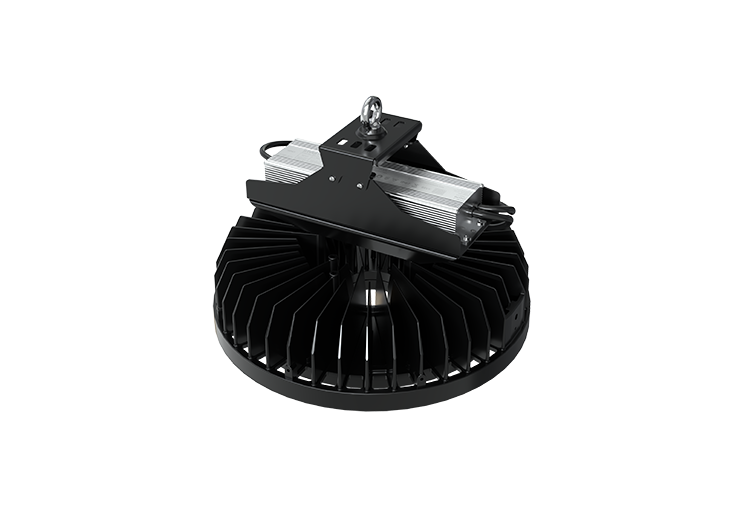

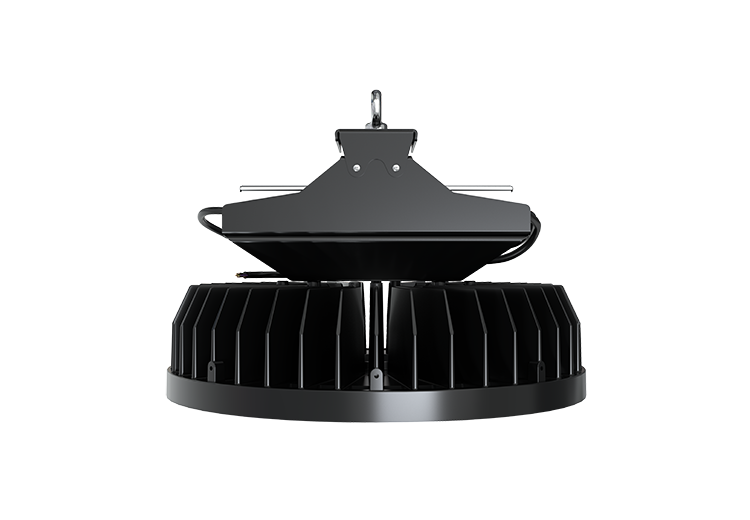

XJ-HBK200W-Ultua Series HB18 High Bay Light is for smelting metallurgy, ceramic and glass manufacturing, tire manufacturing, thermal power generation and other high temperature environment; And oil field operations, semiconductor production, cold storage storage and other low-temperature environment specially designed a lamp. It can operate continuously at -40°C to+70°C， while delivering high luminous flux output. The heat sink, designed based on the chimney effect principle, allows natural upward and downward airflow for efficient cooling. Ultra Long Lifetime of driver,Innovative Design with No Electrolytic Capacitors, the luminaire features short-circuit protection, overheating protection, and an IP66 protection rating, Ensure that the lamps can work in harsh environments for a long time.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Efficacy 140lm/w |
|---|---|---|
| XJ-HBK200W-Ultua | 200W | 28000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：90-305V 50/60Hz

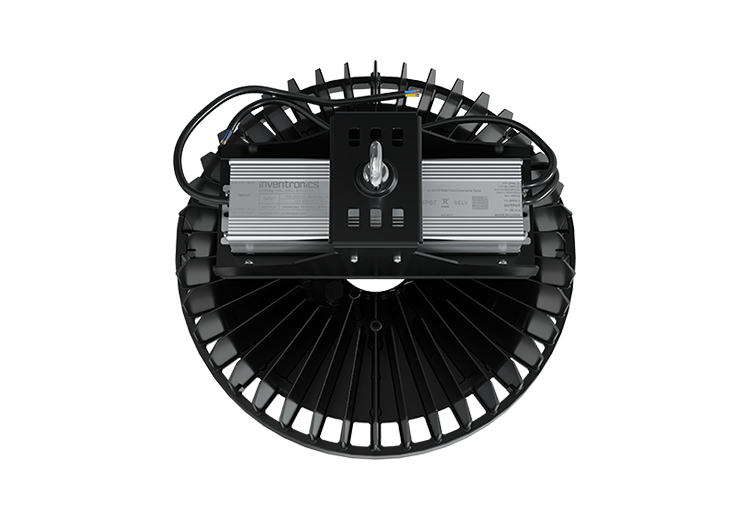

Brand of LED Driver：Inventronics

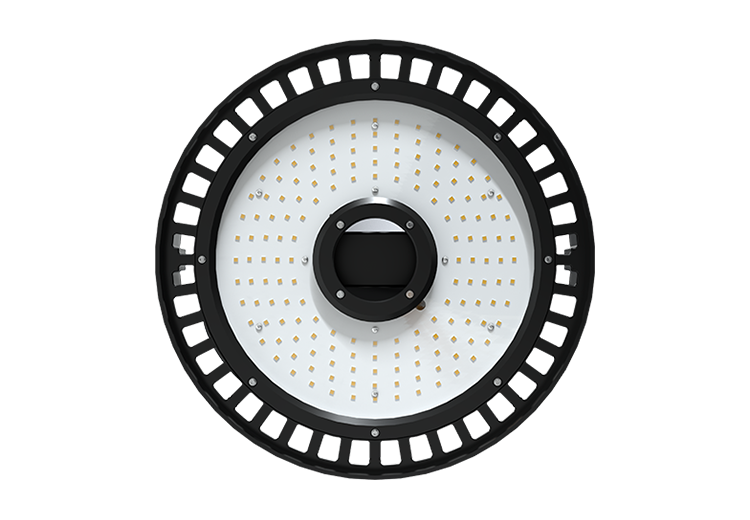

Light Source：Nichia 3030
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：140±5% Lm/W
Beam Angle：110°
Housing：Aluminum Alloy
Surge Protection：6kV line-line,10kV line-earth
Driver Type: Constant Current (CC)
Waterproof：IP65 & IK08
Category of corrosion: C3
Operating Temperature：-40°C to + 70°C
Life Time of LED @Ta=25°C 70000hrs-L90
152000hrs-L80
244000hrs-L70
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color: Tiefschwarz (RAL 9005)

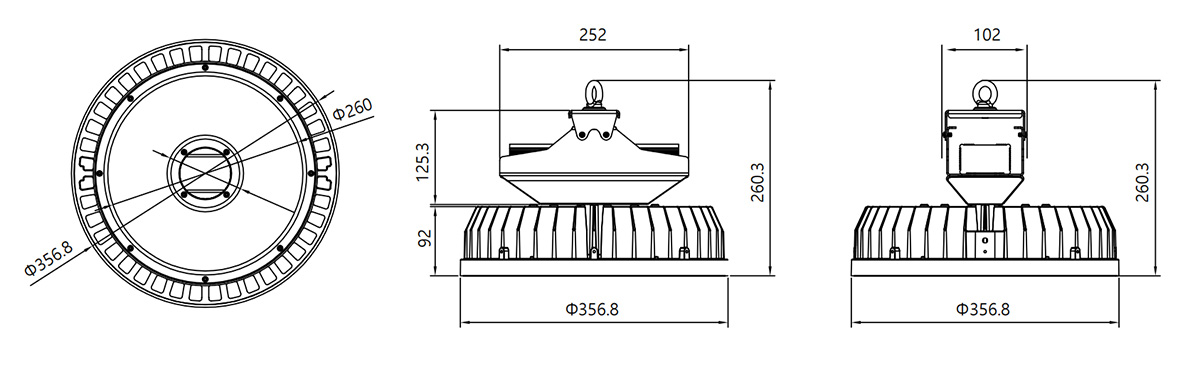

Dimension

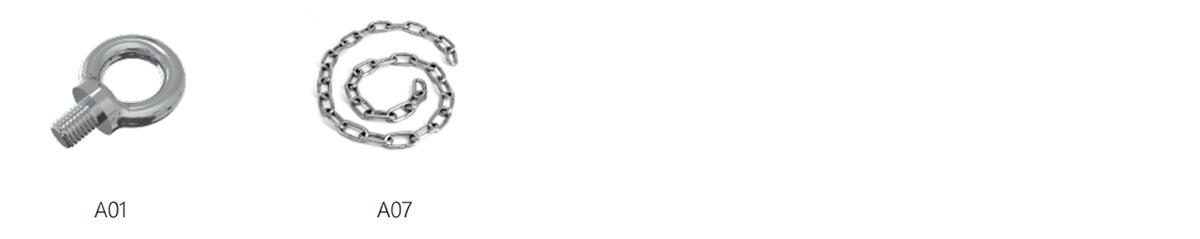

Accessories
| accessories | image | material | dimensions | weight | accessoryuse |
|---|---|---|---|---|---|
| Standard | A01 | Aluminium | M10 | 0.05kg | Suspension accessories |

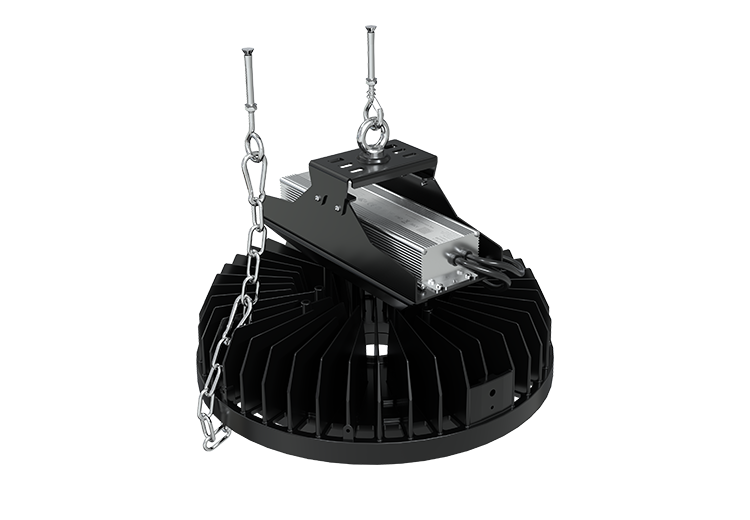

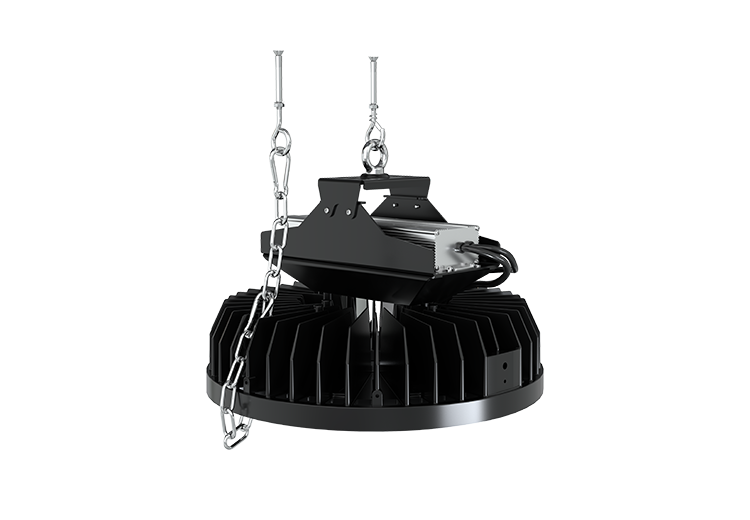

| Optional | A02 | SUS304 | ∅5x1000mm | 0.6kg | Fall prevention safety chain/ Suspension accessories |

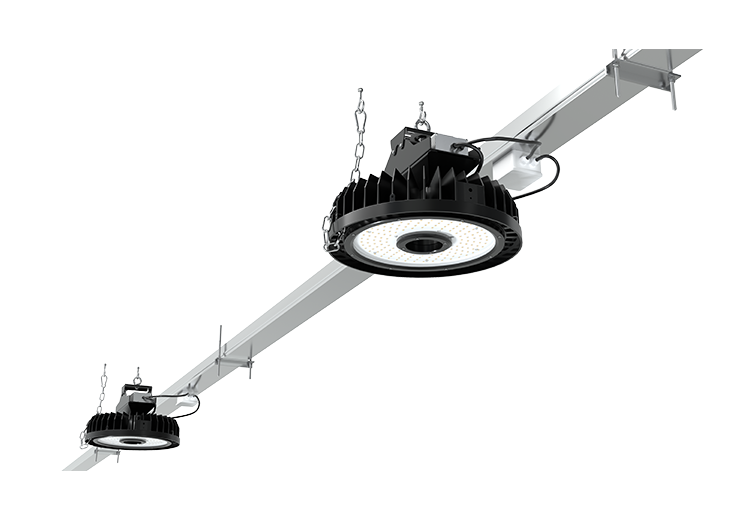

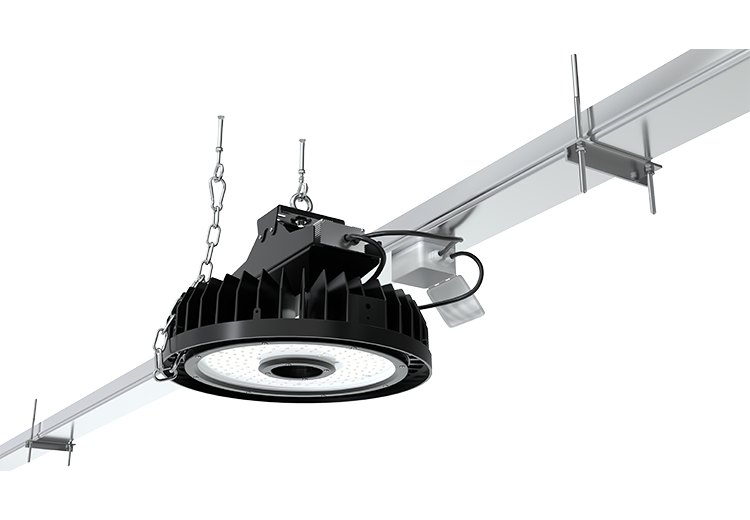

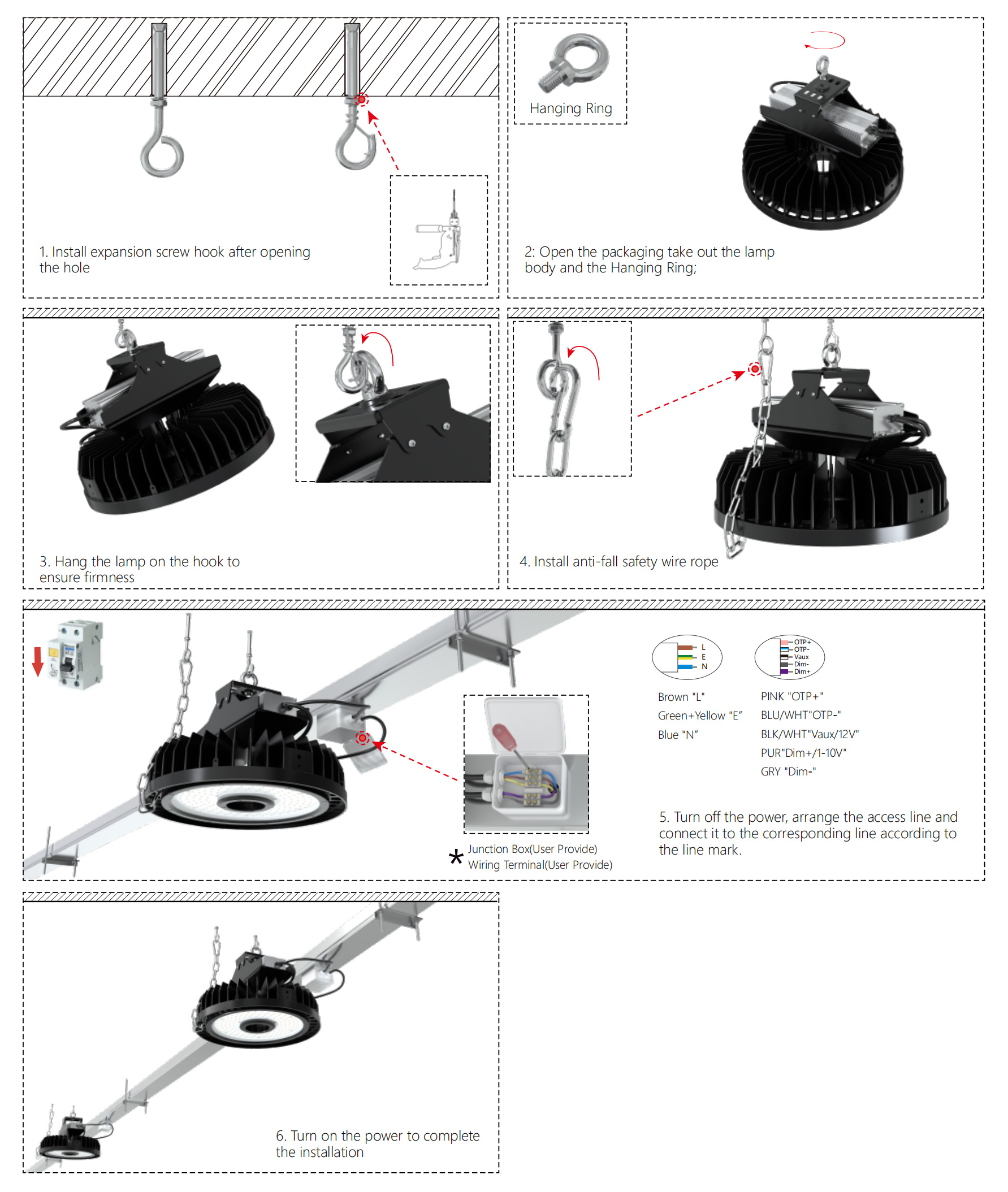

Installation

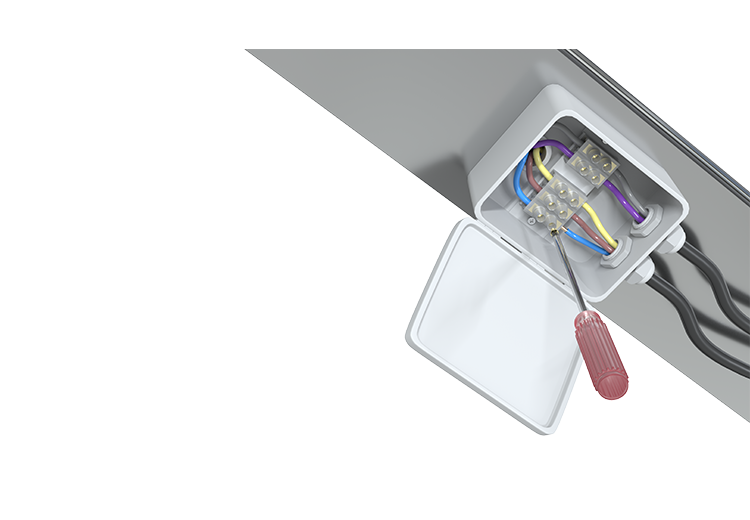

Note: Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall only be replaced by a qualified person;
