GDA SERIES
2025
110 lm/w 50W 90°
GDA series led garden lights Designed with a sleek, expansive, and evenly distributed luminous surface to minimize glare, providing a more comfortable and aesthetic illumination experience.IP66 protection level and solid aluminum shell can withstand extreme weather and water impact. It is suitable for parks, villa courtyards, residential areas, both sides of roads, commercial pedestrian streets, tourist attractions,Lighting in city squares and other places.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous flux 100 lm/w |
|---|---|---|
| XJ-GDA50W | 50W | 5500 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEAN WELL
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
WW(3000K)(Optional) Dw(5000k)(Optional)
Light Efficiency：110±5% Lm/W
Beam Angle：90°
Housing：Aluminum Alloy
Surge Protection：10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color：Tiefschwarz (RAL 9005)

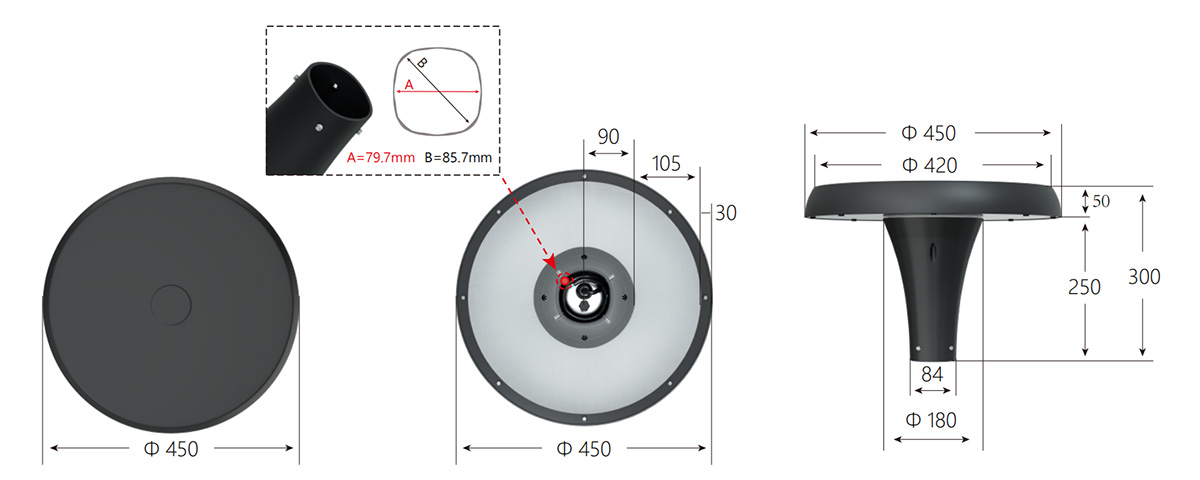

Dimension
Accessories
Installation
Note :
Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall only be replaced by a qualified person;
Points to note：
1. Power off before installation.
2. Do not use cleaners, abrasives or corrosive substances to clean LED lamps.
3. Please check the LED lamps regularly if there is dust or dirt accumulation, Clean if necessary. Contamination can lead to overheating and performance underClean the outside of LED lamps with a dry or wet cloth.
4.Check the cable connection of LED lamps regularly to make sure it is not damaged.
Storage and disposal：
1. The LED lamps should be stored in a dry and clean environ- ment with an ambient temperature of 15-60 degrees Celsius.
2. This LED product should not be used as a standard Waste treatment, lt will be collected or taken to a recycling, proper disposal and environmental treatment center.
Video
Short Video
Download
Please contact our sales to obtain password
Sales：sales01@seekingled.com
