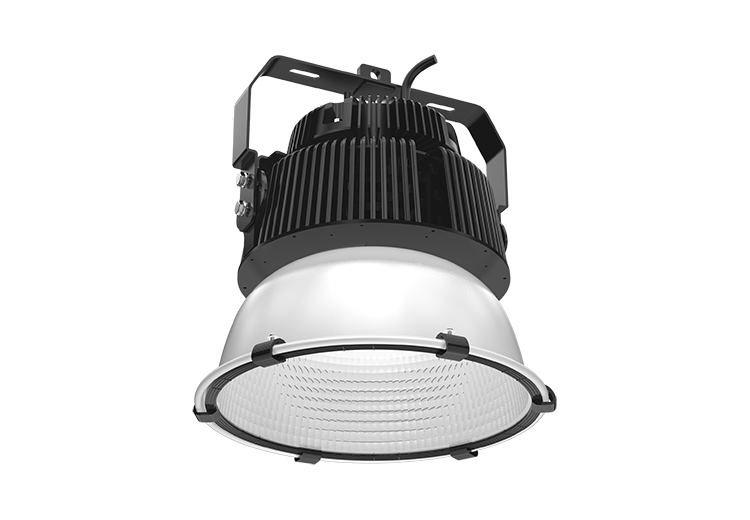

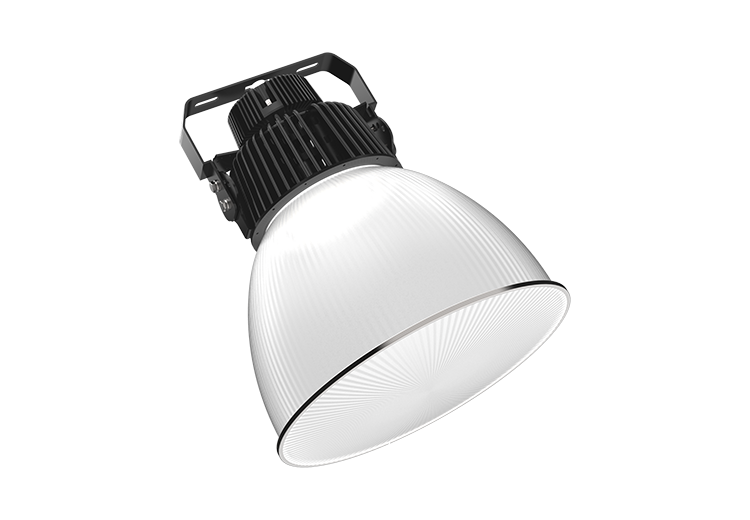

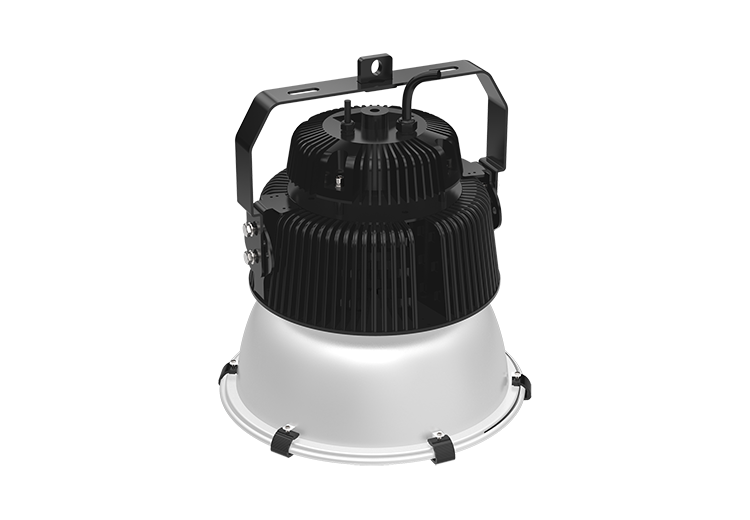

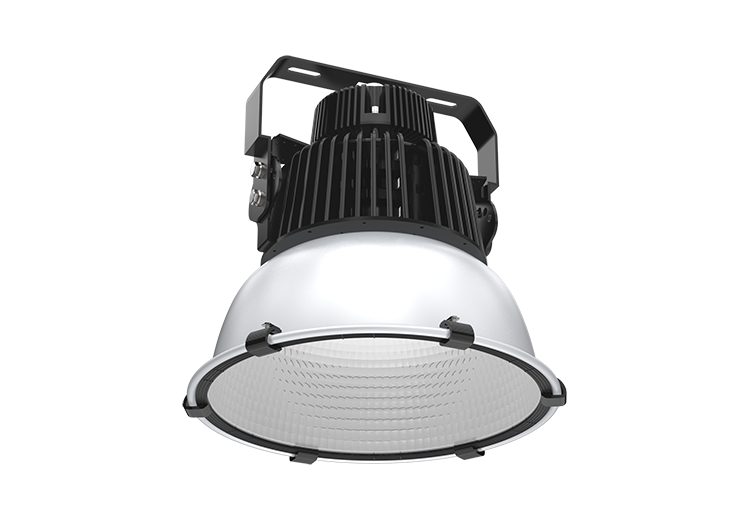

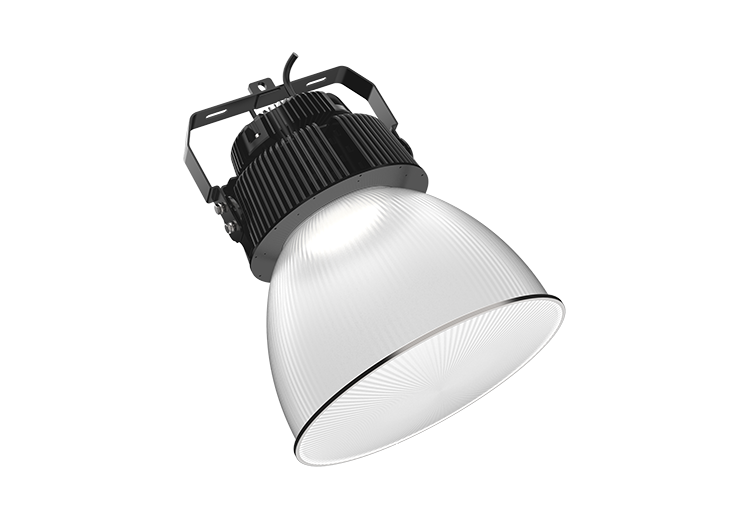

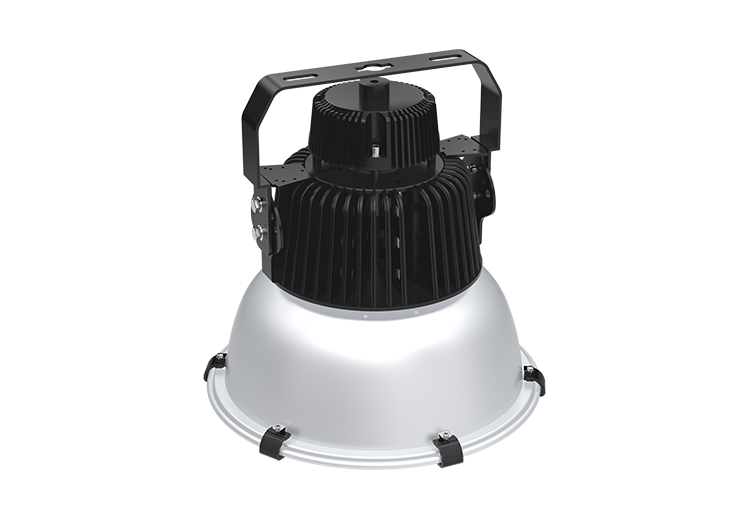

HBS SERIES

HBS series is a LED lamp specially designed for high-rise lighting, Fin-type heat dissipation technology, Light weight, good heat dissipation effect.Products using SMD 3030 light source and MEAN WELL constant current power driver, Light efficiency can reach 140lm/W and lifetime can reach more than 50,000 hours.The lamp has toughened glass cover, IP65 waterproof grade, with a variety of angles of aluminium reflector, Satisfy the application in different occasions.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 140lm/W @ NW
XJ-HBS100W10014000
XJ-HBS150W15021000
XJ-HBS200W20028000
XJ-HBS240W24033600

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:MEANWELL

Light Source:3030

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency:140±5% Lm/W

Beam Angle:90°

Housing:Aluminum Alloy

Waterproof:IP65 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB, RoHS, SAA


Dimension

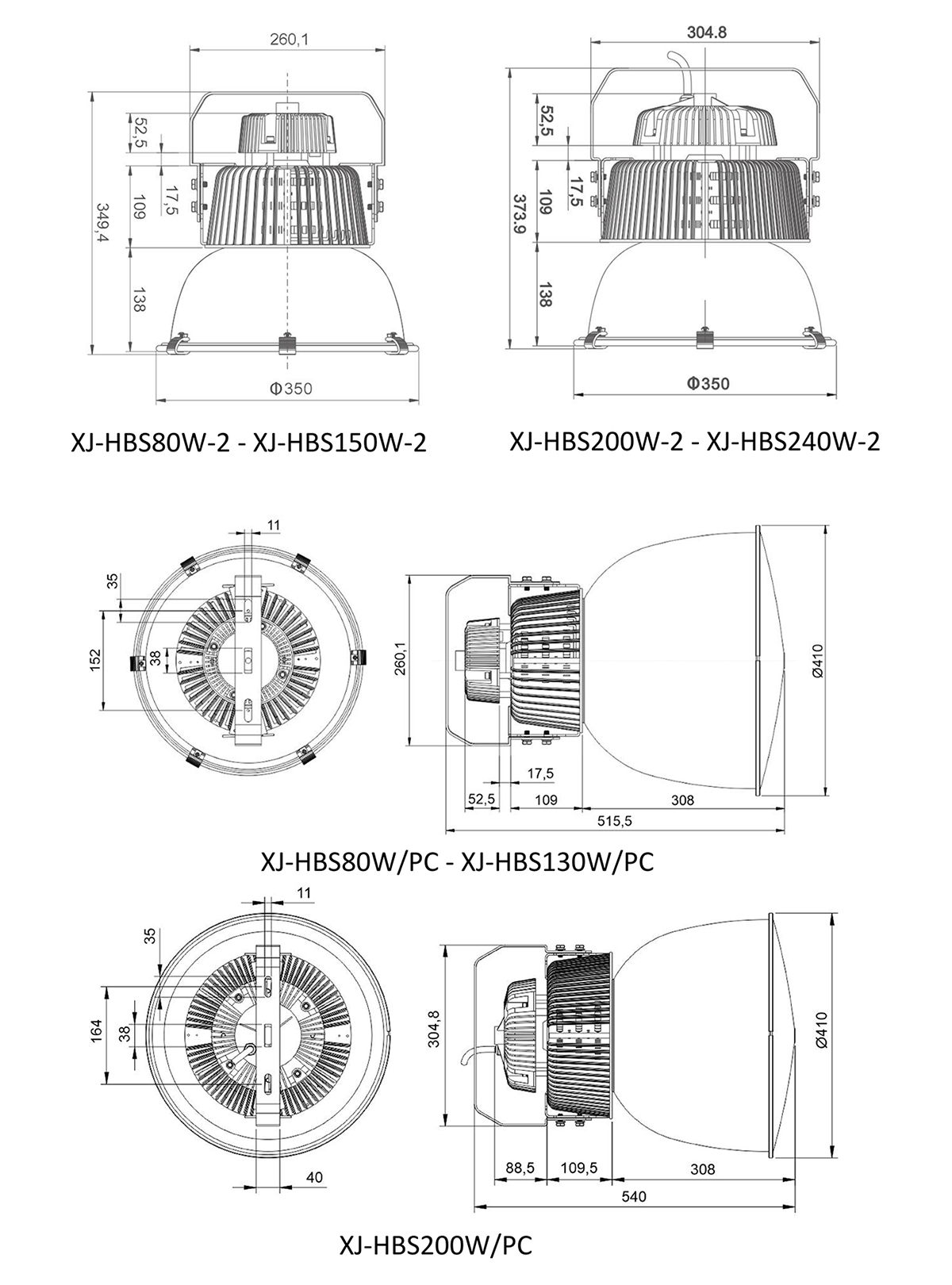

HBS SERIES LED High Bay Light Dimension
