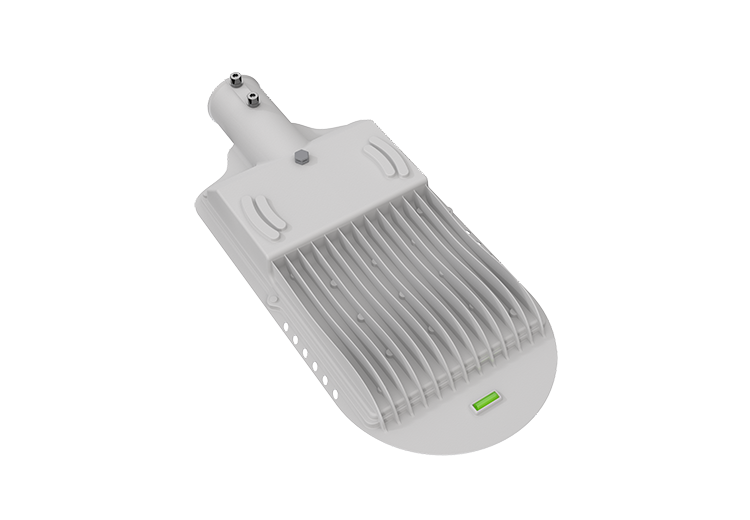

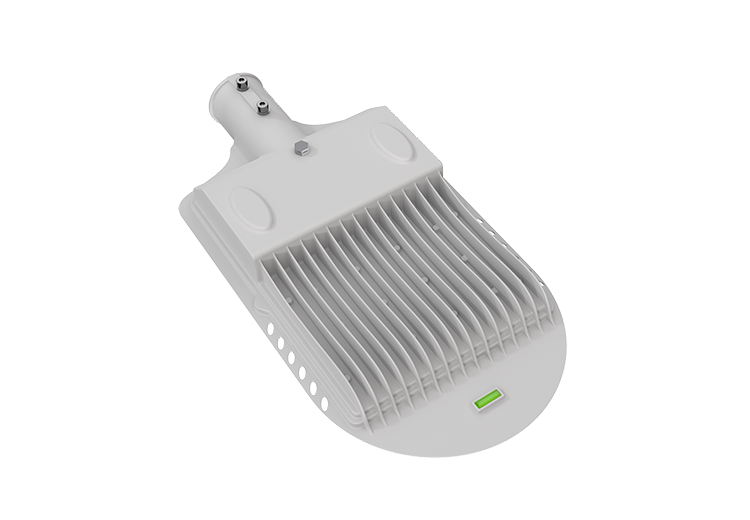

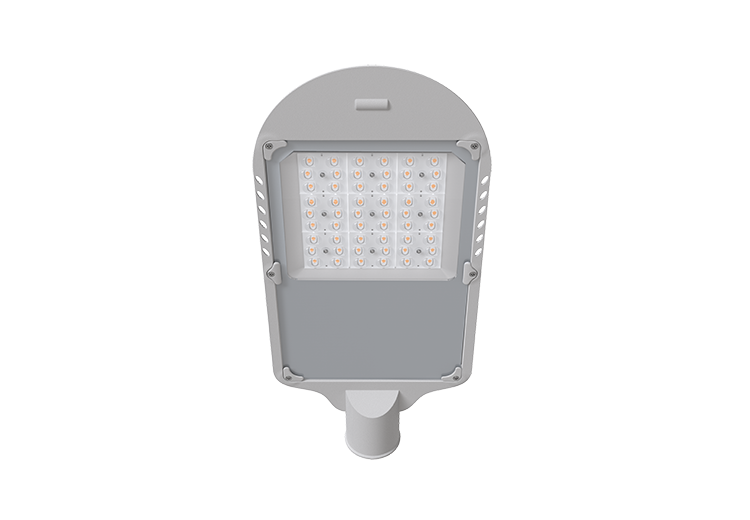

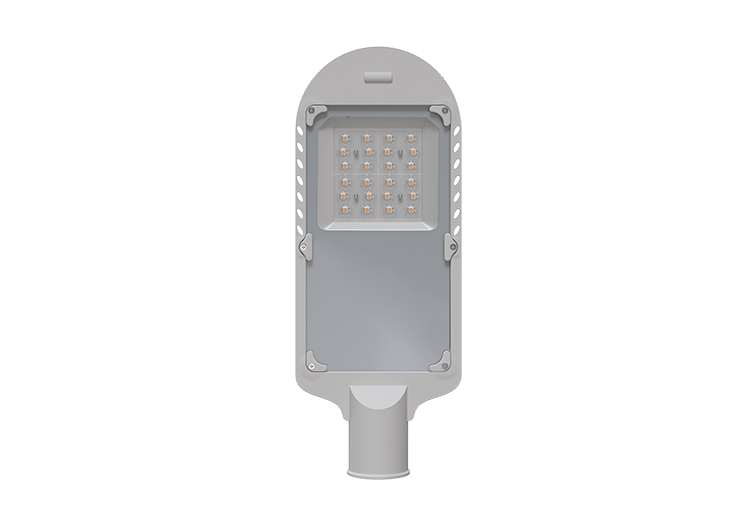

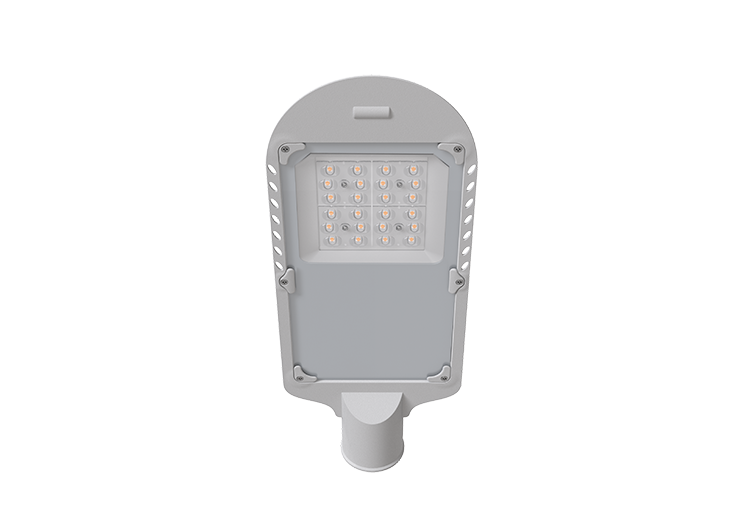

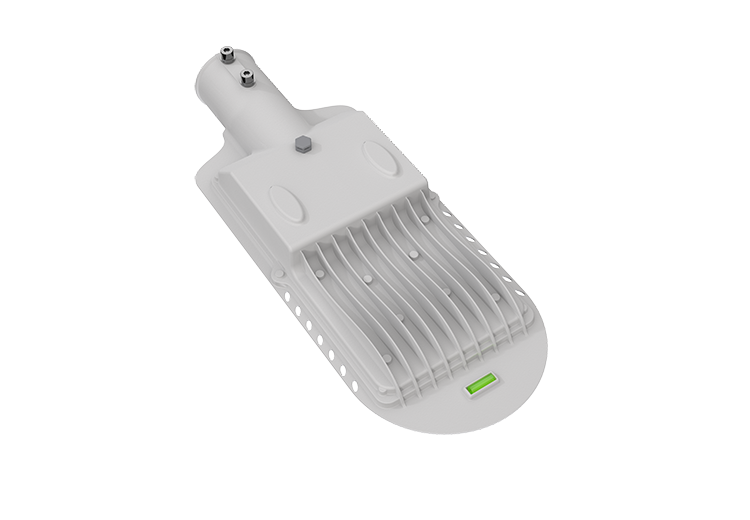

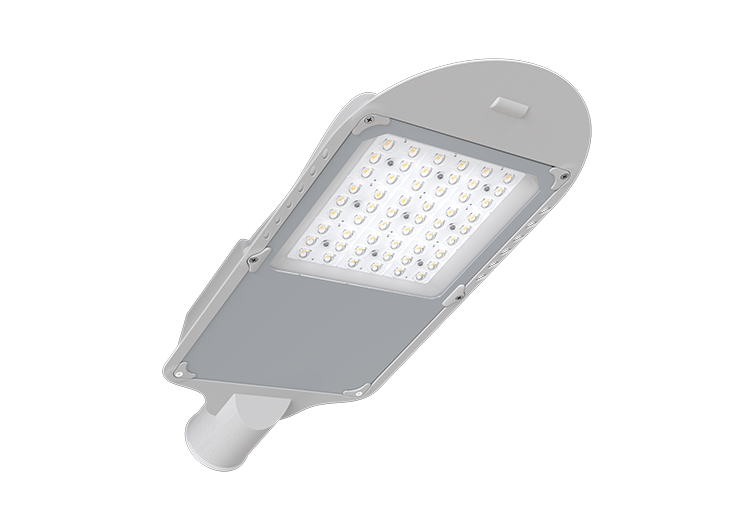

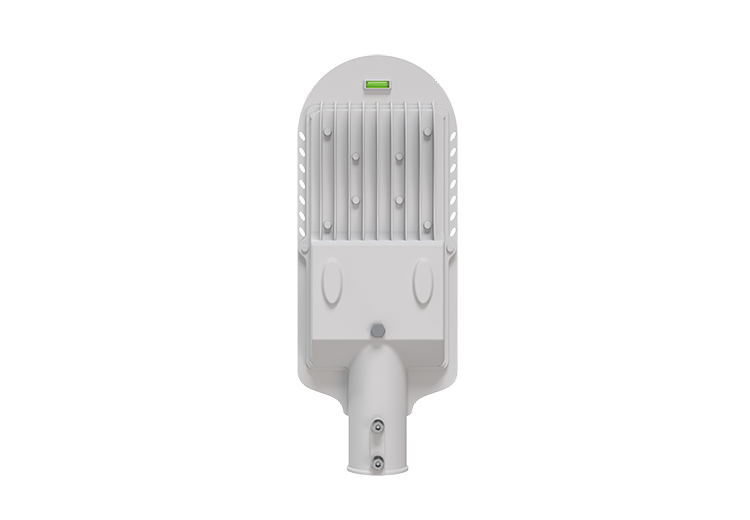

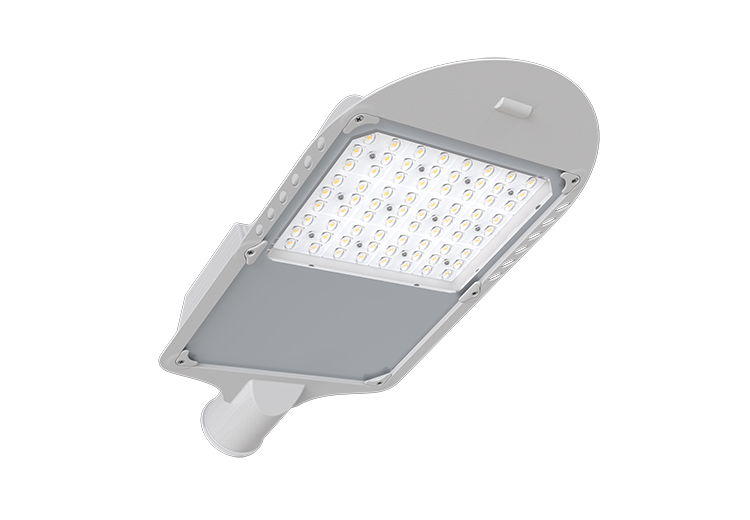

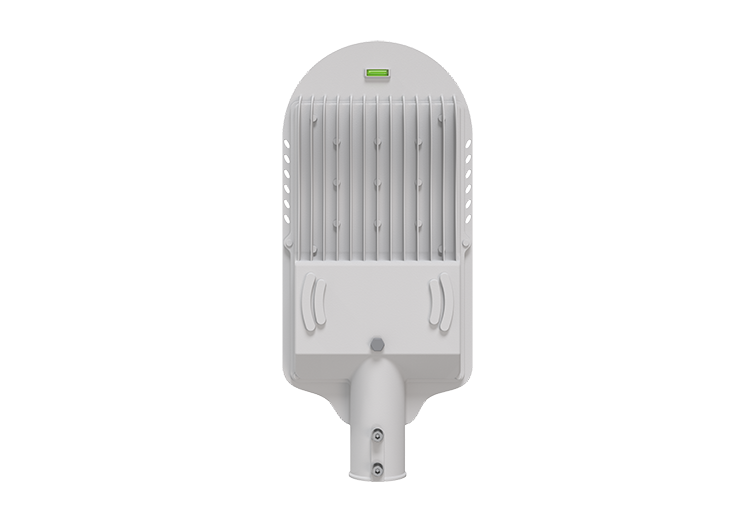

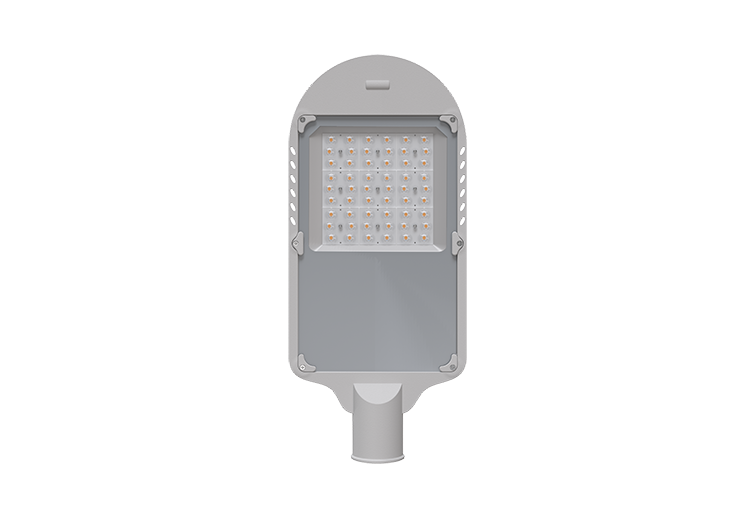

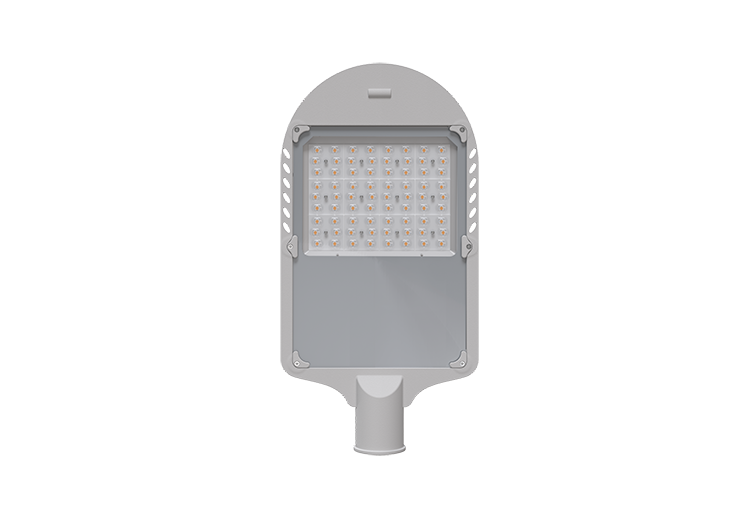

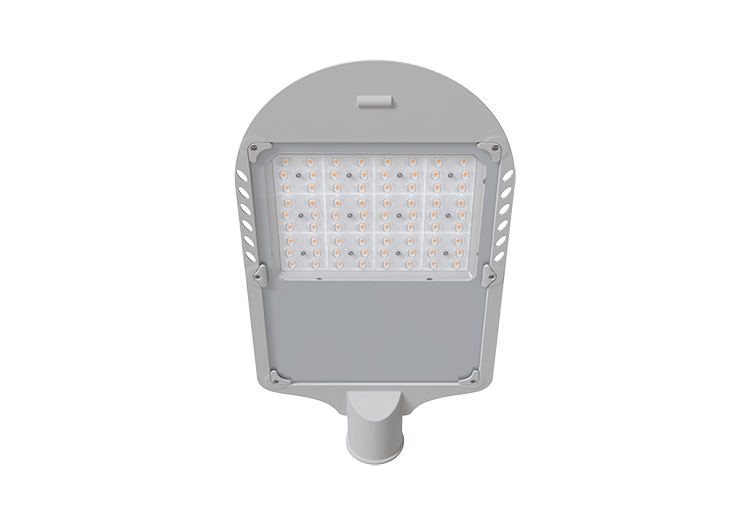

STL-S SERIES
The STL-S series LED street lights adopt a lightweight design, using a high-efficiency 5050 light source, PC lens and tempering glass cover design, use MEAN WELL constant current driver, with excellent lighting efficiency and high cost-effectiveness. Equipped with 10KV SPD, protection level IP66 and IK08, Security and Reliable. STL-S street light is easy to install and Maintenance-free during use. It is the perfect companion for streets, parking lots, and any other open areas that require a large number of LED street lights, providing the lighting you need in any environment
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-STL40W-S | 40 | 6800 |
| XJ-STL50W-S | 50 | 8500 |
| XJ-STL60W-S | 60 | 10200 |
| XJ-STL100W-S | 100 | 17000 |
| XJ-STL120W-S | 120 | 20400 |
| XJ-STL150W-S | 150 | 25500 |
| XJ-STL200W-S | 200 | 32000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input: 100-277V 50/60Hz
Brand of LED Driver: MEAN WELL
Light Source: 5050
CRI Range: Ra>80
CCT Range: NW (4000K) CW (5700K)
Light Efficiency: 170±5% Lm/W
Housing: Aluminum Alloy
Surge protector:10KV
Optical control interface:NEMA
Lens:6 in 1
Certifications:∅60
Waterproof: IP66 & IK08

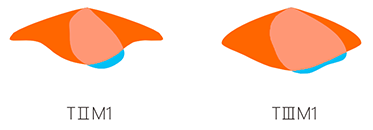

Beam Angle: TⅡM1,TⅢM1,
L80B20@25℃: >100,000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications: TUV, CE, CB, SAA
Warranty: 5 Years

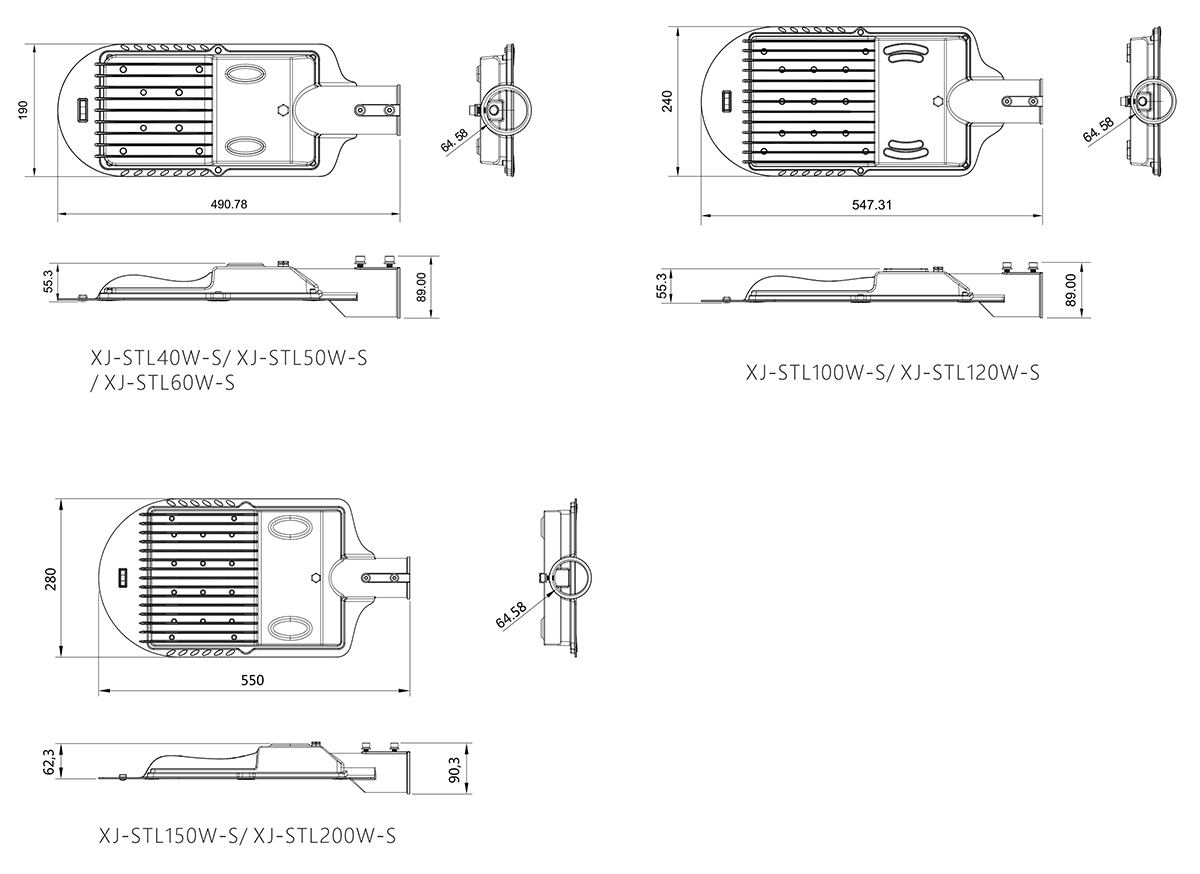

Dimension
Accessories

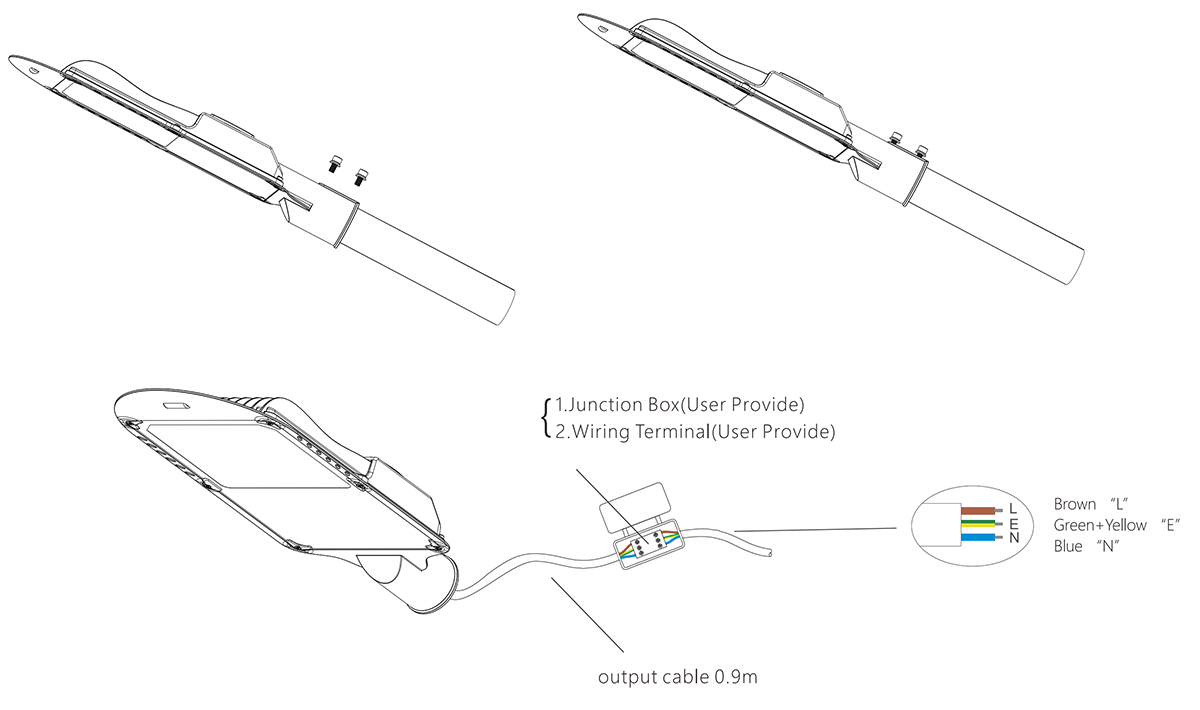

Installation
Note:Plesae make sure the power off before opertion, Installation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire In order to avoid damage or hazard;
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shallonly be replaced by a qualified person.
Video
Short Video
Download
-
STL-S Series Street light SPEC
-
IES+LDT
Please contact our sales to obtain password
