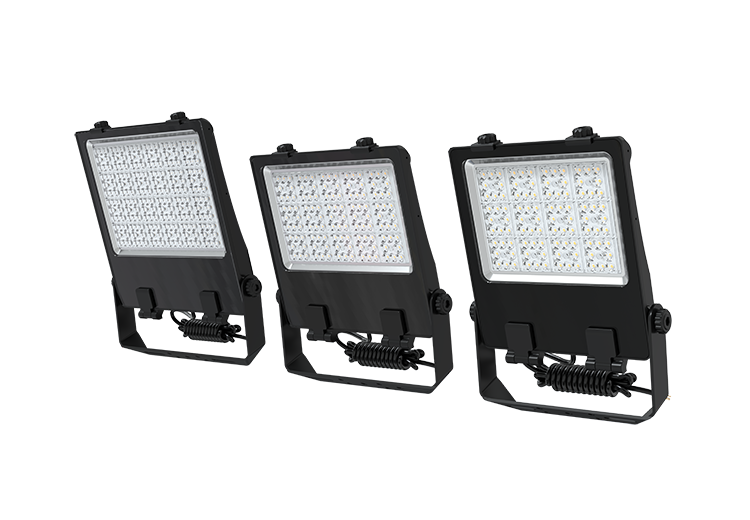

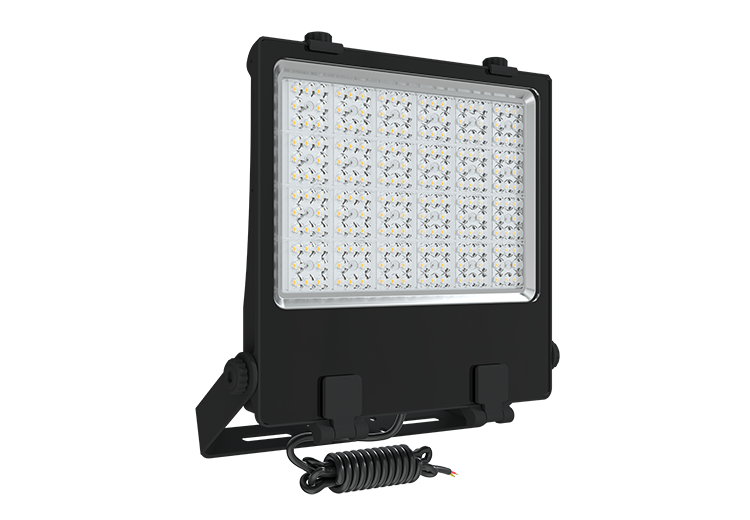

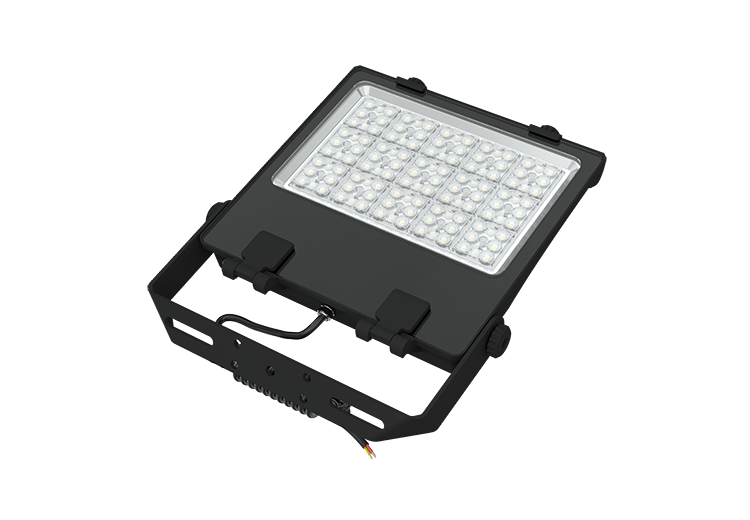

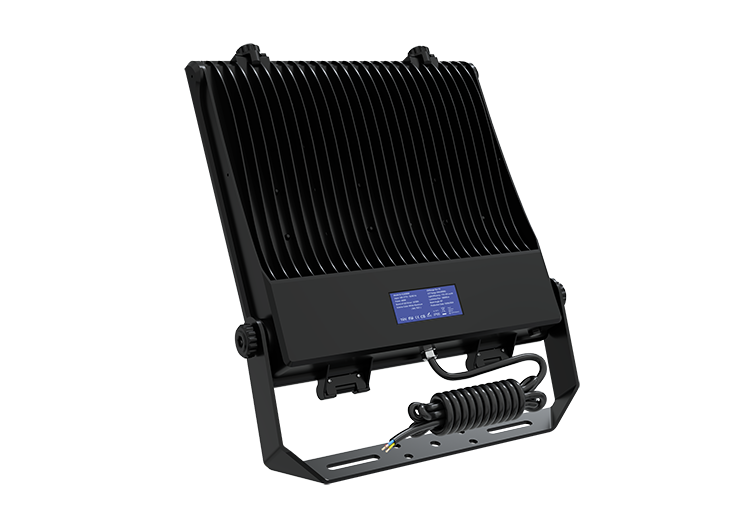

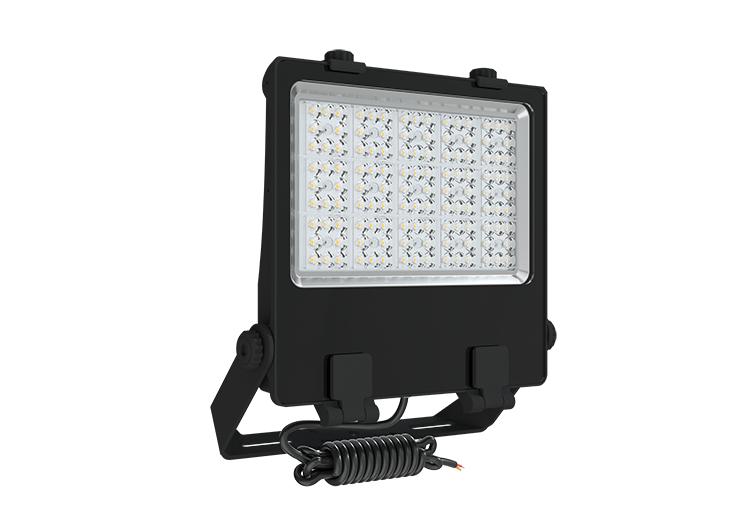

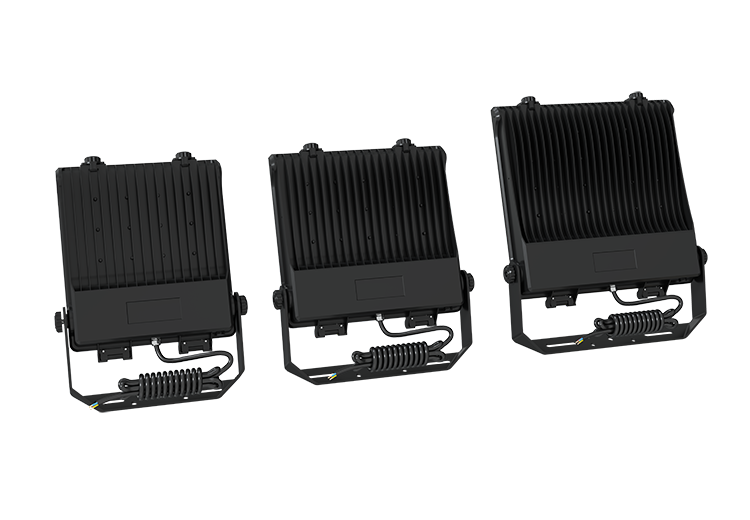

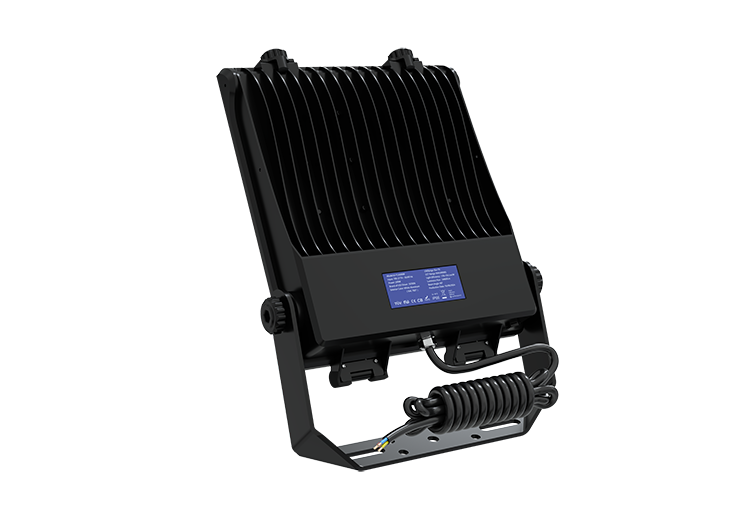

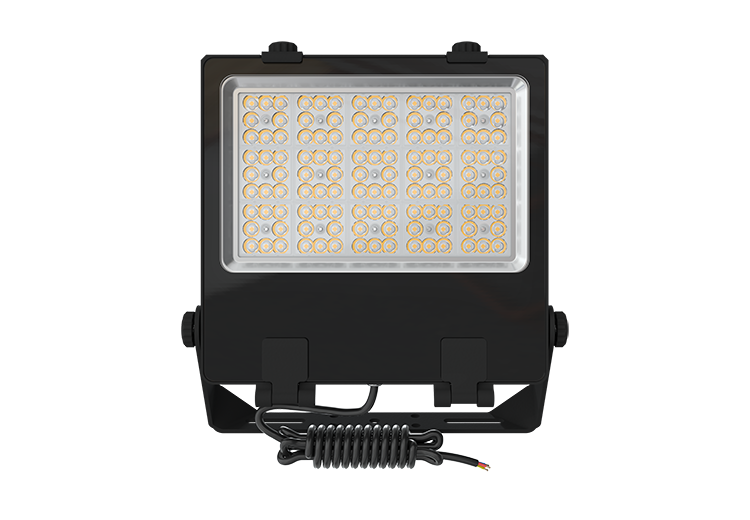

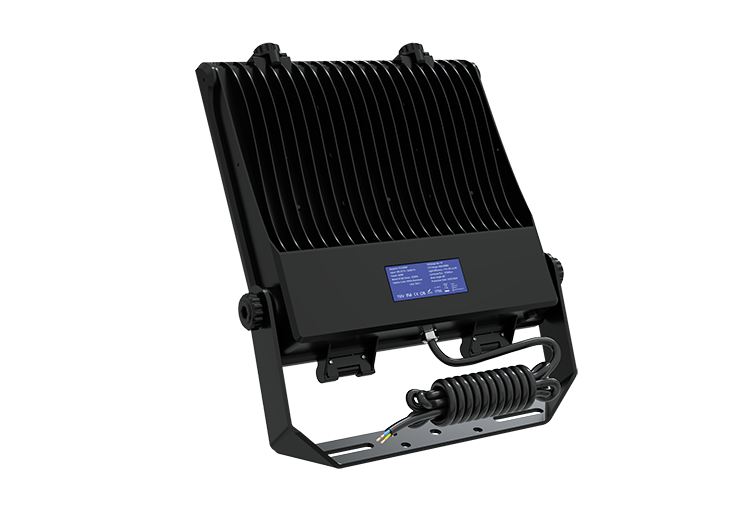

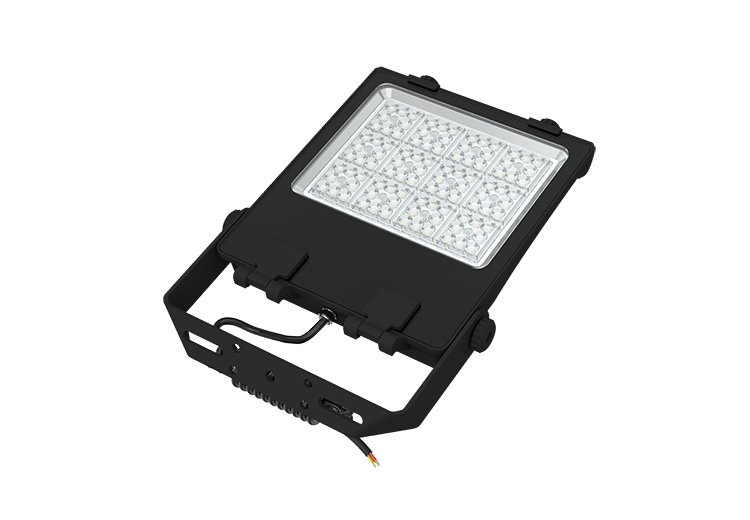

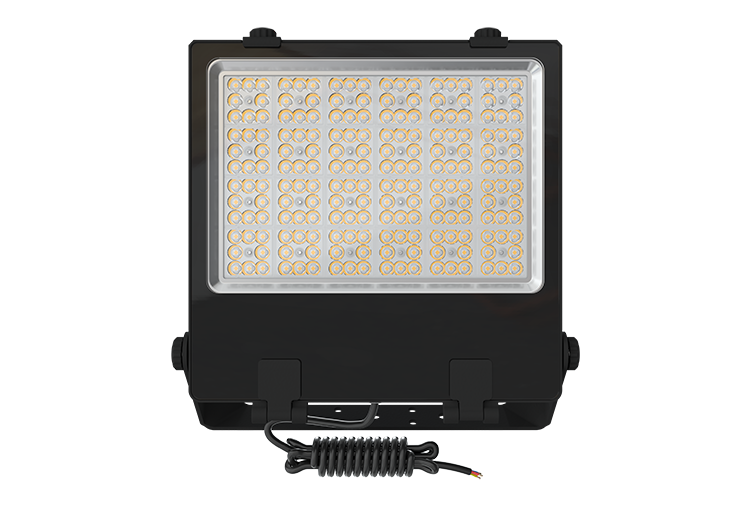

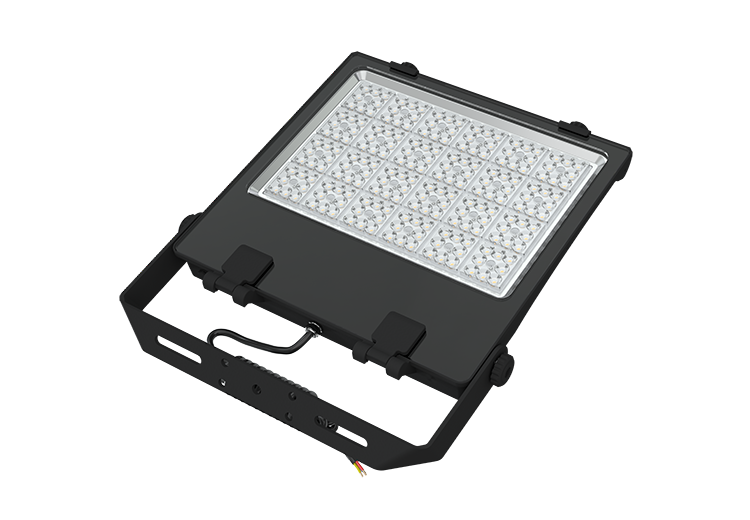

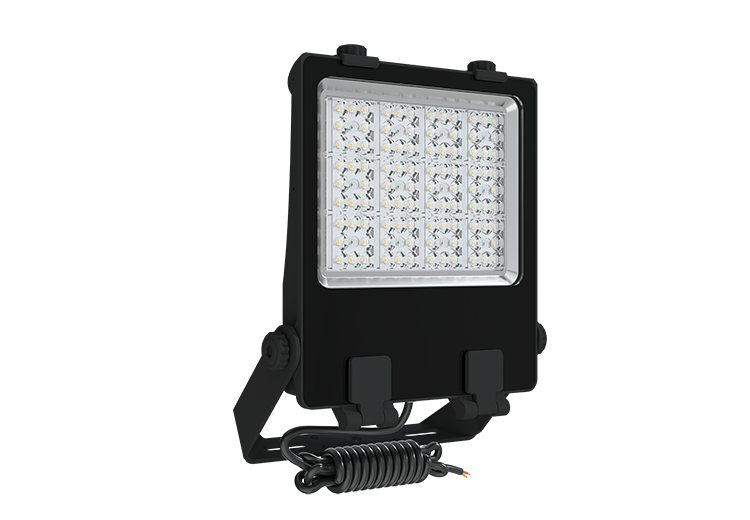

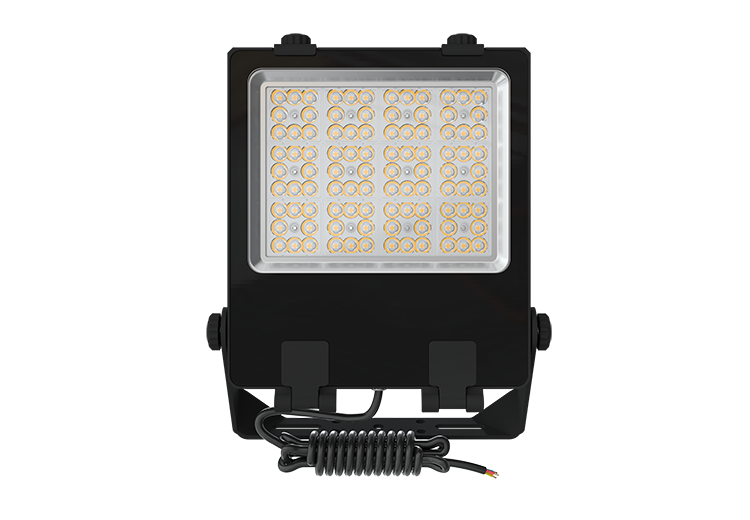

FLX SERIES
FLX series floodlight provides a solution for recreational sports and area lighting, Provides a variety of different angles of light distribution design to meet the lighting needs of different occasions. Tempered Glass and Polycarbonate Optical Lens, Protection level up to IK08 and IP66. Constant Current Power Driver, L80B20 can reach more than 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-FLX100W | 100 | 17000 |
| XJ-FLX200W | 200 | 34000 |
| XJ-FLX300W | 300 | 51000 |
| XJ-FLX400W | 400 | 68000 |
Above lumens based on 4000K Ra:70

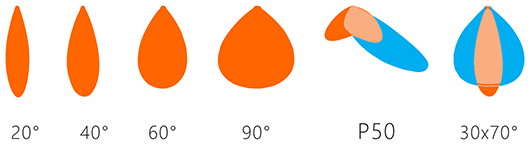

Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEAN WELL/SOSEN(400W)
Light Source：5050
CRI Range：Ra>70
CCT Range：NW(4000K) CW(5700K) WW(3000K)(Optional) DW(5000K)(Optional)
Light Efficiency：170±5% Lm/W
Beam Angle：20°/ 40°/ 60° / 90° / P50 / 30x70°
Housing：Aluminum Alloy
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, SAA
Warranty：5 Years

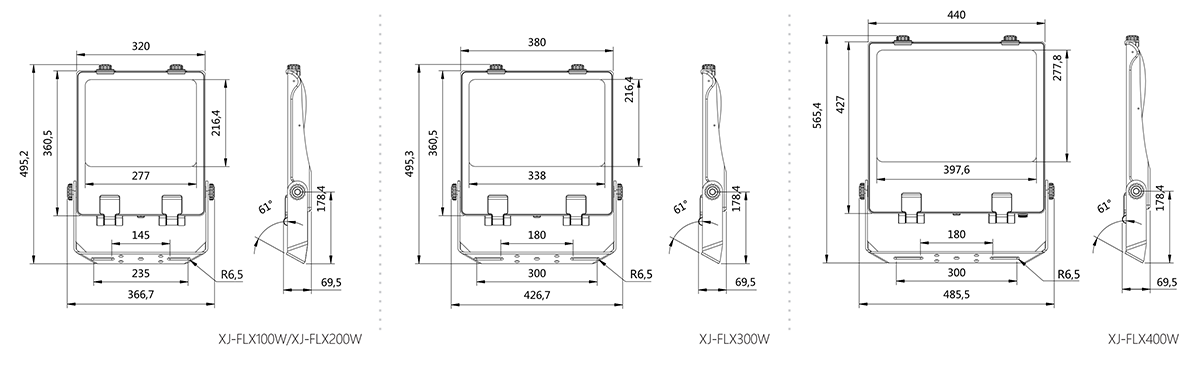

Dimension

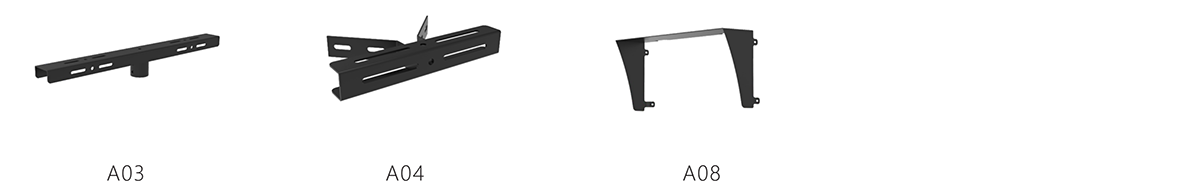

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|

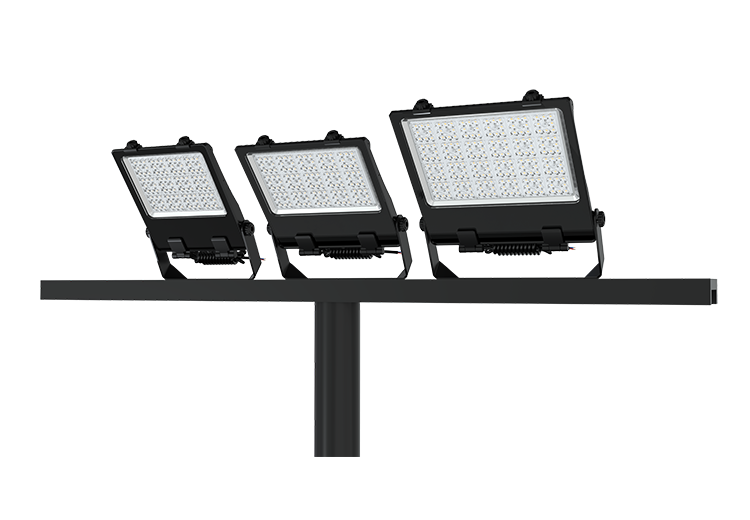

| Optional | A03 | carbon steel | 850x103x80mm | 3.7kg | Installation on top of lamp pole |
| Optional | A04 | carbon steel | 350x174x50mm | 1.0kg | Wall corner mounted lamp |

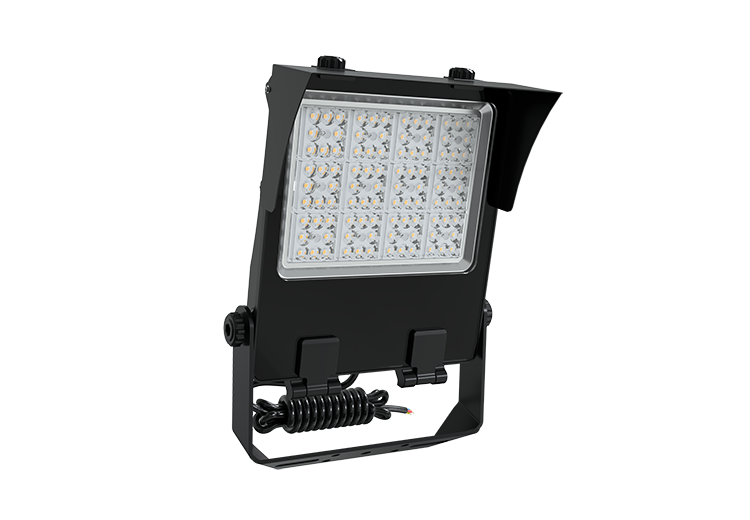

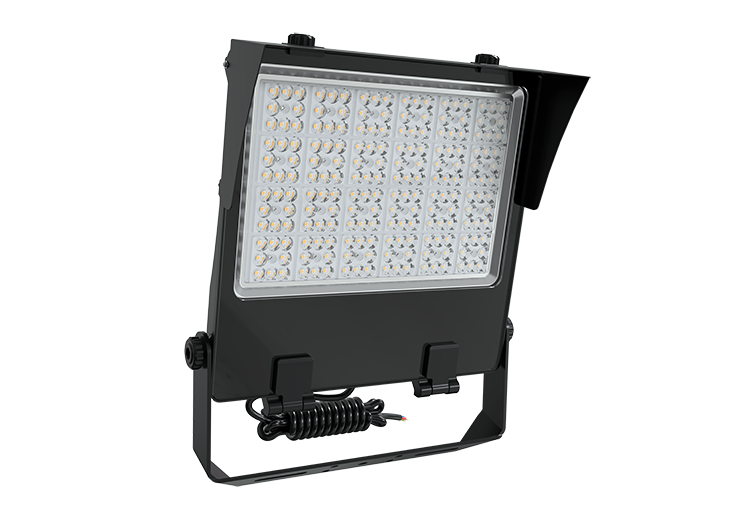

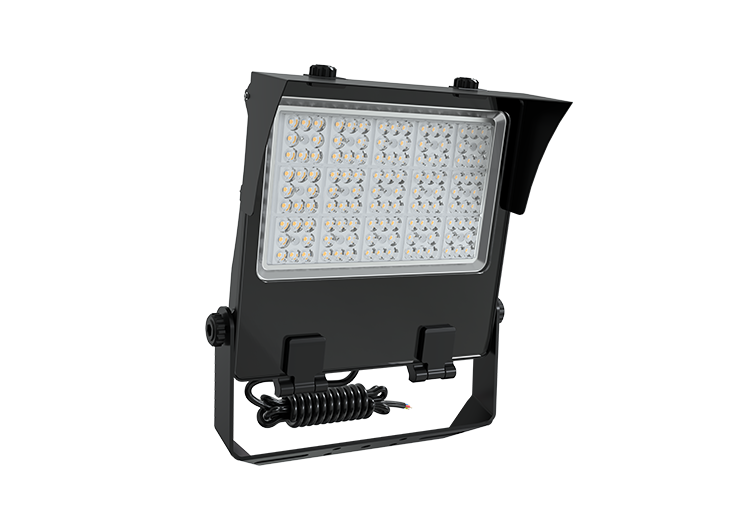

| Optional | A08 | aluminium | / | 0.2kg | Reduce light pollution |
Installation

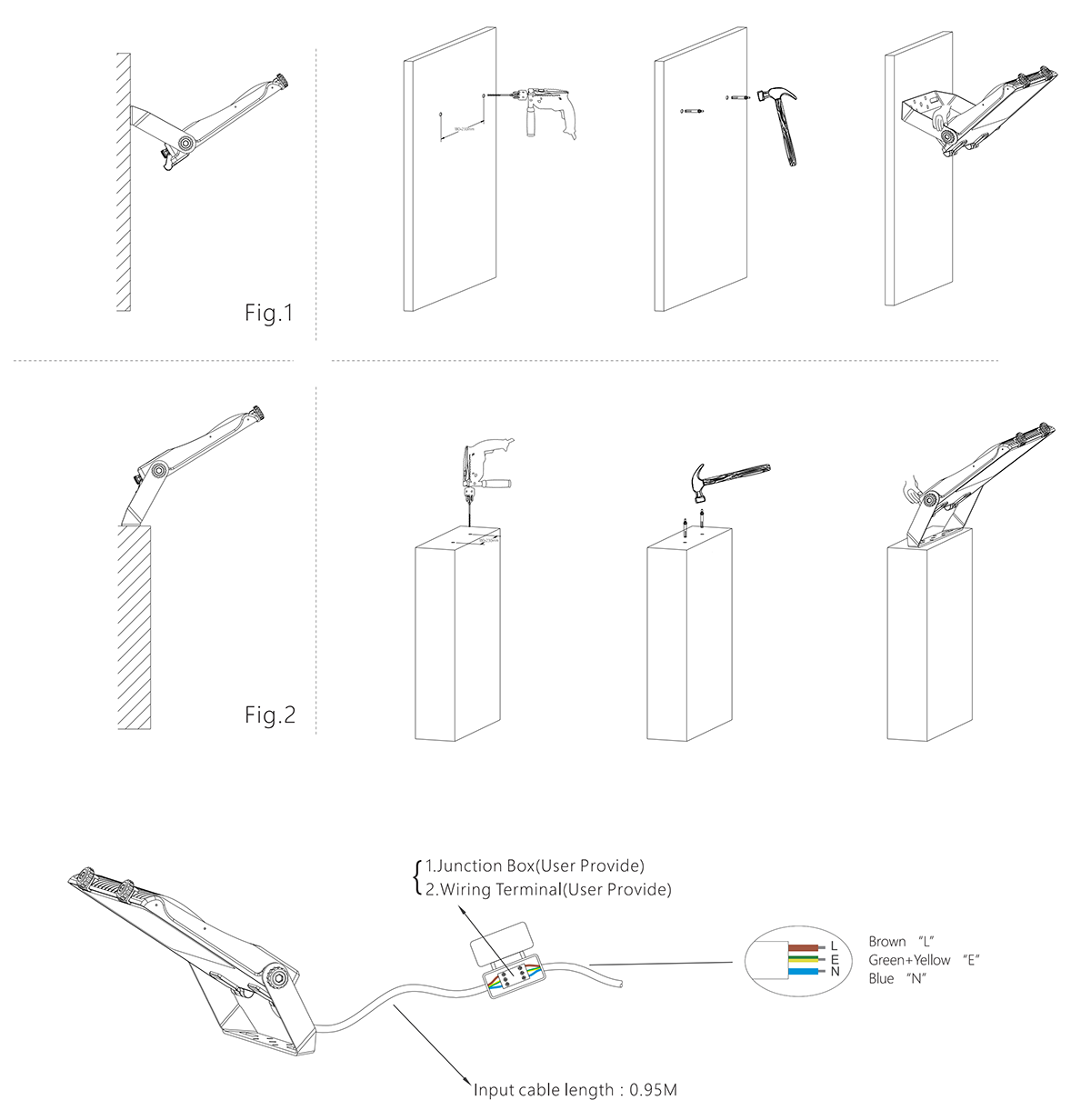

Installation Steps
1. Punch two holes with a spacing of 100-190mm.
2. Install the setscrews.
3. Put the lamp card into the setscrews and lock it tightly.
4. Connect the power cable.
5. Adjust the lamp angle and clean it.
Note:Plesae make sure the power off before opertion, Installation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire In order to avoid damage or hazard;
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shallonly be replaced by a qualified person.
