HB15(GLE) SERIES
2023

UGR < 19 CIE190:2010

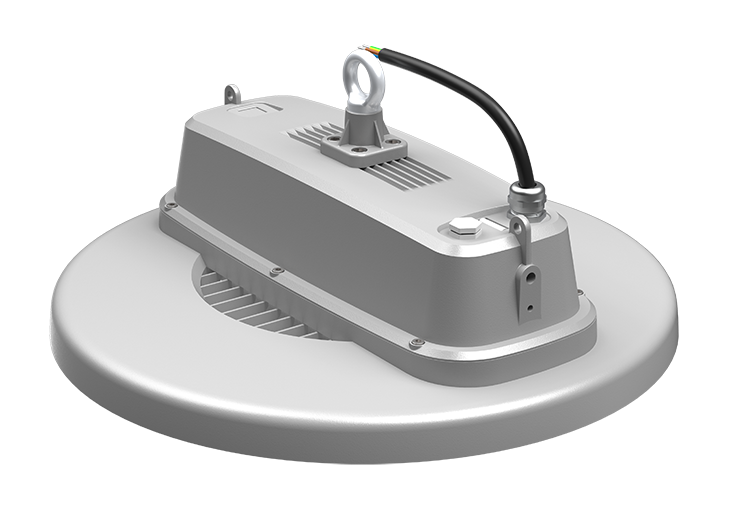

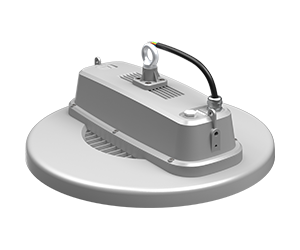

The HB15(GLE) high bay light is perfect for indoor sports venues, airport waiting rooms, car sales centers, supermarkets, and exhibition centers. It features a low glare design with a UGR < 19 (CIE190:2010). With a protection level up to IK09 and IP69K, it ensures durability and reliability. The constant current power driver and L80B20 rating guarantee a lifespan of over 100,000 hours.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 170lm/W
XJ-GLE80W8013600
XJ-GLE100W10017000
XJ-GLE150W15025500
XJ-GLE200W20034000
XJ-GLE240W24040800

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:MEANWELL / MOSO

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency:170±5% Lm/W

Beam Angle:90°

Housing:Aluminum Alloy

Waterproof:IP69K & IK09

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB, ETL, FCC, SAA


Dimension

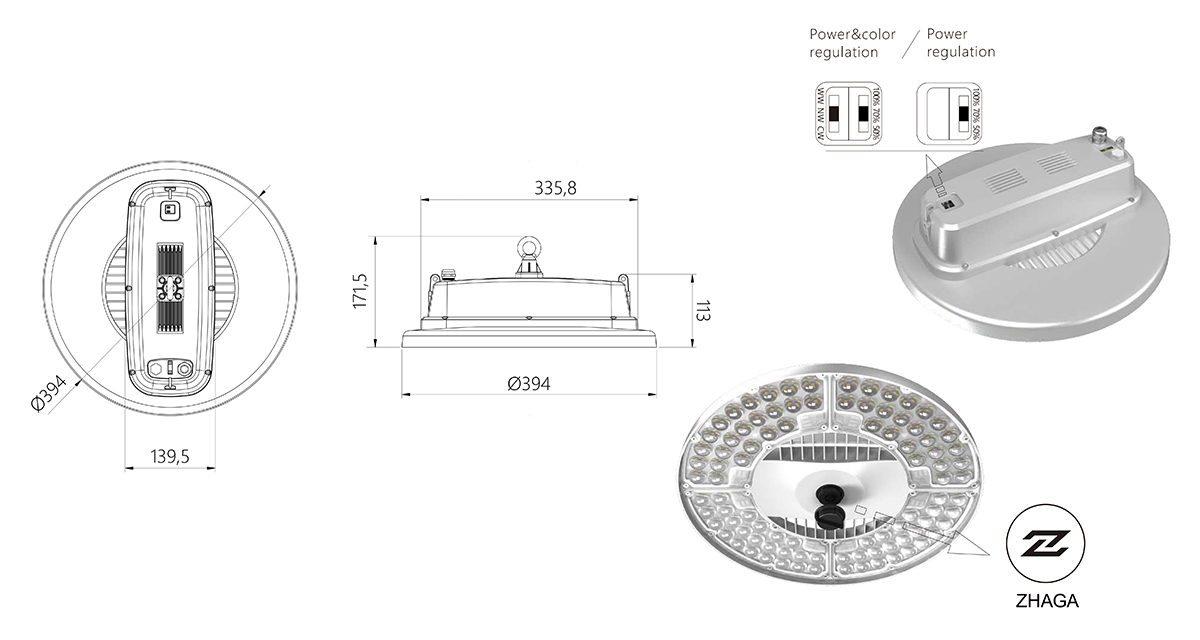

HB15(GLE) SERIES LED High Bay Light Dimension

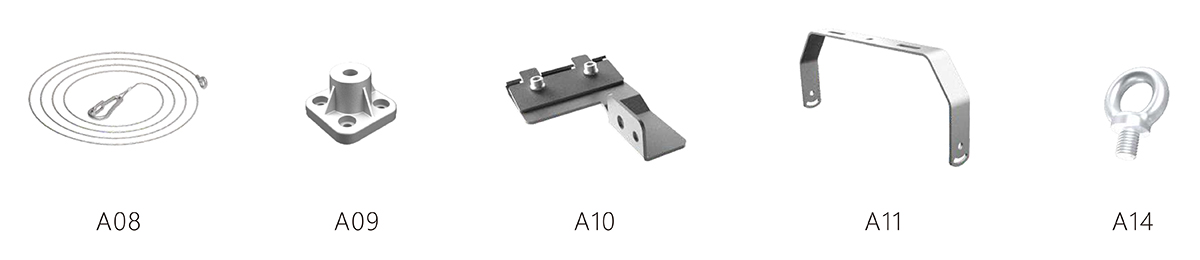

Accessories

accessoriesimagematerialdimensionsweightaccessory use
OptionalA08SUS304∅ 2.0x1000mm0.04kgSuspension installation

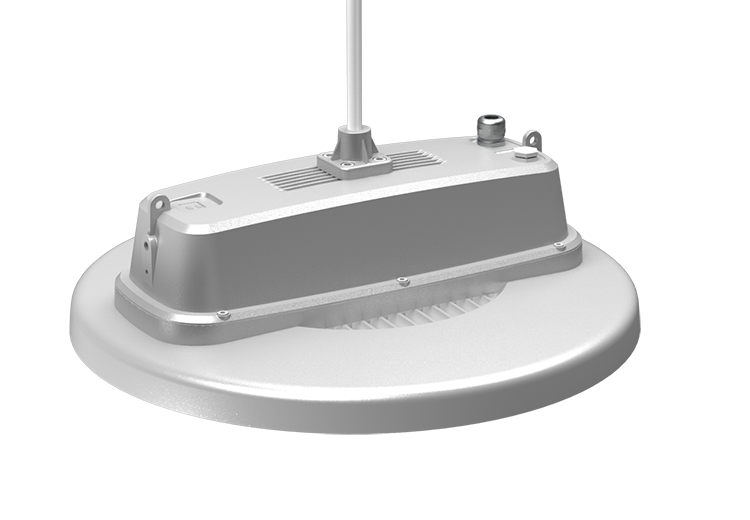

OptionalA09ADC12M100.05kgHang pipe installation

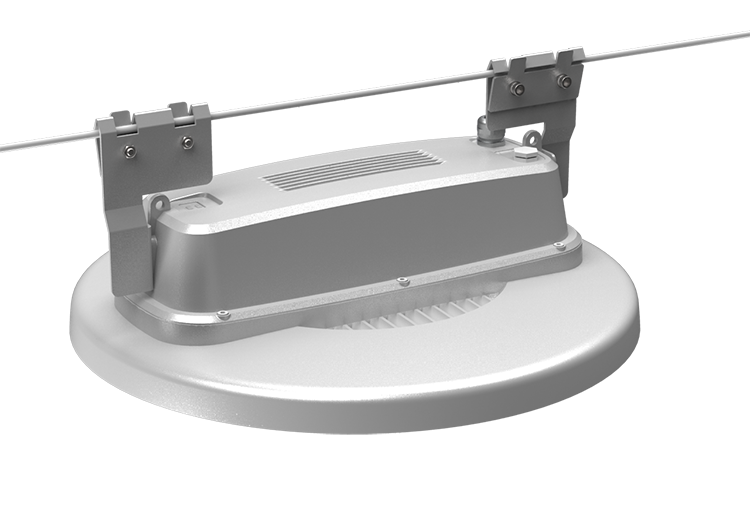

OptionalA10carbon steel76.5×25×115mm0.15kgSteel wire installation

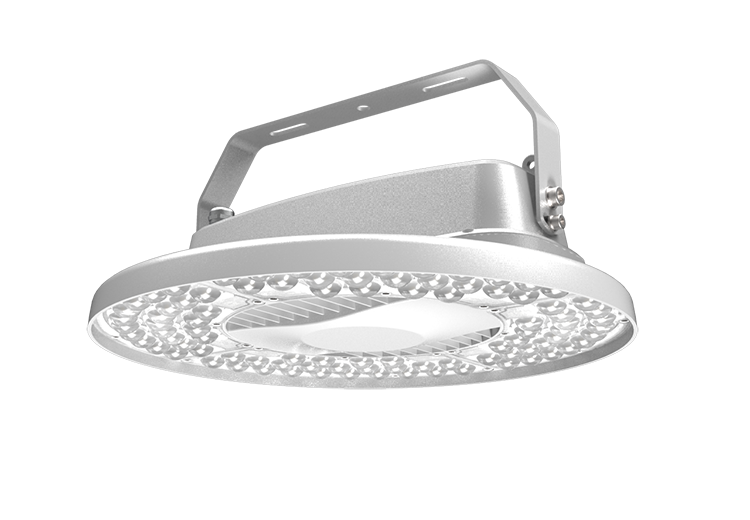

OptionalA11carbon steel318×133×32mm0.38kgBracket installation
OptionalA14carbon steelM100.06kgSuspension installation

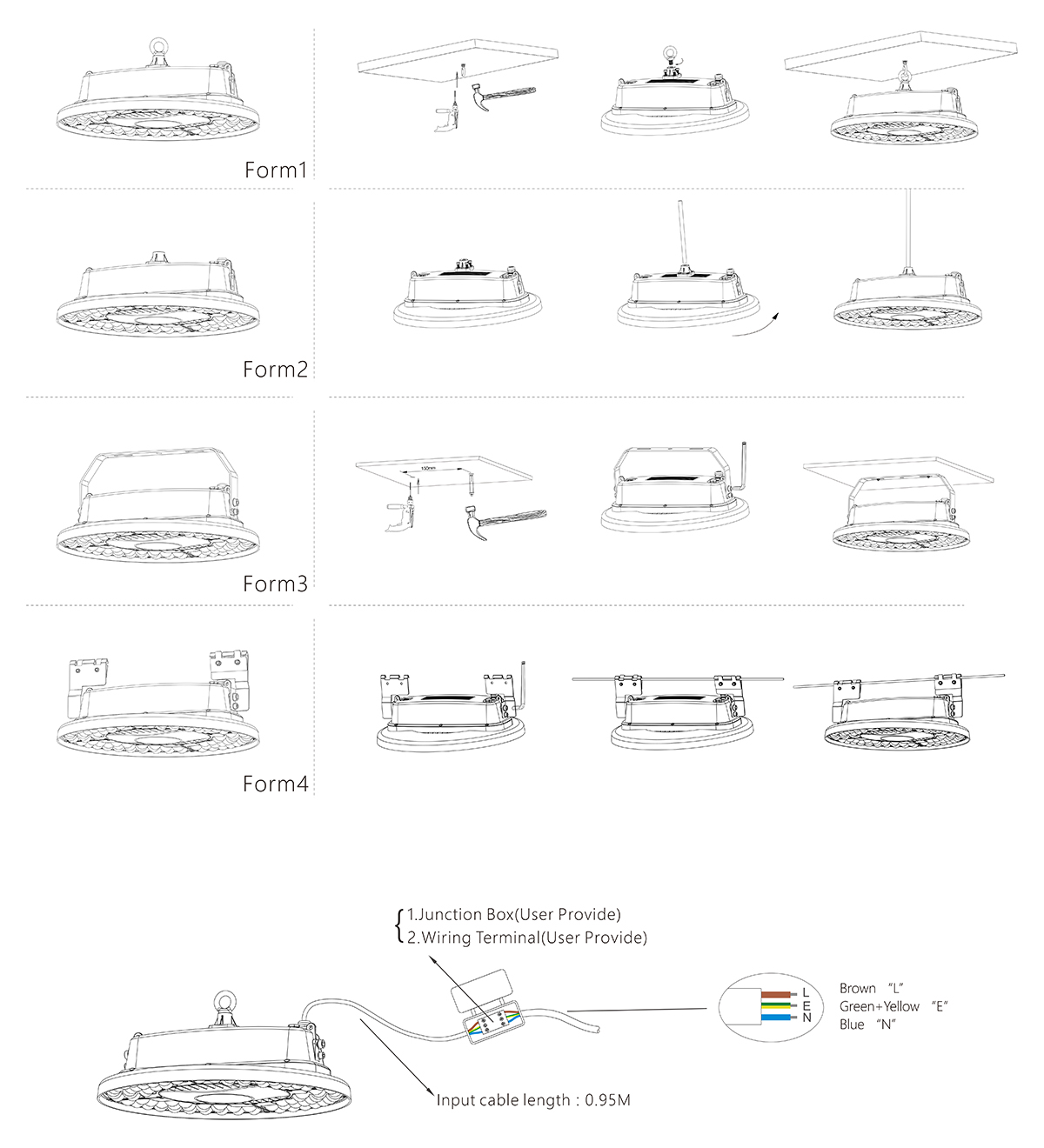

Installation


Important Note: Please ensure the power is off before operation. Installation must be performed by skilled electricians familiar with the requirements and proper installation methods of the LED luminaire. To avoid damage or hazards, the external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be discarded. The light source contained in this luminaire should only be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
