GDB SERIES
2025
110 lm/w 50W/60W 90*75°
GDB series led garden lights Simple appearance design, high stability. IP66 protection level and solid aluminum shell can withstand extreme weather and water impact. Tool-free maintenance opening for easy maintenance. Suitable for parks, villa courtyards, residential areas, both sides of the road, billboards, commercial pedestrian streets, tourist attractions, industrial parks, city squares, stations, high-speed railways, airports and other types of station squares, museums, exhibition halls, stadiums, Lighting in city squares and other places.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 110 lm/w |
|---|---|---|
| 30 (Optional values) | 3300 | |
| XJ-GDB*W-* | 40 (Optional values) | 4400 |
| 50 (Typical values) | 5500 | |
| XJ-GDB60W-* | 60 | 6600 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEAN WELL
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
WW(3000K)(Optional) Dw(5000k)(Optional)
Light Efficiency：110±5% Lm/W
Beam Angle：90*75°
Housing：Aluminum Alloy
Surge Protection：10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color：Tiefschwarz (RAL 9005)

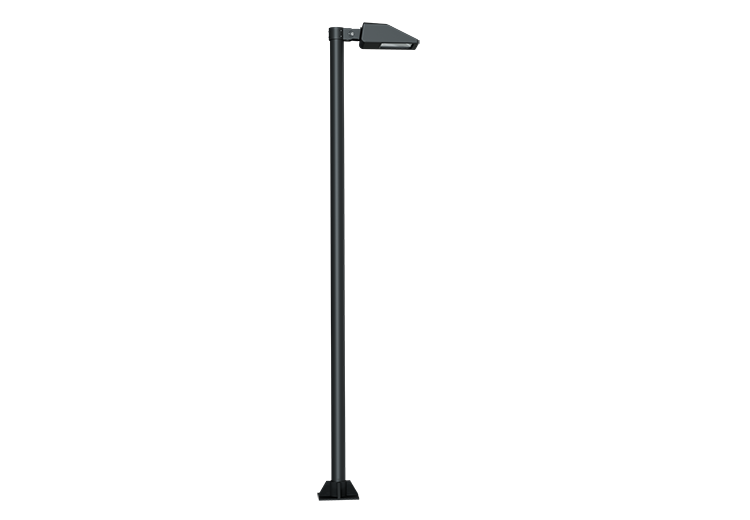

Dimension
Accessories
Installation
Note :
Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall only be replaced by a qualified person;
