TPA SERIES
2025
165-175lm/w 30W/60W/75W 60°/ 90°/ 270°

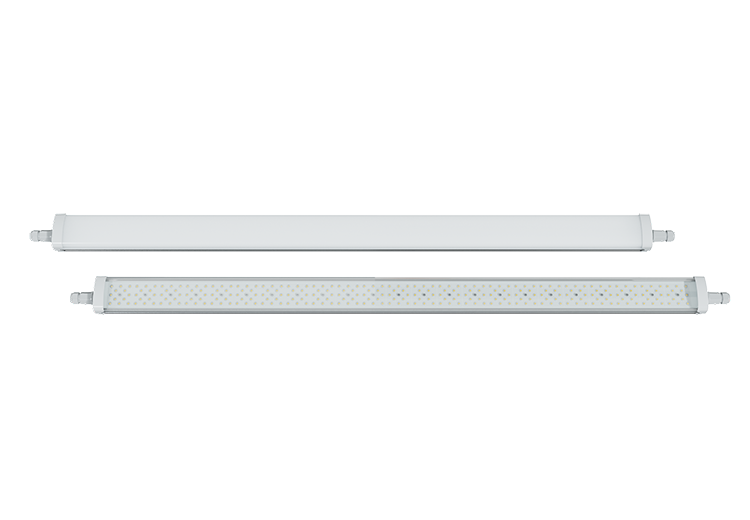

TPA SERIES LED Tri-proof lamp is equipped with an optical lens, the light effect is much higher than the traditional tri-proof lamp, and the hole-free sealing design prevents corrosion, dust, dirt, insects, moisture and bacteria. The tool-free terminal design makes installation more convenient, and with the induction function and emergency lighting, it is better suitable for lighting in various places, such as factory workshops, underground parking lots, subways, cold storages, shopping malls, supermarkets, textile factories, anti-corrosion and other places.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous flux 145-155lm/w ( 270° ) 165-175lm/w ( 60°/ 90° ) |
|---|---|---|
| XJ-TPA30W | 30W | 4350-4650 4950-5250 |
| XJ-TPA60W | 60W | 8700-9300 9900-10500 |
| XJ-TPA75W | 75W | 10875-11625 12375-13125 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：200-240V 50/60Hz
Brand of LED Driver：TRIDONIC
Light Source：2835
CRI Range：Ra>80
CCT Range：WW(3000K) NW(4000K) CW(5700K)
Light Efficiency：145-175±5% Lm/W
Beam Angle：60°/90°/270°
Housing：Aluminum Alloy+PC
Waterproof：IP66 & IK10
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color：White Aluminum ( RAL 9006 )
Dimension
Accessories

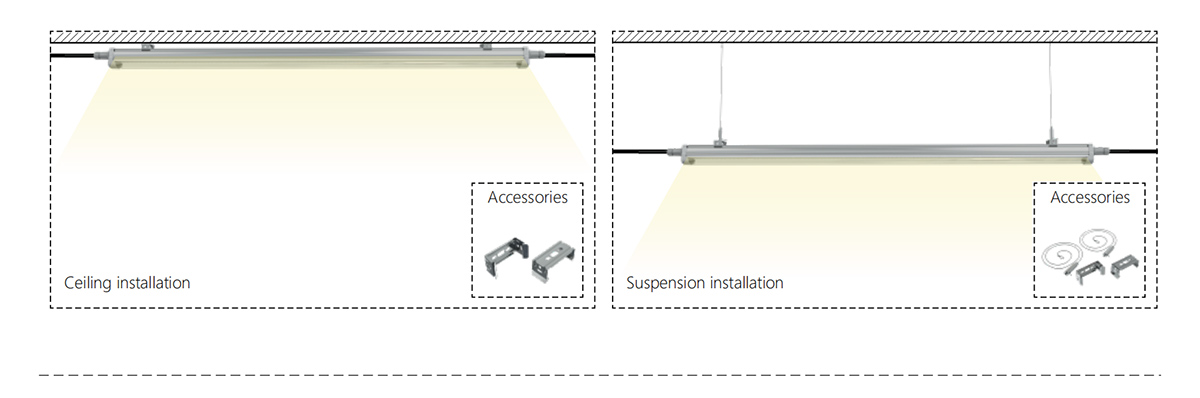

Installation
Note :
Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;
