FLE SERIES
2023

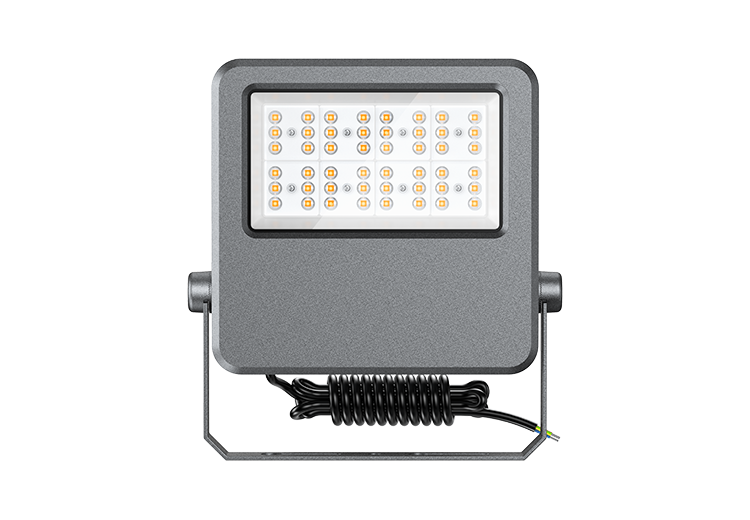

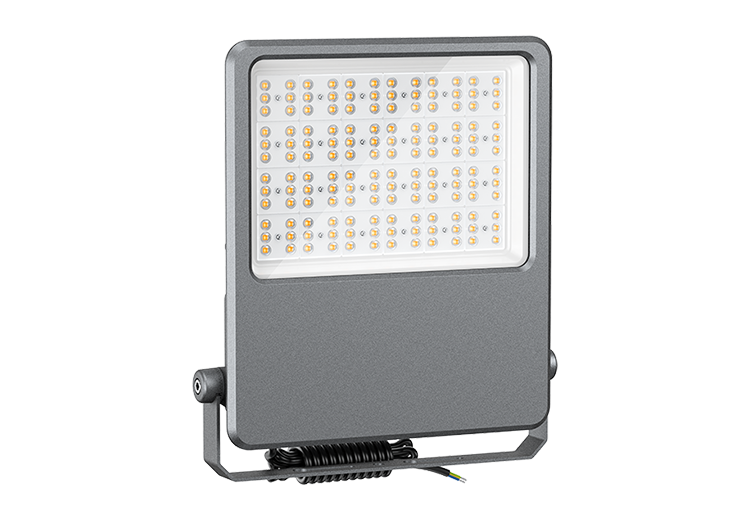

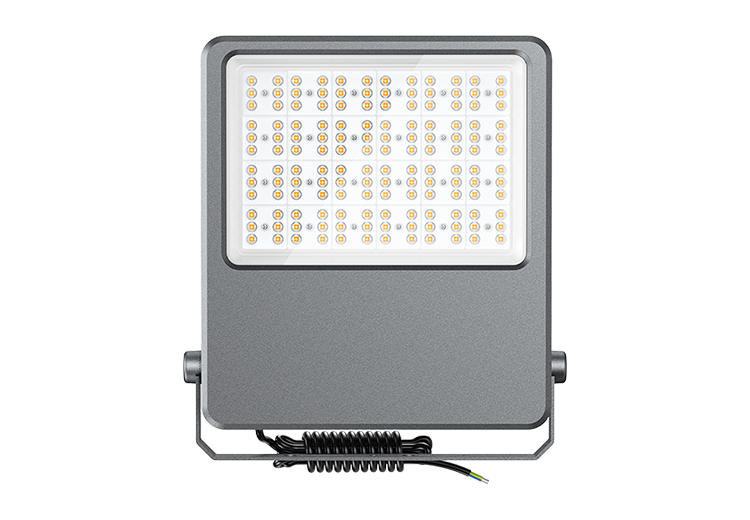

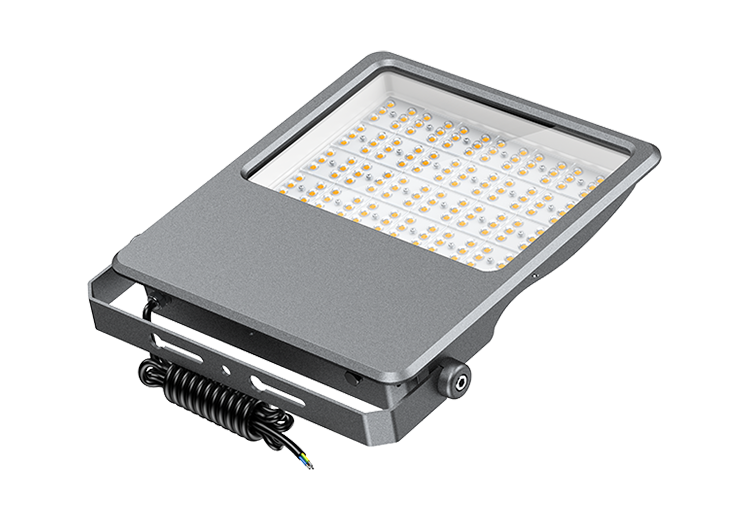

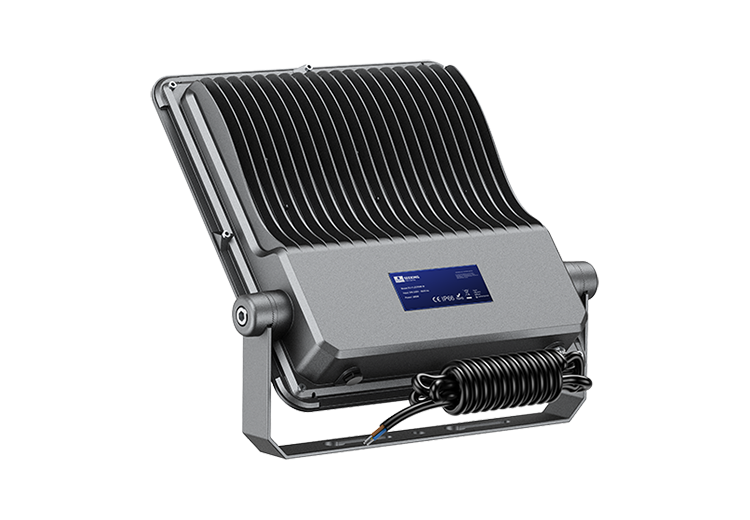

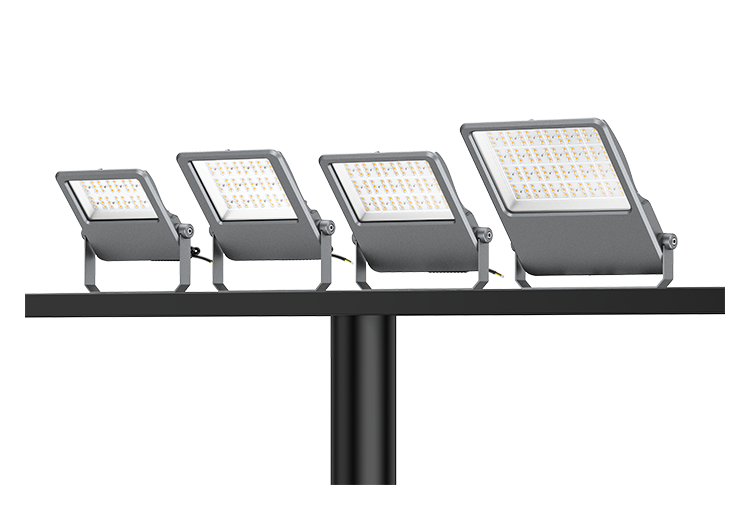

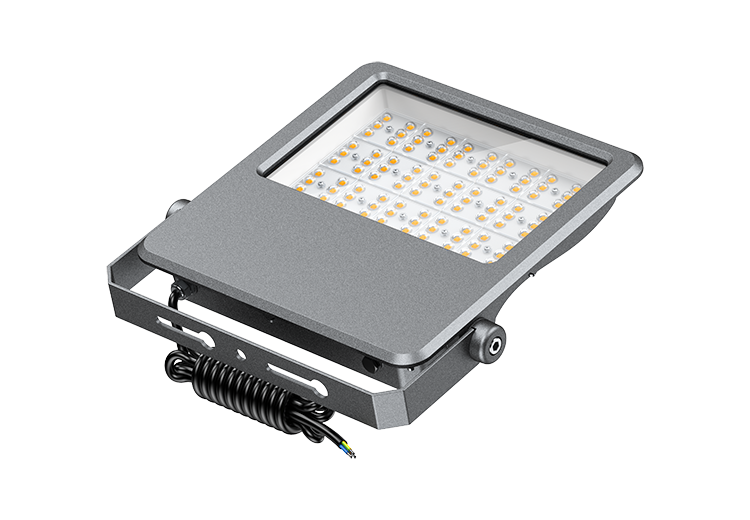

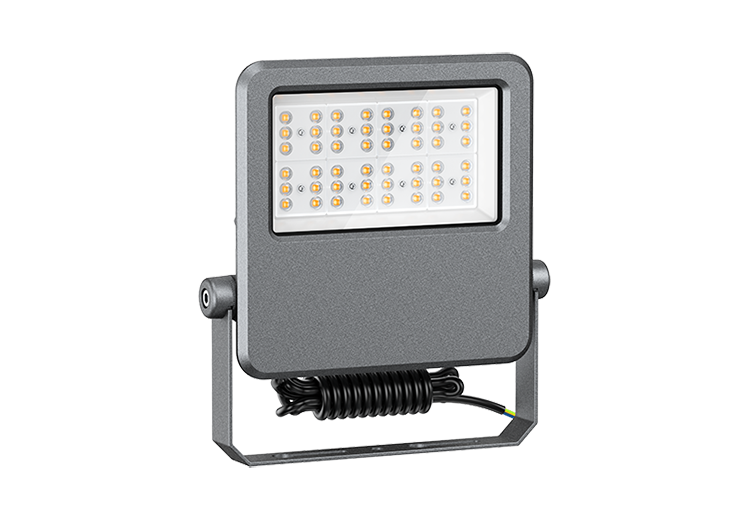

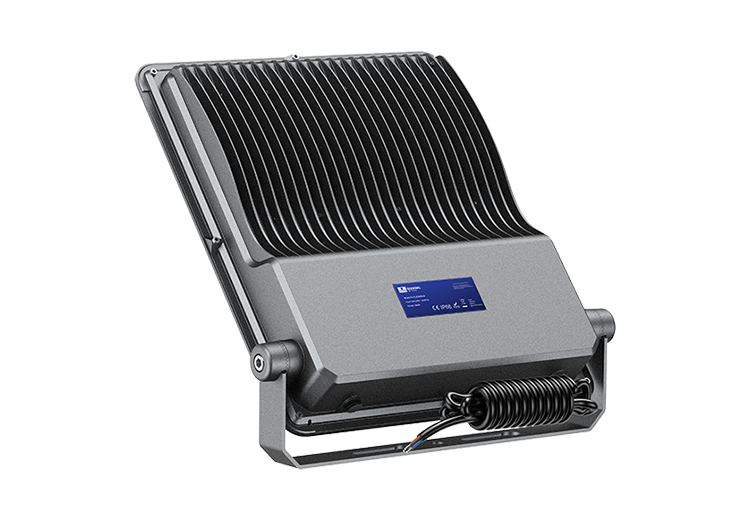

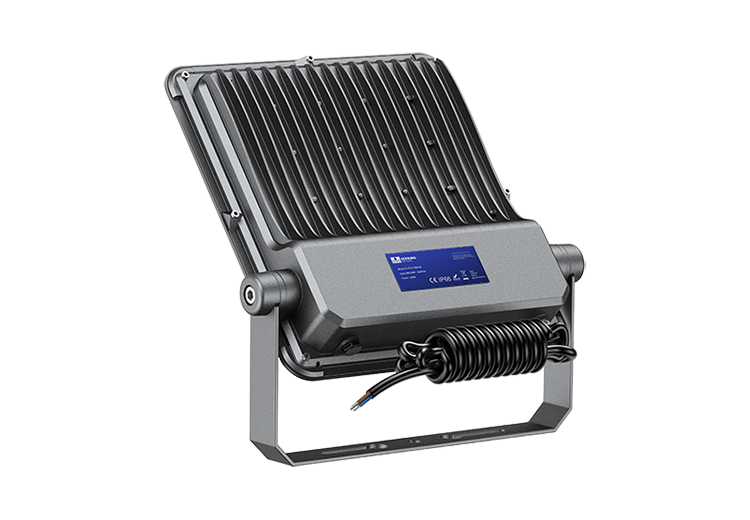

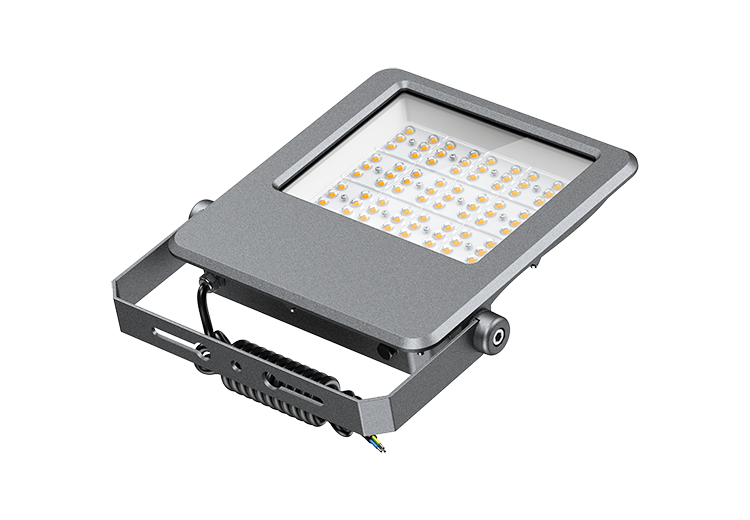

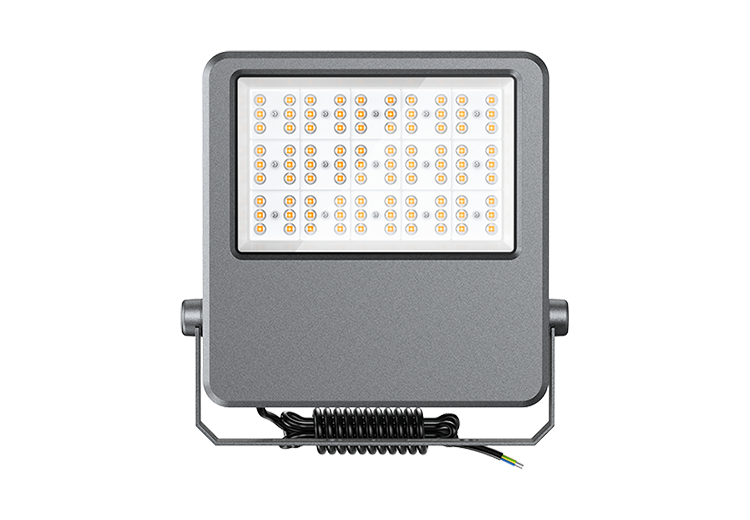

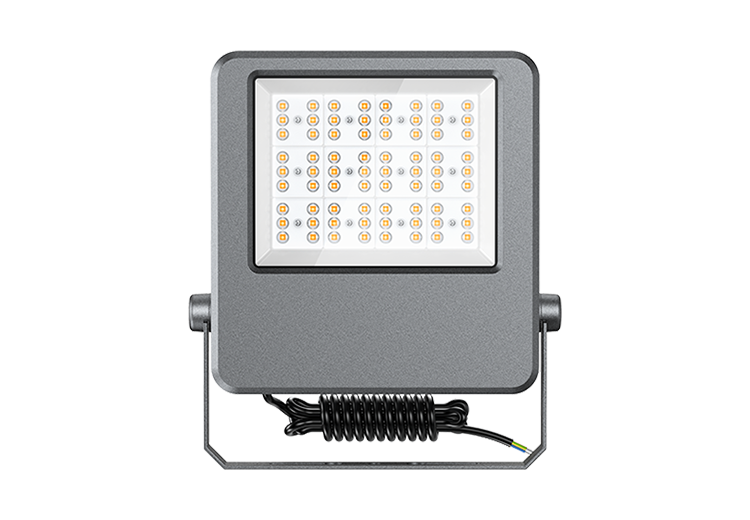

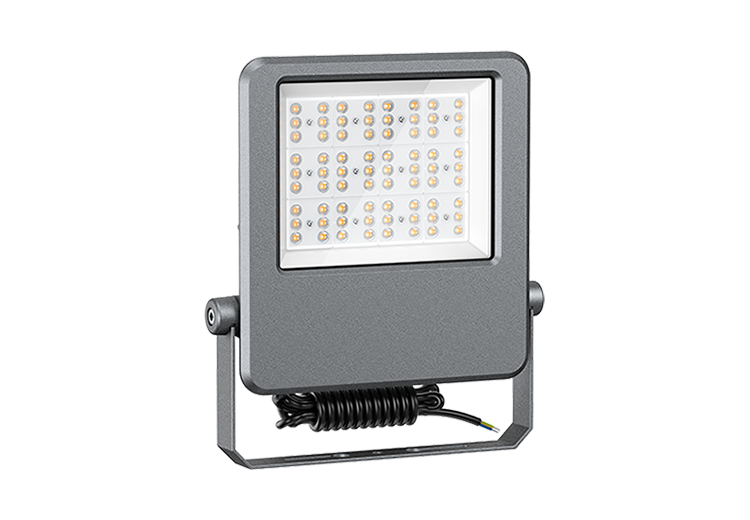

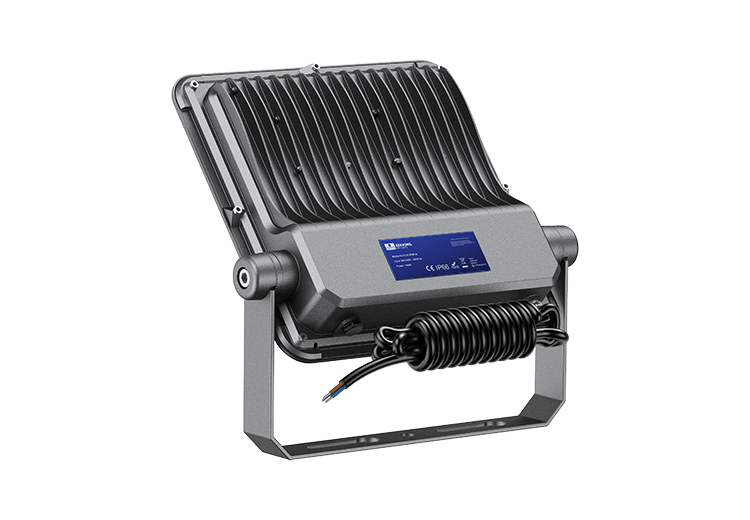

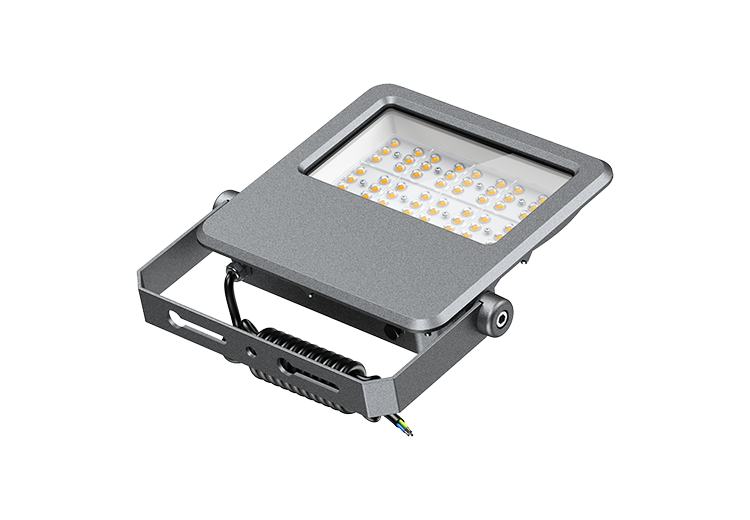

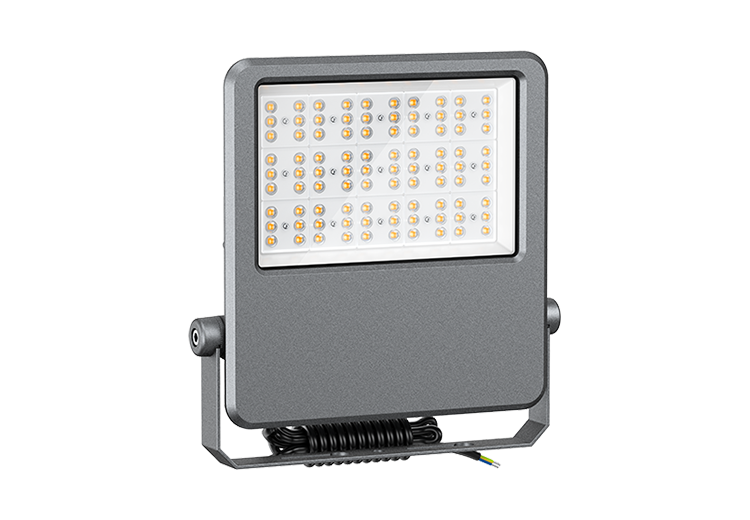

The Gemini series flood light offers versatile solutions for recreational sports and area lighting, featuring multiple light distribution angles to meet various lighting needs. It is equipped with tempered glass and polycarbonate optical lenses, achieving a protection level of up to IK08 and IP66. The constant current power driver ensures an L80B20 rating, providing over 100,000 hours of use.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux (LM)
XJ-FLE100W-L10017000
XJ-FLE100W-M10016000
XJ-FLE150W-L15025500
XJ-FLE150W-M15024000
XJ-FLE200W-L20034000
XJ-FLE200W-M20032000
XJ-FLE300W-L30051000
XJ-FLE300W-M30048000

Above lumens based on 4000K Ra:80

-L For LlFUD Driver

-M For MEAN WELL Driver

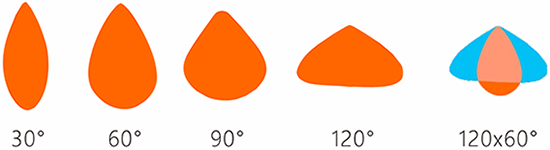

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:LIFUD / MEAN WELL

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency:160/170±5% Lm/W

Beam Angle:30° / 60° / 90° / 120° / 120×60°

Housing:Aluminum Alloy

Waterproof:IP66 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB, UKCA, SAA


Dimension

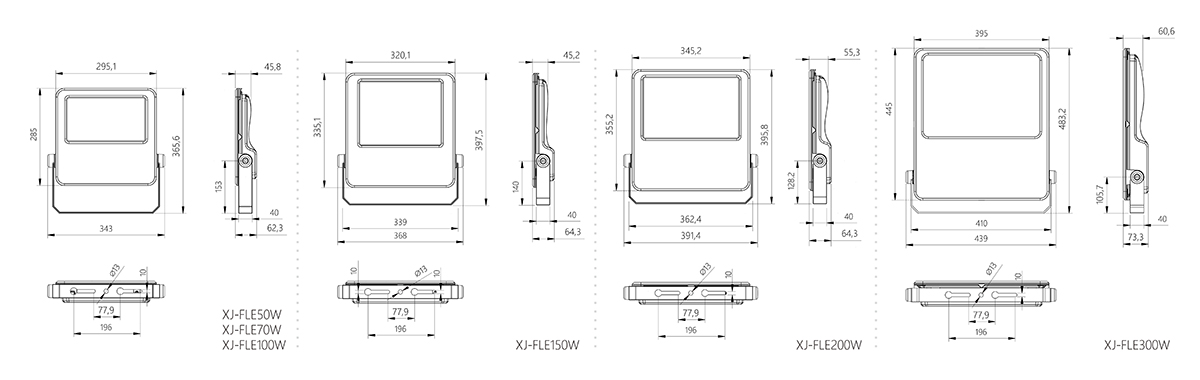

FLE SERIES LED Flood Light Dimension

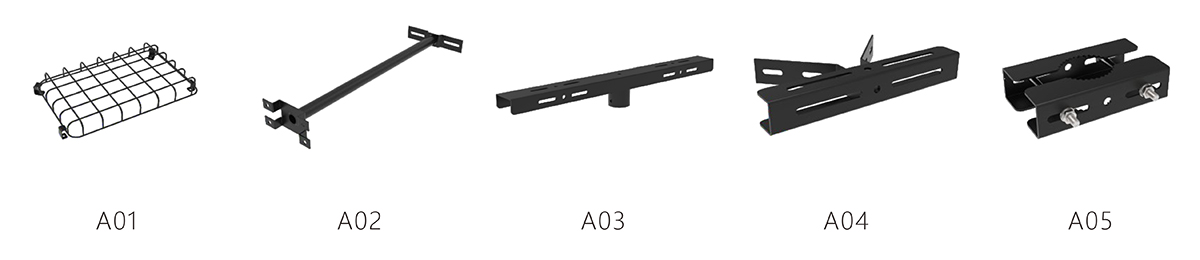

Accessories

accessoriesimagematerialdimensionsweightaccessory use
Optional
(only 200W&300W)
A01sus304350x218x58mm
400x271×57mm
0.35kg
0.40kg
Protective the glass cover
OptionalA02carbon steel686x160x75mm2.1kgWall extension installation
OptionalA03carbon steel850x103x80mm3.7kgInstallation on top of the lamp pole
OptionalA04carbon steel350x174x50mm1.0kgWall corner mounted lamp
OptionalA05carbon steel200x100x50mm1.3kgRound pole-mounted lamp

Installation

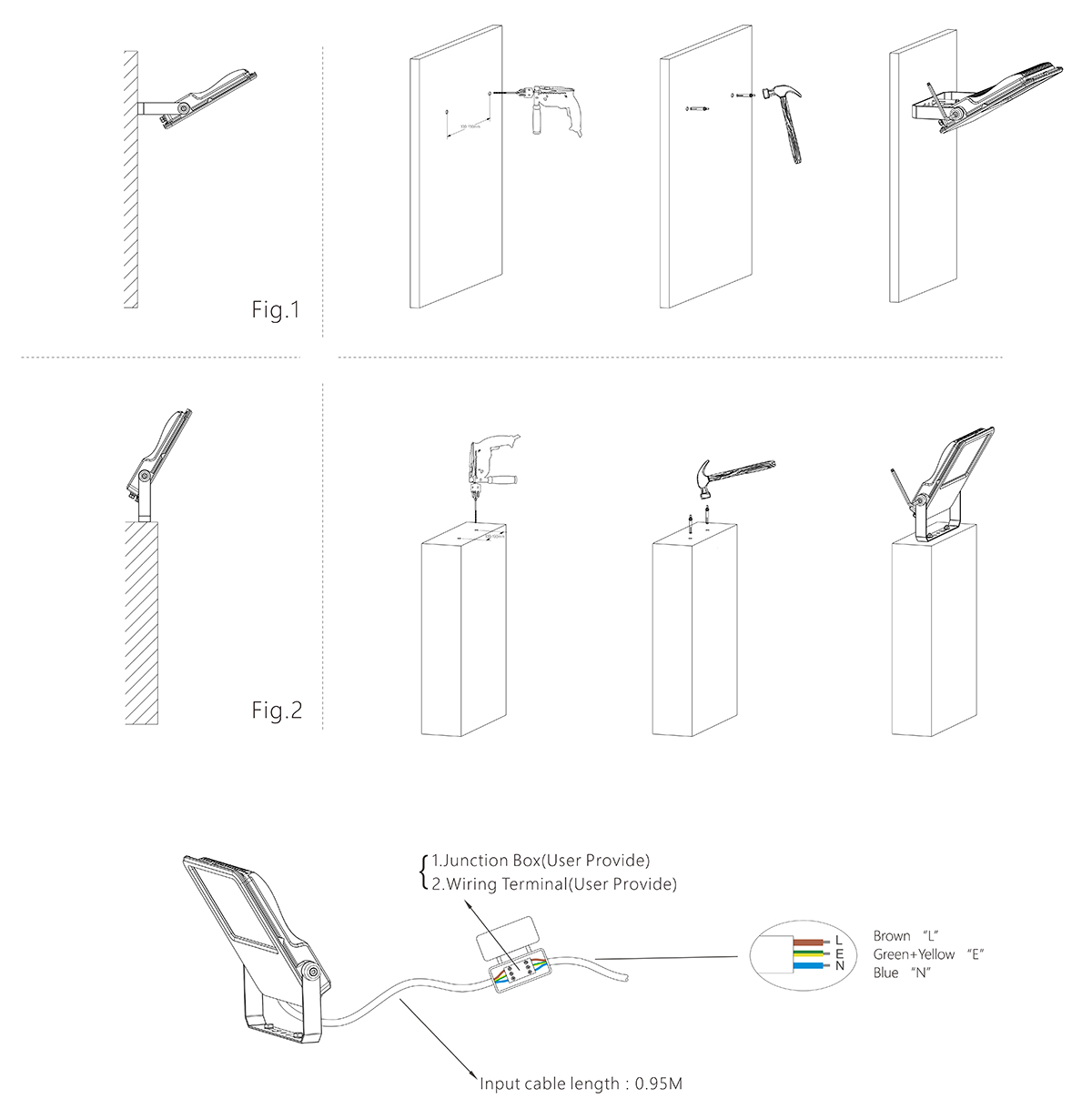

Installation Steps

1. Punch holes: Drill two holes with a spacing of 100-190mm.

2. Install setscrews: Secure the setscrews in the holes.

3. Attach lamp: Place the lamp bracket into the setscrews and tighten securely.

4. Connect power: Attach the power cable.

5. Adjust and clean: Adjust the lamp angle and clean the fixture.



Note: Ensure the power is off before operation. Installation must be performed by skilled electricians familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be destroyed.

The light source contained in this luminaire should only be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
