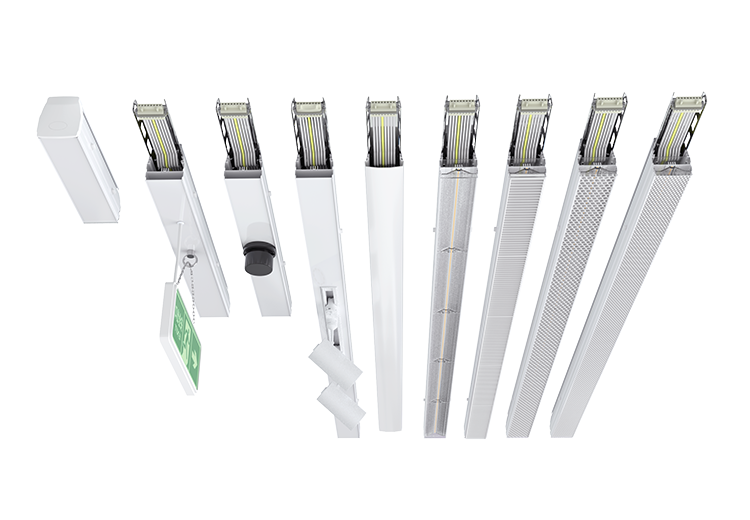

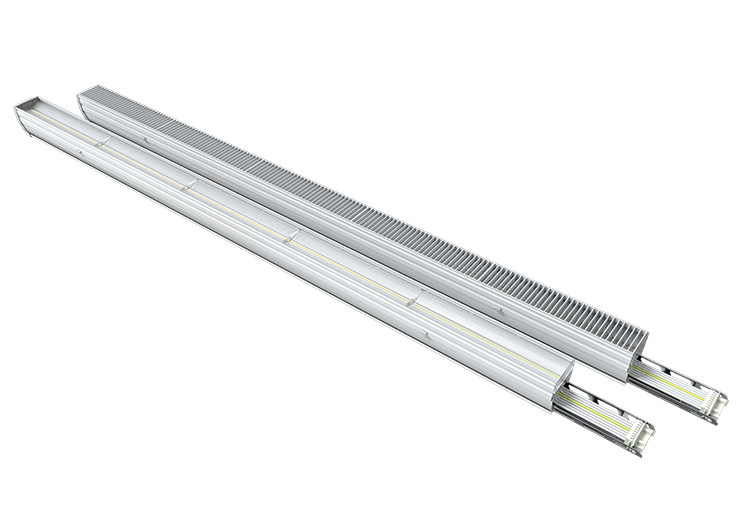

HLS SERIES
2024

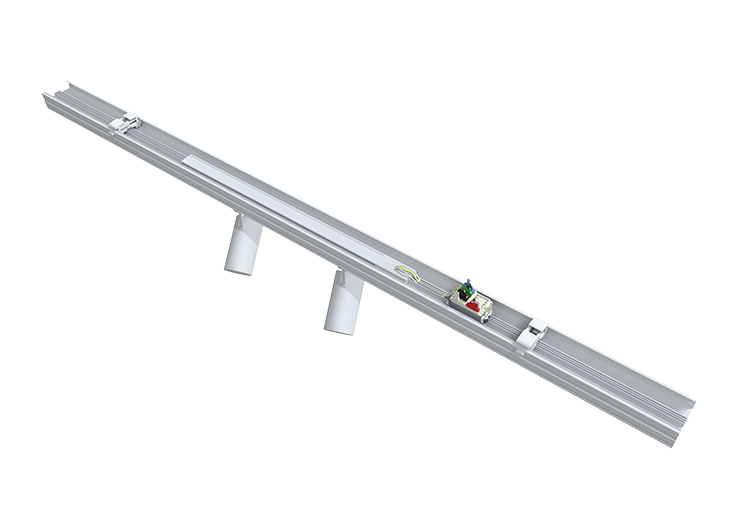

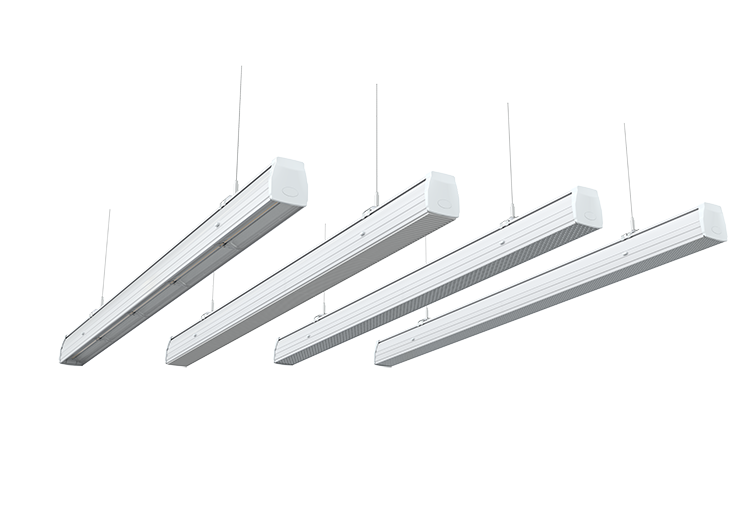

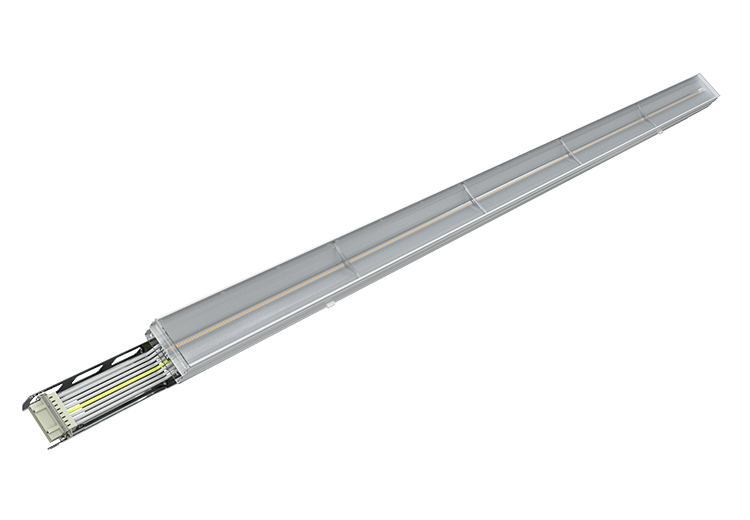

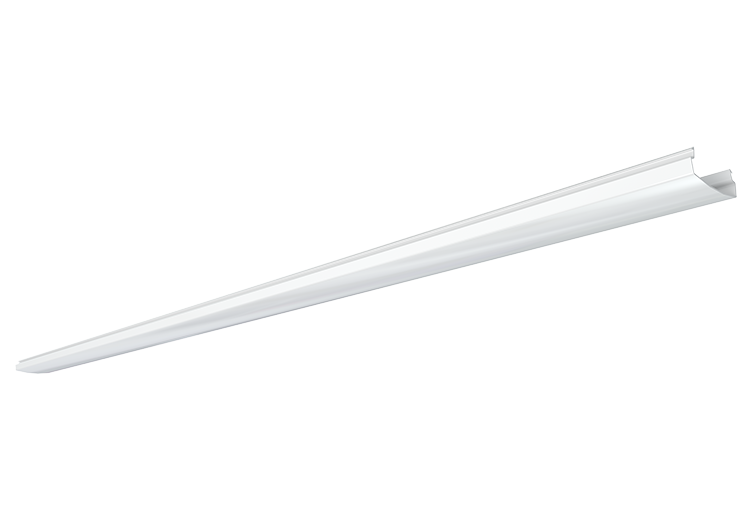

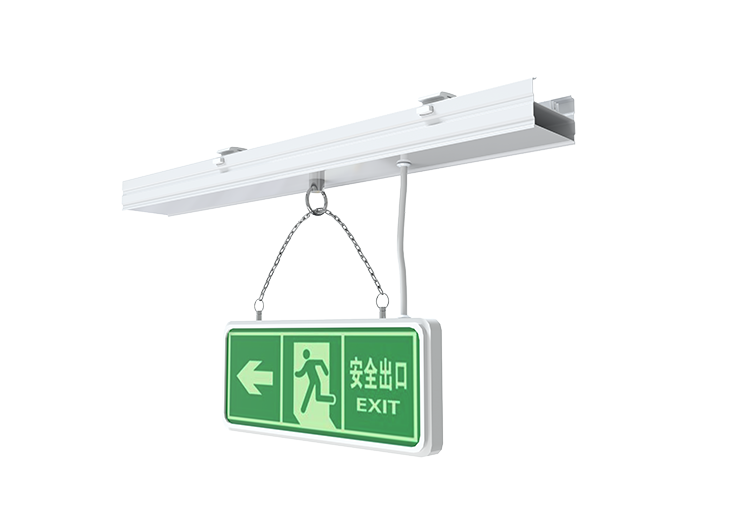

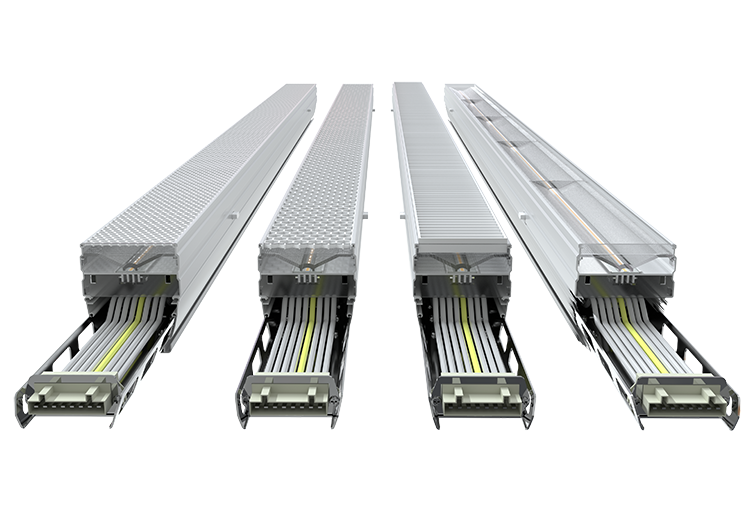

The HLS series trunking system is ideal for recreational indoor high-ceiling applications, industrial facilities, chemical plants, exhibition centers, shopping malls, warehouses, supermarkets, retail stores, factories, stadiums, toll stations, and more.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 180lm/W |
|---|---|---|
| XJ-HLS6980-0630 | 19/23/28/32 | 5760 |
| XJ-HLS6980-1260 | 33/41/50/59 | 10620 |
| XJ-HLS6980-1575 | 52/59/66/74 | 13320 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：200-240V 50/60Hz
Brand of LED Driver：TRIDONIC
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：180±5% Lm/W(200LM/W MAX.)

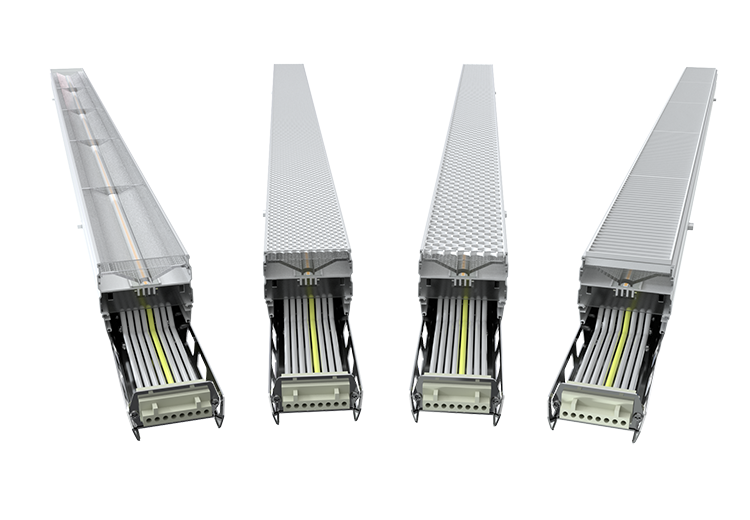

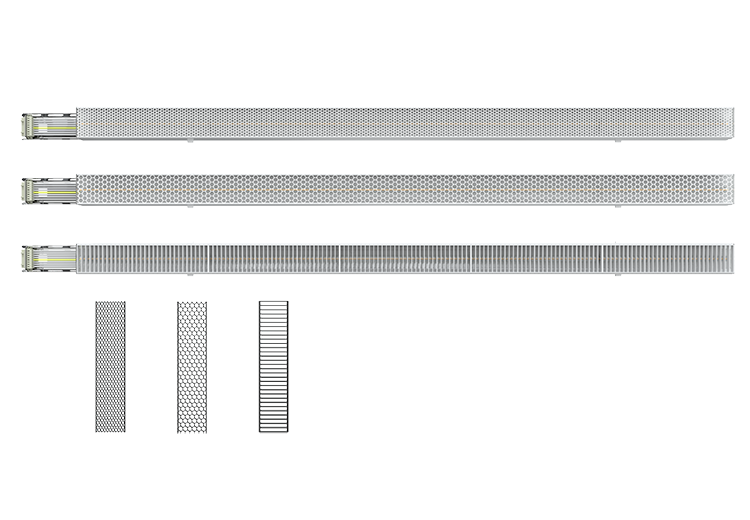

Beam Angle：30°, 60°, 90°, 120°, P25, SP25
Housing：Aluminum Alloy
Waterproof：IP40 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, ENEC, CE, CB, SAA

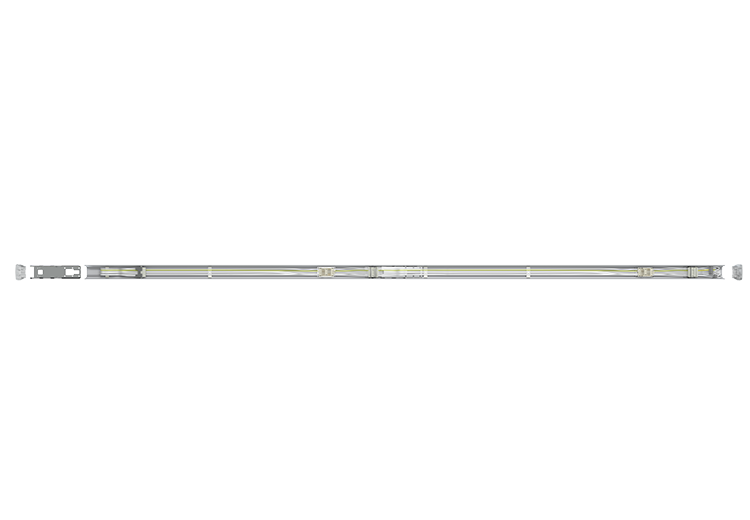

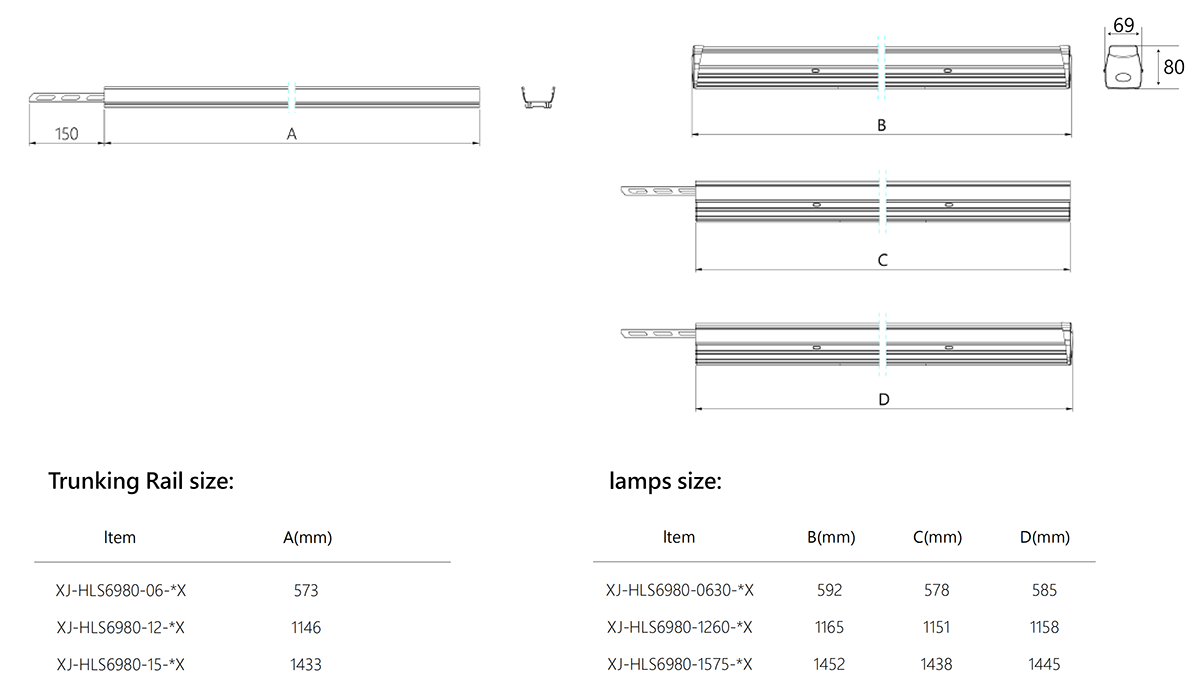

Dimension

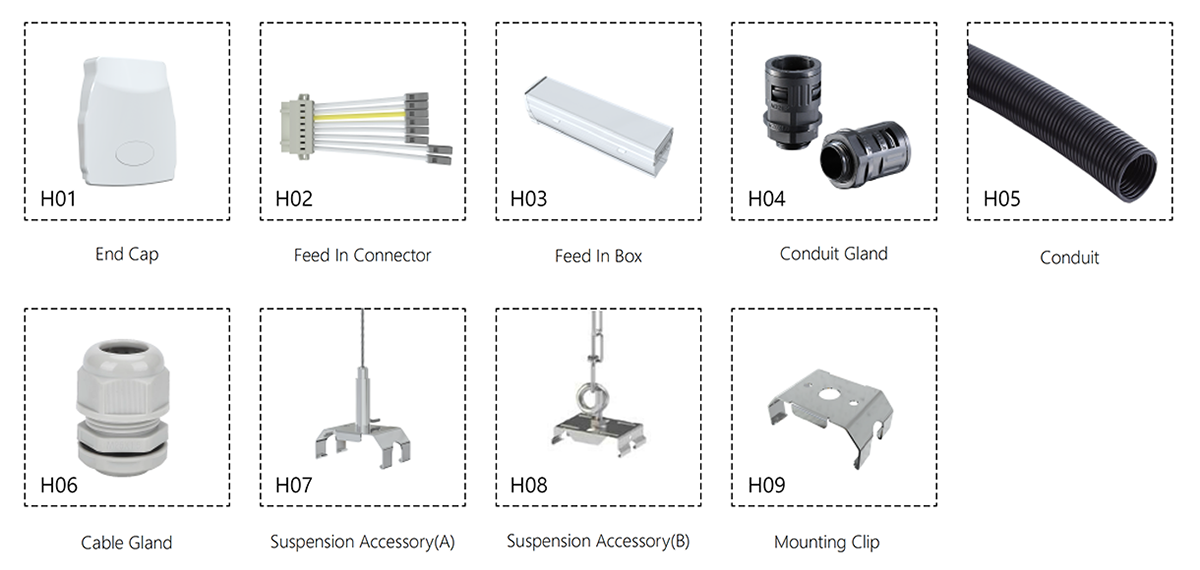

Accessories

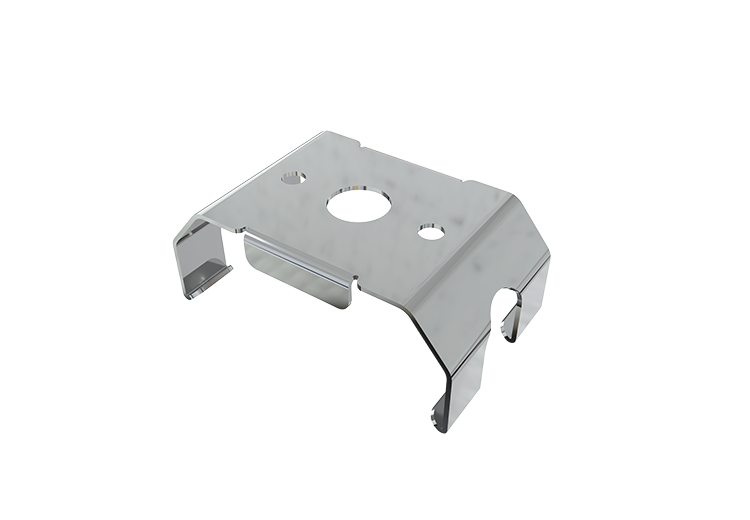

| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | H01 | / | 150×50×15mm | 0.1kg | Power Input |

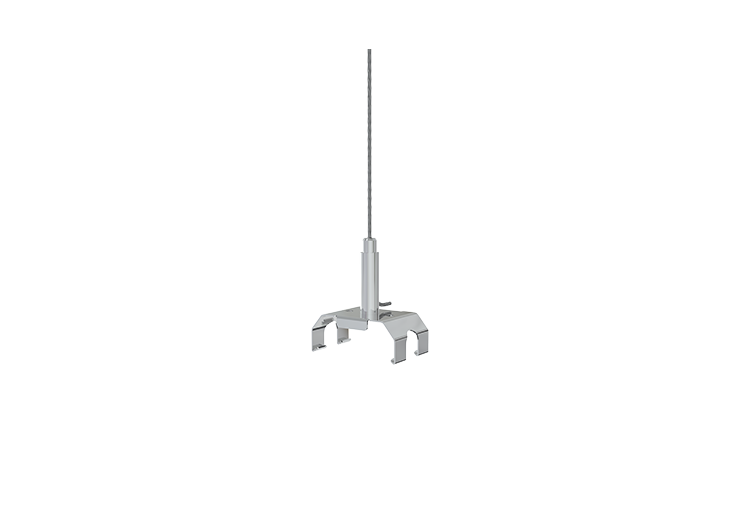

| Optional | H02 | SUS304 | ∅2.0mm×1.5m | 50g | Suspension Installation |

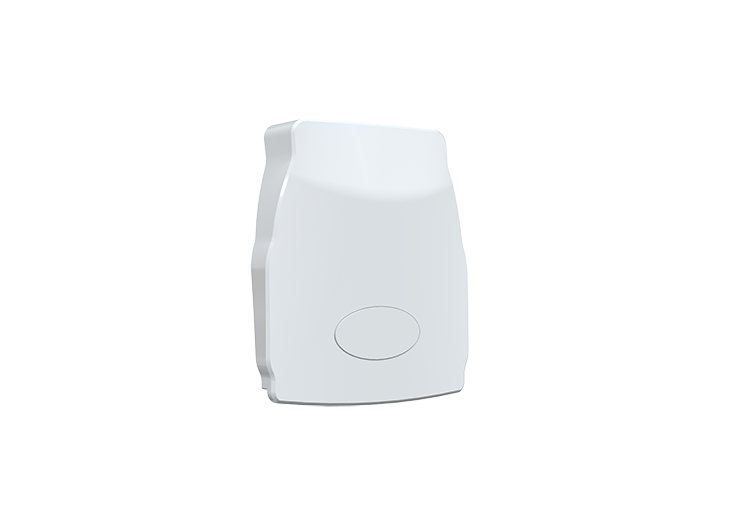

| Optional | H03 | PC | 85×72×23.5mm | 20g | System Closing |
| Optional | H04 | carbon steel | 300×300×75mm | 2.5kg | L-shaped Connection |
| Optional | H05 | carbon steel | 600×300×75mm | 3.0kg | T-shaped Connection |
| Optional | H06 | carbon steel | 600×450×75mm | 4.0kg | X-shaped Connection |

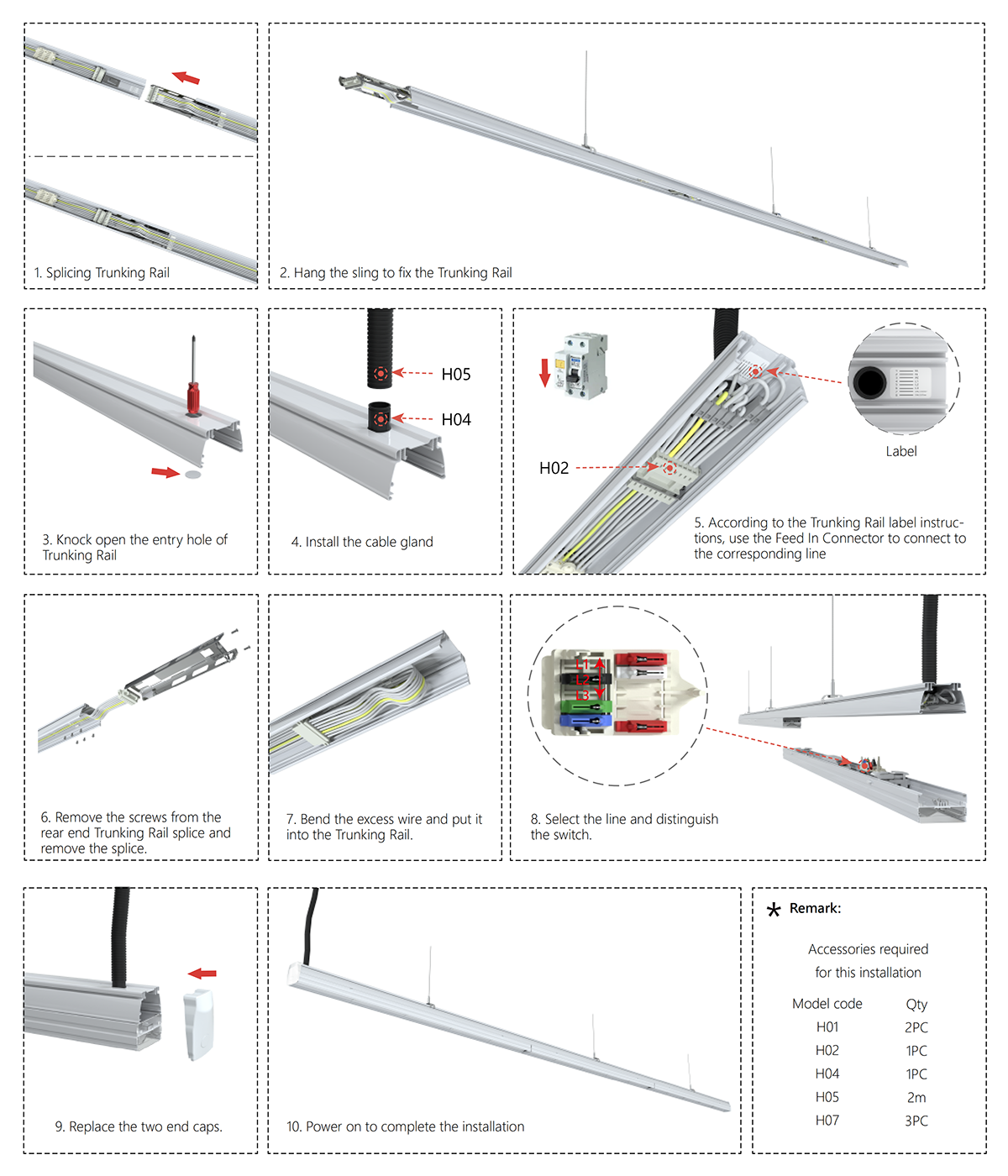

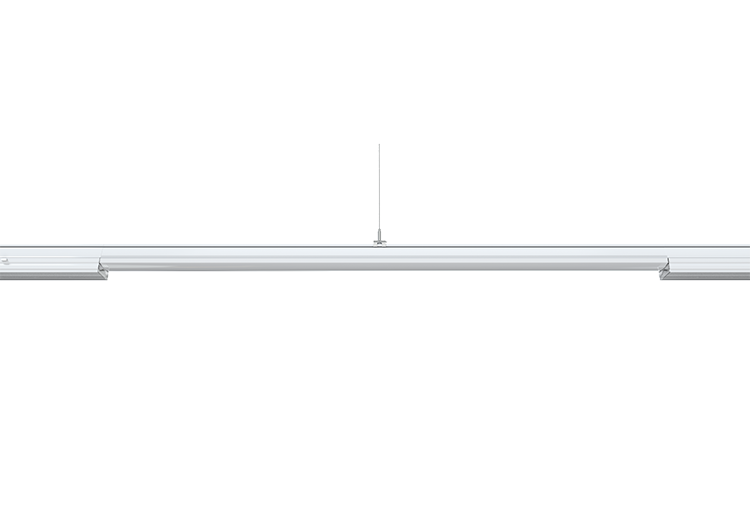

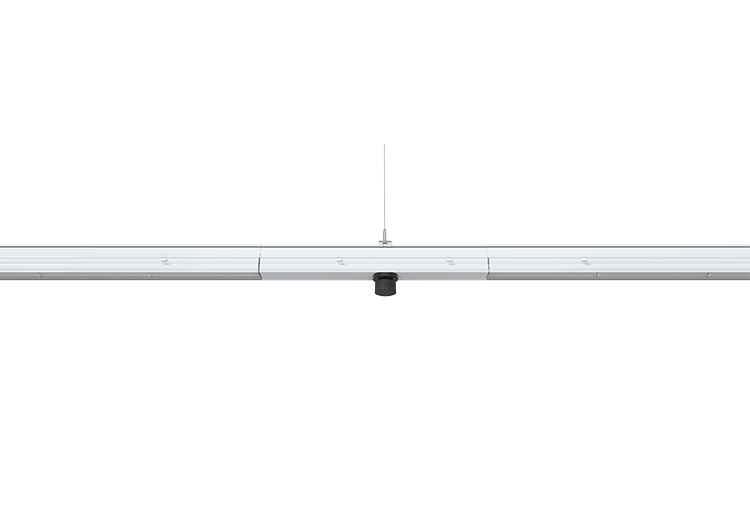

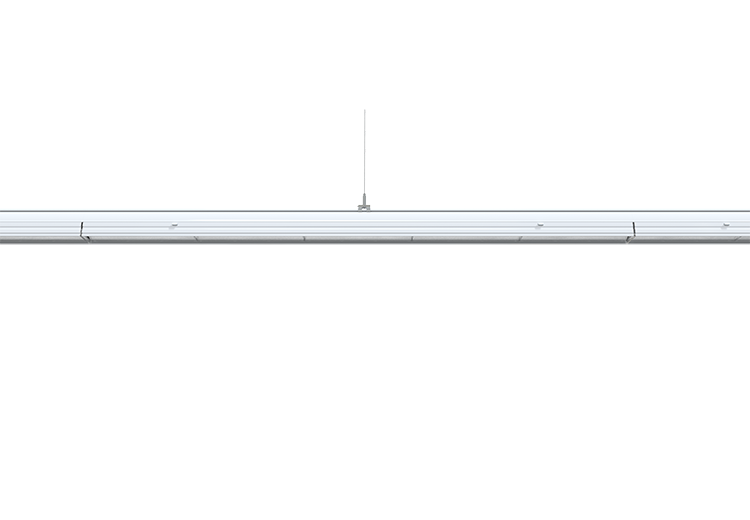

Installation
Video
Short Video
Download
Please contact our sales to obtain password
