HB13(GLK) SERIES
2023

UGR < 19 CIE190:2010

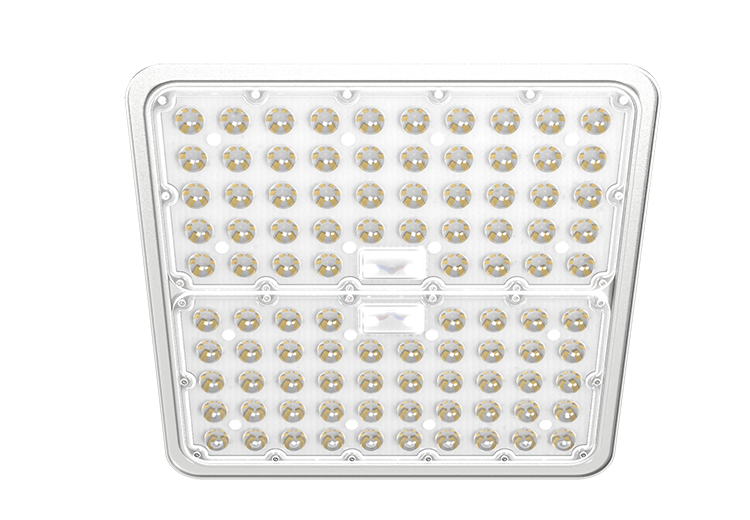

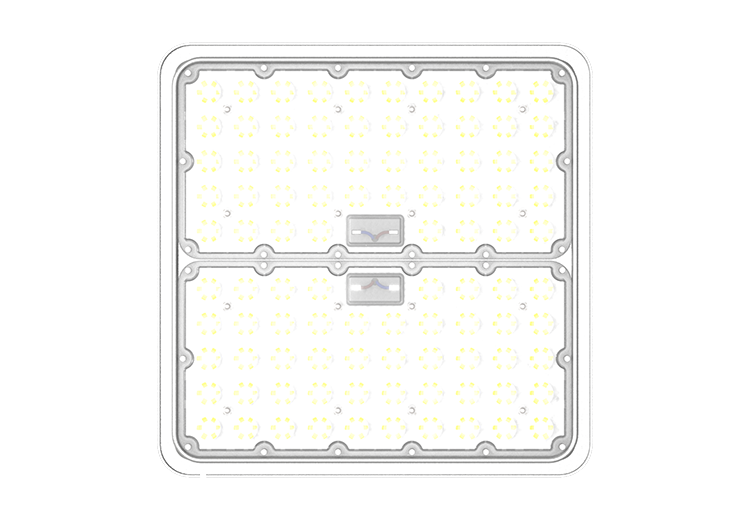

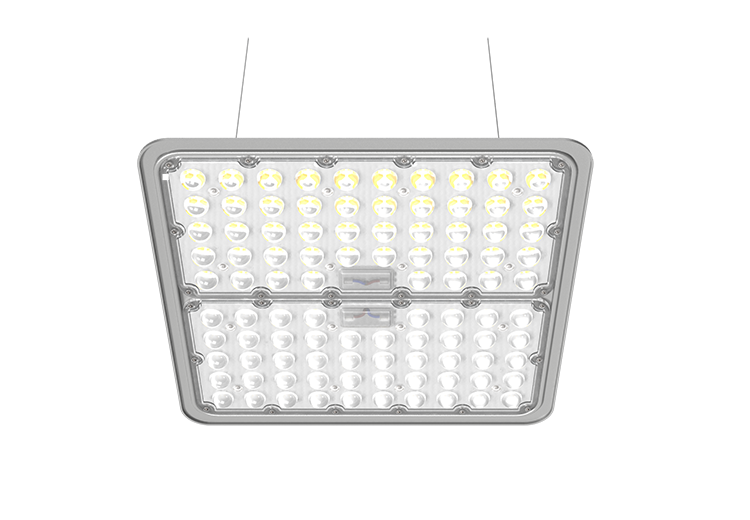

HB13(GLK) high bay light provides a solution for Indoor sports venues, airport waiting rooms, car sales centers, large supermarkets, exhibition centers. Low glare design, glare value UGR<19 (CIE190:2010). Protection level up to IK09 and IP69K. Constant Current Power Driver, L80B20 can reach more than 100,000 hours.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 170lm/W
XJ-GLK80W8013600
XJ-GLK100W10017000
XJ-GLK150W15025500
XJ-GLK200W20034000
XJ-GLK240W24040800

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:MEANWELL / MOSO

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency:170±5% Lm/W

Beam Angle:90°

Housing:Aluminum Alloy

Waterproof:IP69K & IK09

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB, ETL, FCC, SAA


Dimension

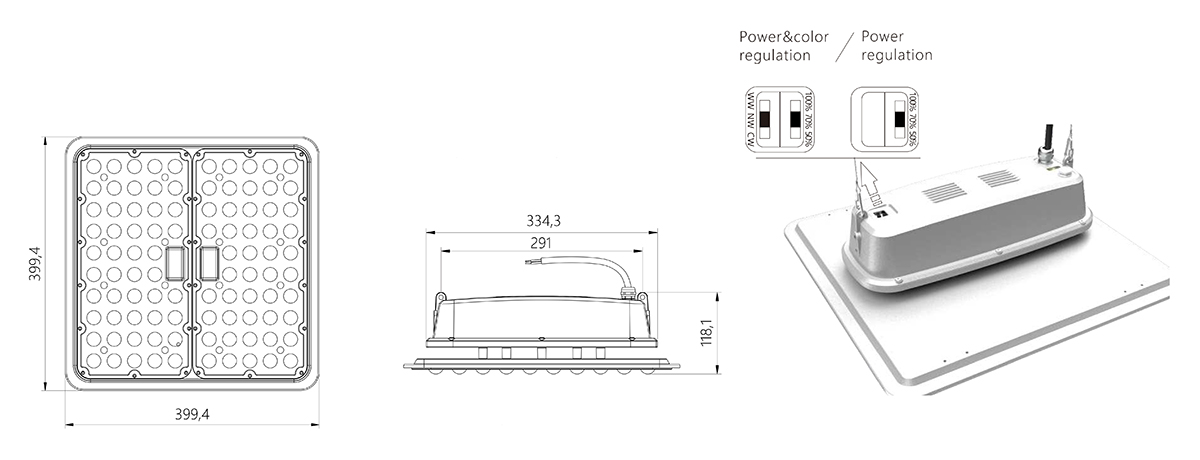

HB13(GLK) SERIES LED High Bay Light Dimension

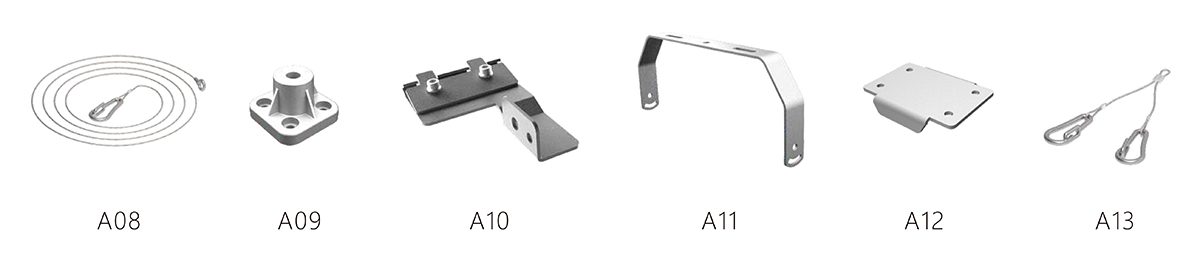

Accessories

accessoriesimagematerialdimensionsweightaccessory use

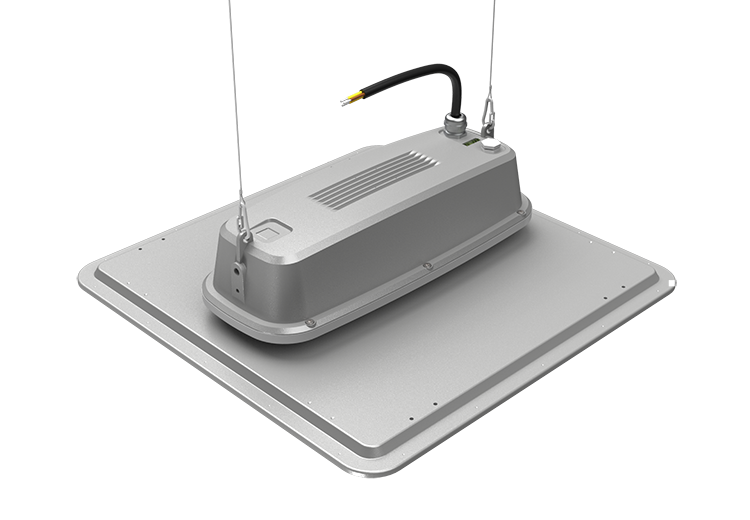

OptionalA08SUS304∅ 2.0x1000mm0.04kgSuspension installation

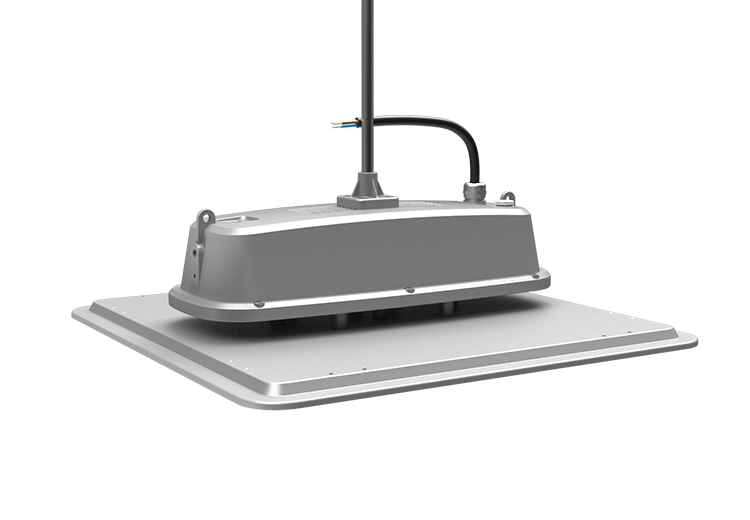

OptionalA09ADC12M100.05kgHang pipe installation
OptionalA10carbon steel76.5×25×115mm0.15kgSteel wire installation
OptionalA11carbon steel318×133×32mm0.38kgBracket installation
OptionalA12carbon steel66×50×10mm0.06kgFixation of lamp bridging
OptionalA13SUS304∅ 2.0×300mm0.04kgSuspension installation

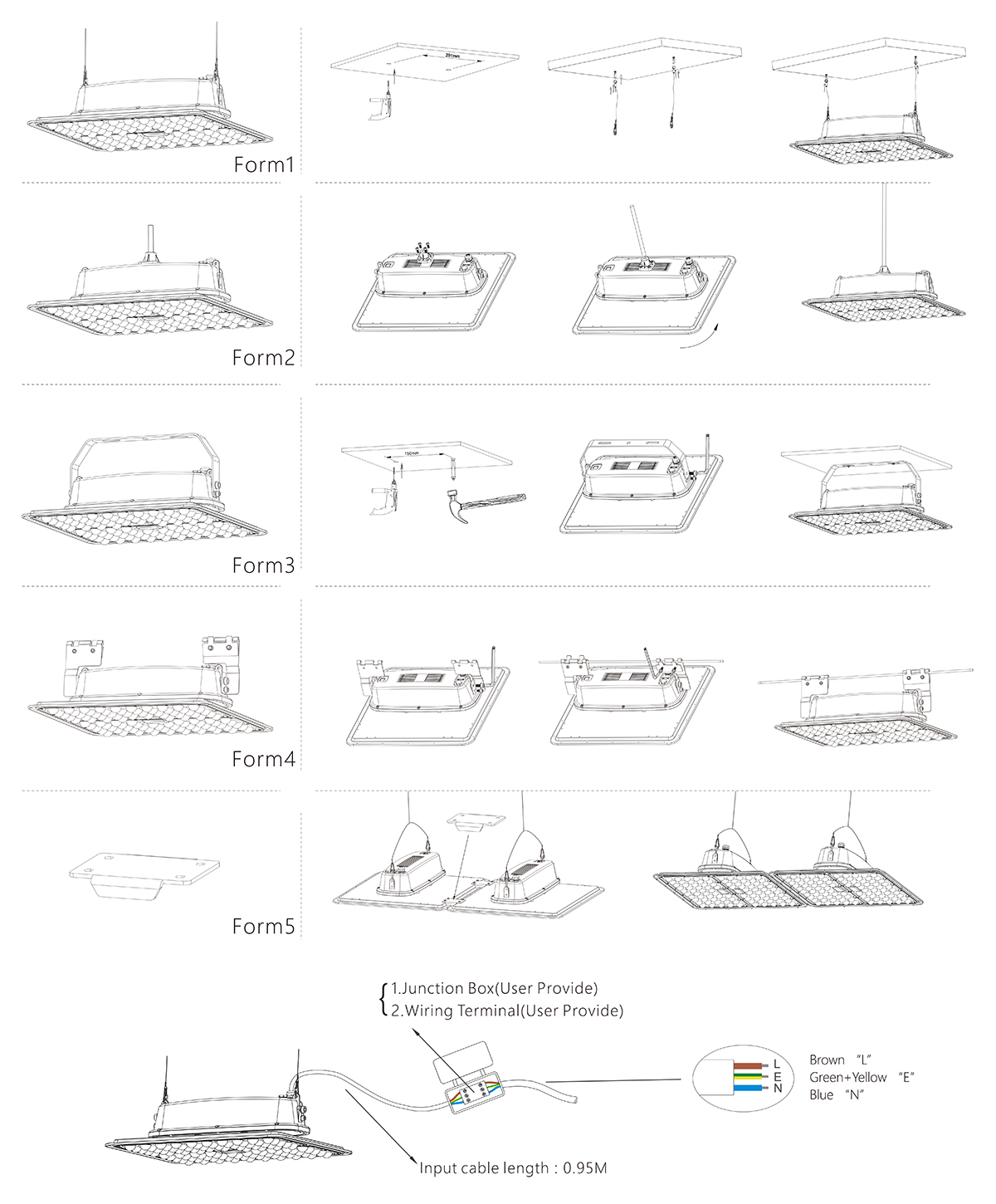

Installation


Note: Please make sure the power is off before operation. Installation must be performed by skilled electricians who are familiar with the requirements and proper installation methods of the LED luminaire. To avoid damage or hazard,  the external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed. The light source contained in this luminaire shall only be replaced by a qualified person.
