STC SERIES
2023

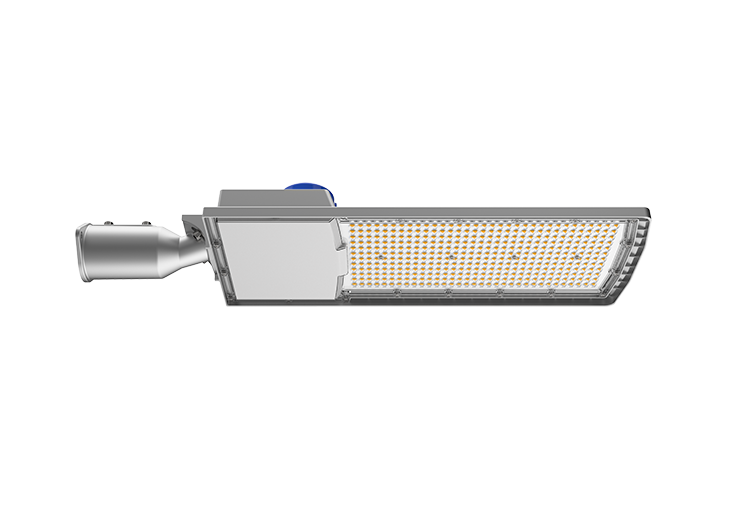

The STC series LED streetlights feature a sleek design and a die-cast aluminum alloy heat sink with an integrated lens, making them highly cost-effective. They come with a ±15° adjustable installation arm that supports both horizontal and vertical installations. With 170lm/w @ RA>80, IP65 rating, and 6-10KV SPD, they offer reliable performance and easy maintenance. These streetlights are an excellent choice for various road lighting requirements, including main roads, branch roads, residential areas, gardens, and more.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 170lm/W
XJ-STC30W305100
XJ-STC50W508500
XJ-STC100W10017000
XJ-STC150W15025500
XJ-STC200W20034000

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

LED Driver Brand: MOSO

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency: 170 ± 5% lm/W

Beam Angle: TPⅡM

Housing:Aluminum Alloy

Surge Protection: 10kV

Waterproof:IP66 & IK08

Lifespan (L80B20 @ 25℃): > 100,000 hours

Power Factor (PF): ≥ 0.95

THD<15%

Power Efficiency: ≥ 0.9

Certifications: CE, CB


Dimension

STC SERIES  LED Street Light Dimension

Accessories

Installation


Installation Steps:

1. Open the packaging and take out the lamp body.

2. Loosen the two Allen screws on the lamp body pivot arm and adjust to the required angle.

3. Insert the bracket hole corresponding to the shaft arm hole and fix it with the two Allen screws on the side. Please refer to the installation instructions.



Note: Ensure the power is off before operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires. To avoid damage or hazard, the external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be destroyed.

The light source contained in this luminaire should only be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
