HBC SERIES
2023

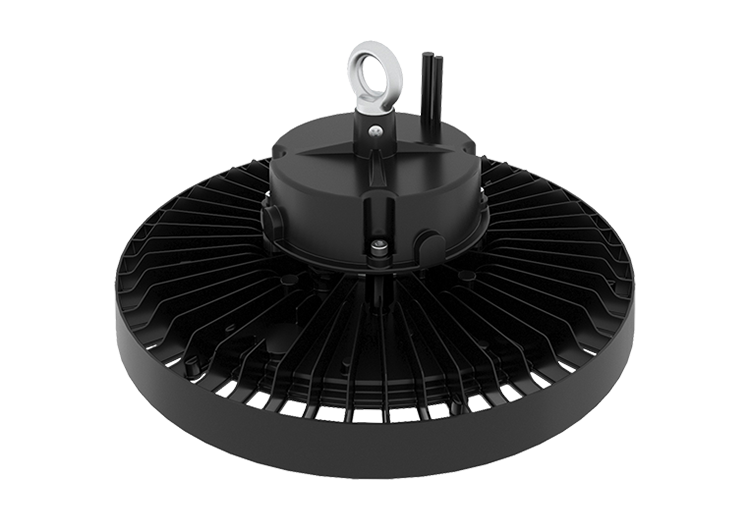

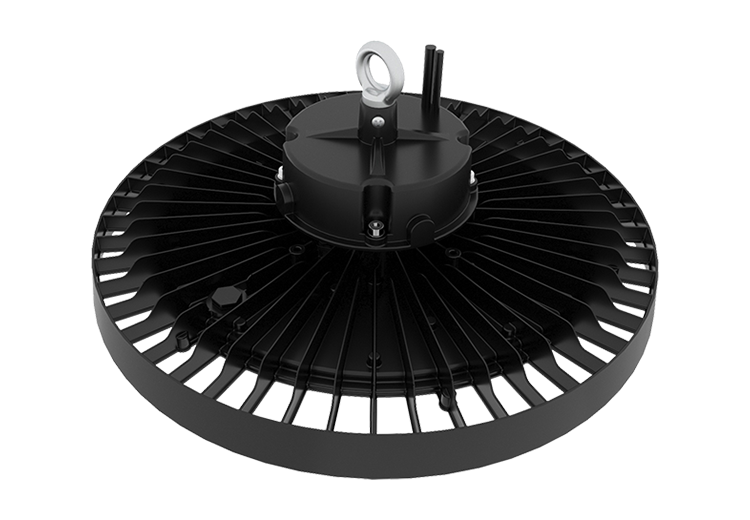

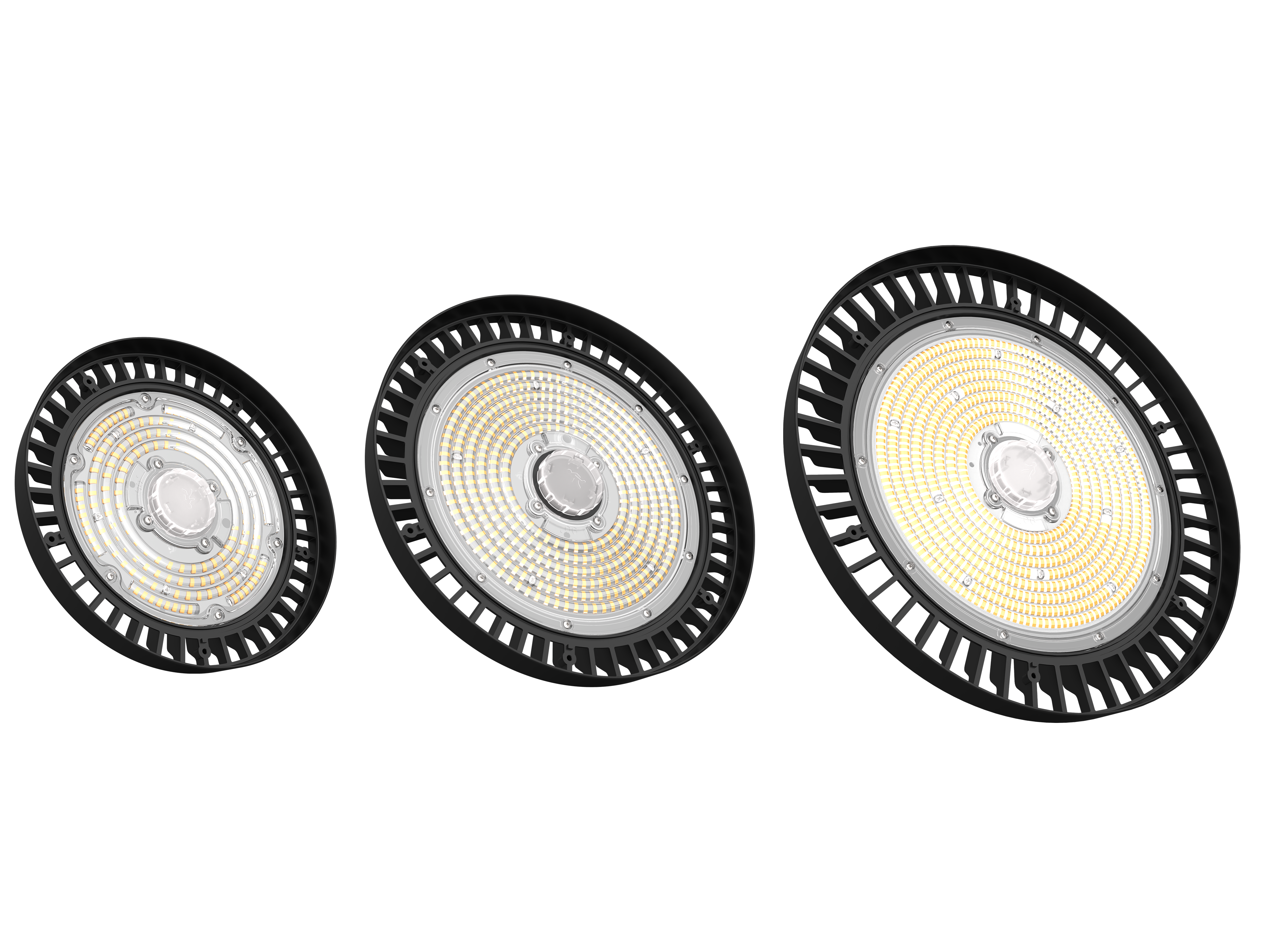

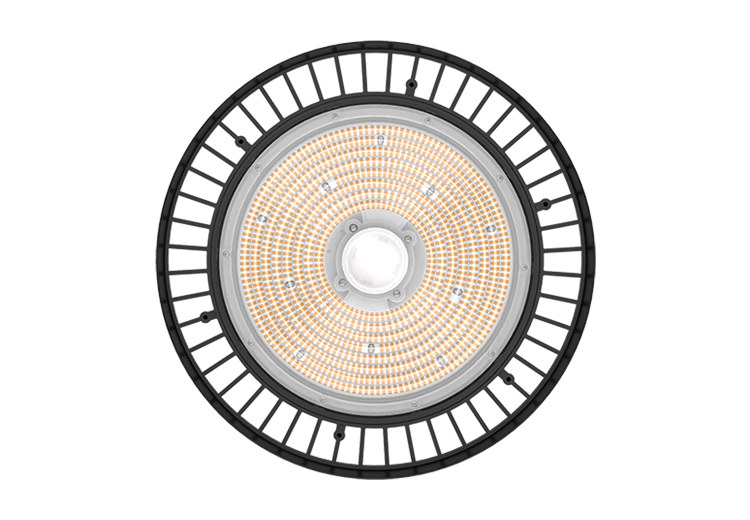

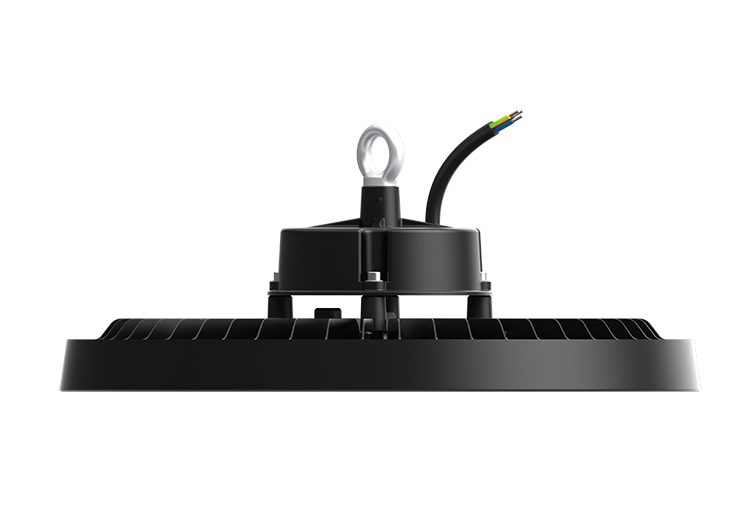

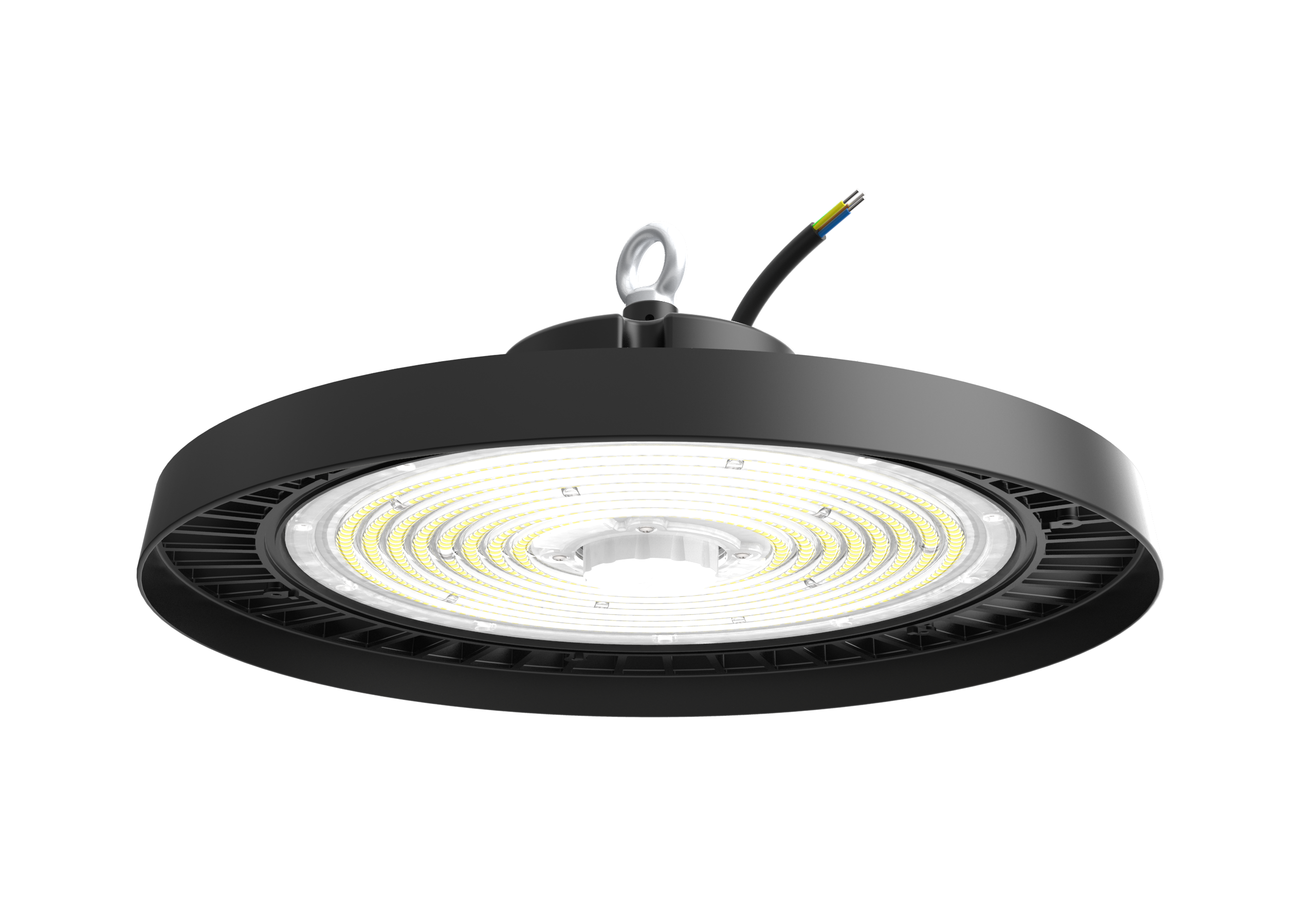

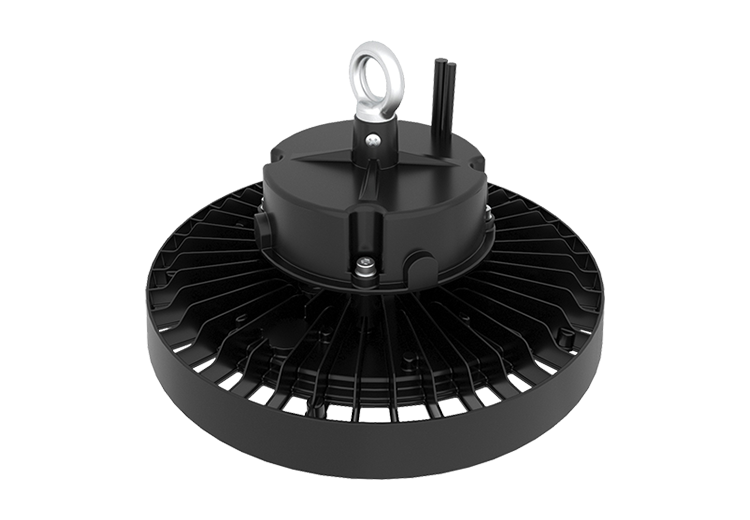

HBC series UFO high bay light have fully considered the balance between product performance and cost control from the beginning of the design. Therefore, while ensuring good heat dissipation and highlight efficiency, it brings excellent cost performance and optimal packaging volume. It uses high-quality die-casting aluminum radiator, SOSEN flicker-free driver, light efficiency up to 170lm/w at CRI>80, IP65, IK08, supports microwave motion sensor, easy plug and play, for more energy saving use.

HBC passed CE, CB certification, it is really a excellent choice for distribution, wholesale, project.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux (150lm/W) / (170lm/W)
XJ-HBC100W-*-1510015000
XJ-HBC100W-*-1710017000
XJ-HBC150W-*-1515022500
XJ-HBC150W-*-1715025500
XJ-HBC200W-*-1520030000
XJ-HBC200W-*-1720034000
XJ-HBC240W-*-1524036000
XJ-HBC240W-*-1724040800

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:SOSEN

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K) WW(3000K)(Optional) DW(5000K)(Optional)

Light Efficiency:150±5% Lm/W / 170±5% Lm/W

Beam Angle:60° / 90°

Maximum detection distance:12metre

Housing:Aluminum Alloy

Waterproof:IP65 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:CE, CB

Warranty:5 Years


Dimension

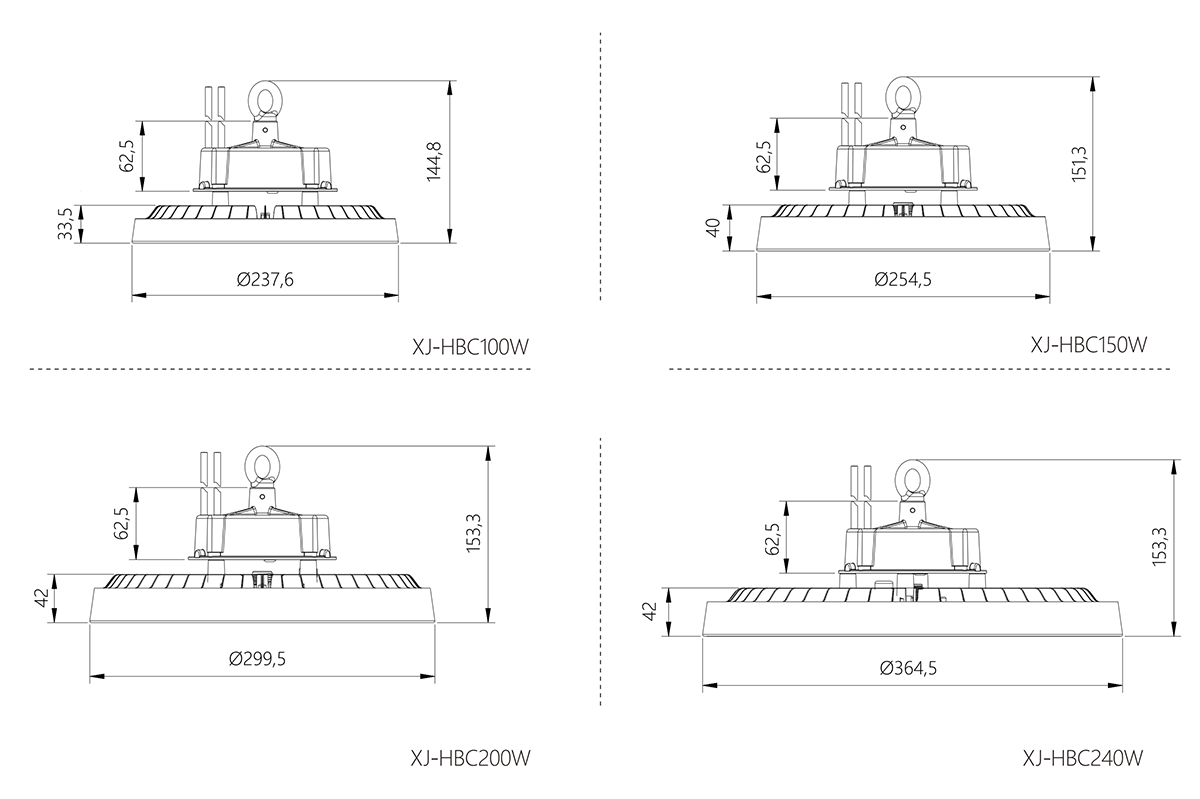

HBC SERIES LED High Bay Light Dimension

Accessories

Installation

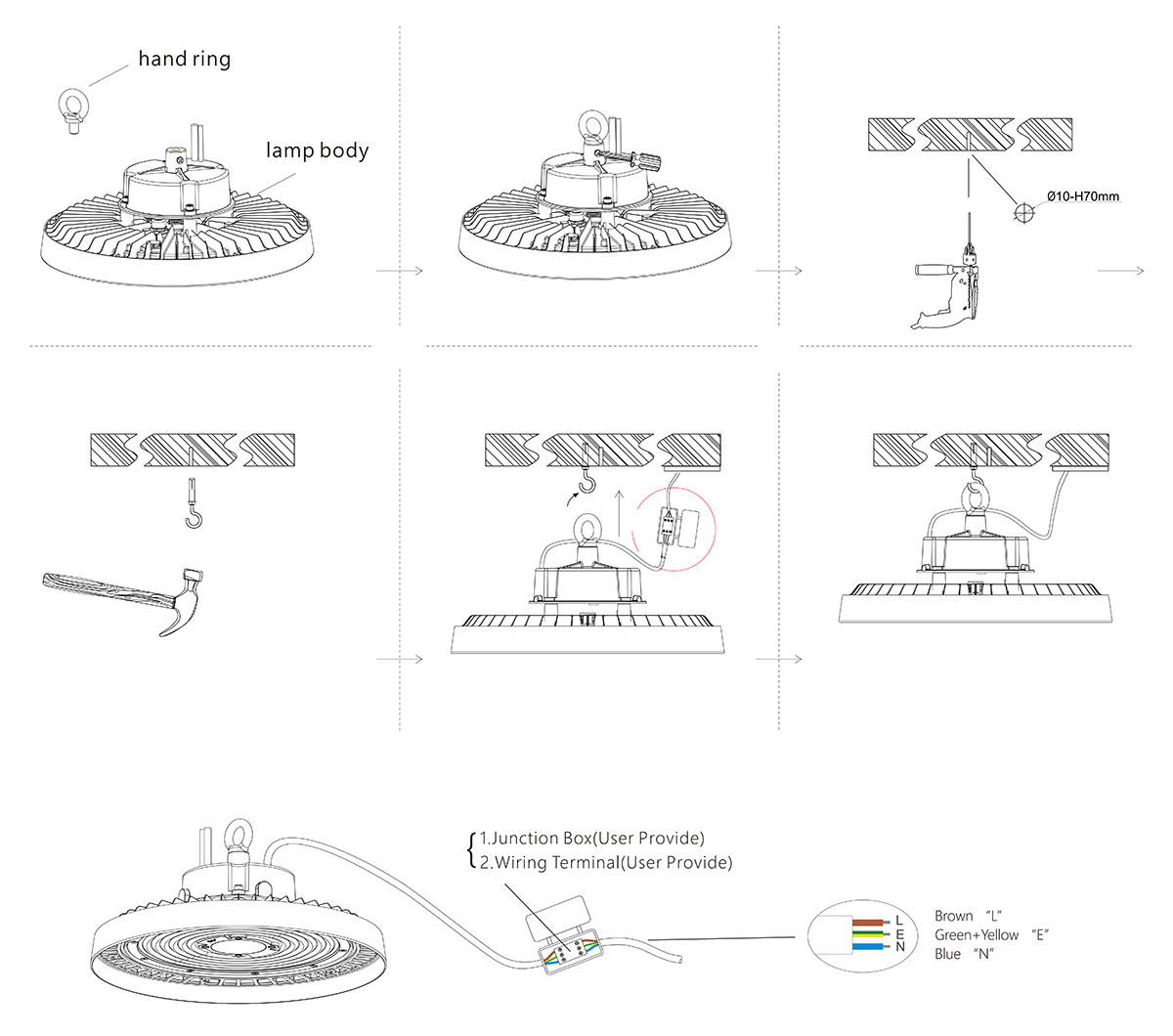

Installation steps

A: Open the packaging take out the lamp body and the hand ring;

B: Install the hand ring,tighten the Screw with a Screwdriver;

C: Drill a hole in ceiling;

D: Insert the screw with hook into the hole;

E: Install the luminaire onto the hook,and connect the wires as showing.

E: Clean the lamp and complete the installation.



Note: Please make sure the power off before opertion,Installation must be performed by skilled electrician who arefamiliar with the requirements and proper installation methods of LED luminaire. In order to avoid damage or hazard; The external fxible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must bedestroyed.

The light source contained in this luminaire shall only be replaced by a qualified person.
