HBF SERIES
2024

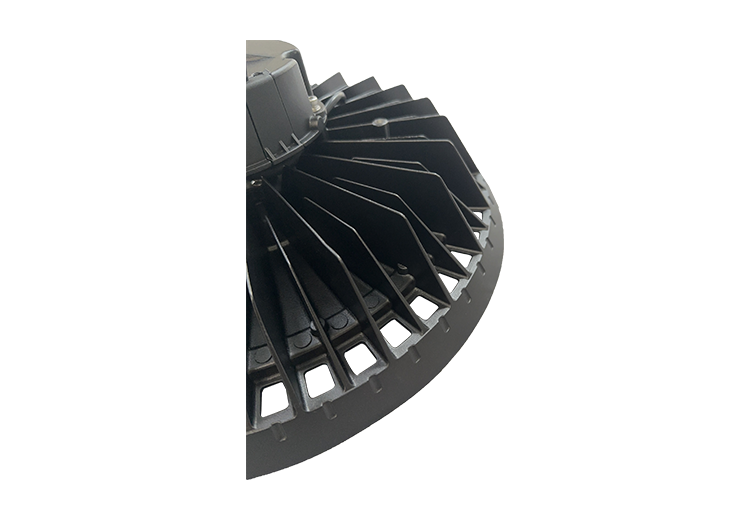

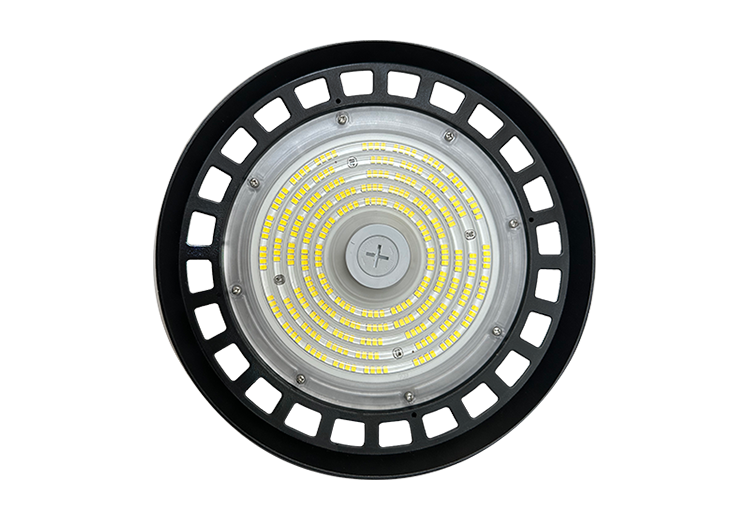

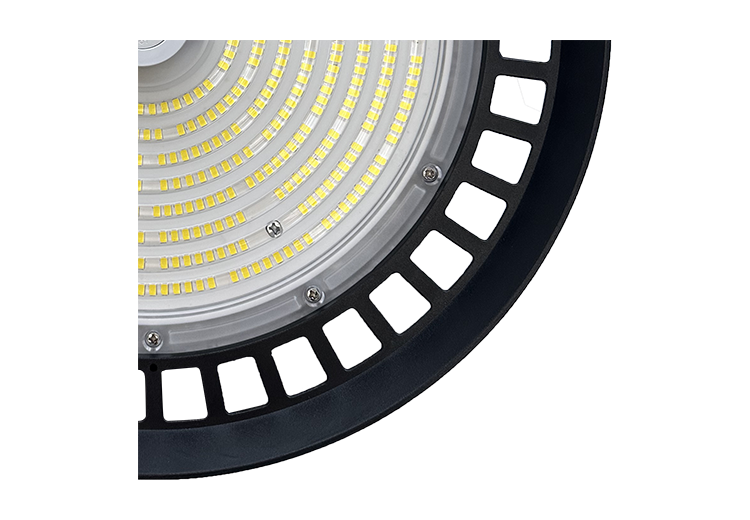

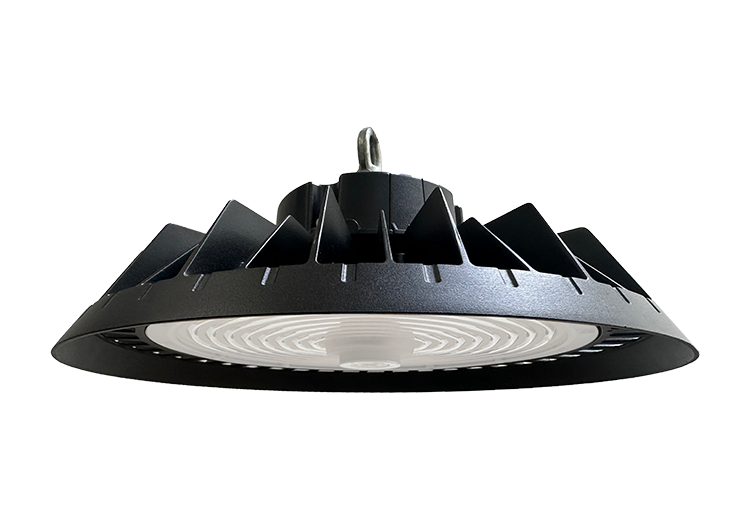

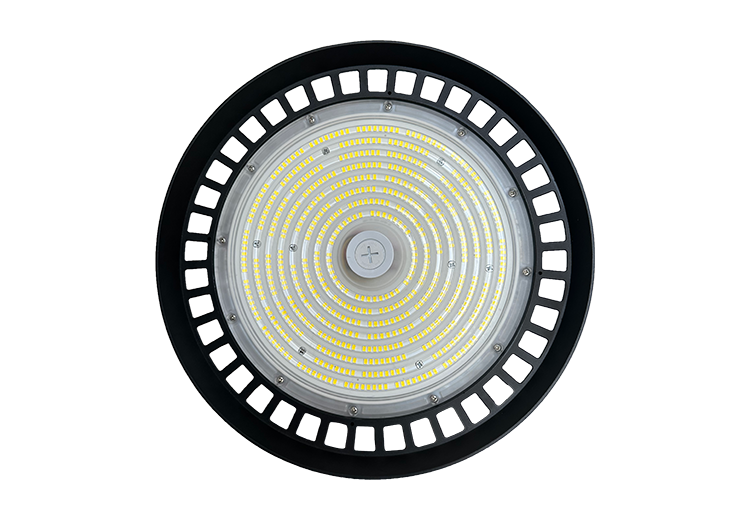

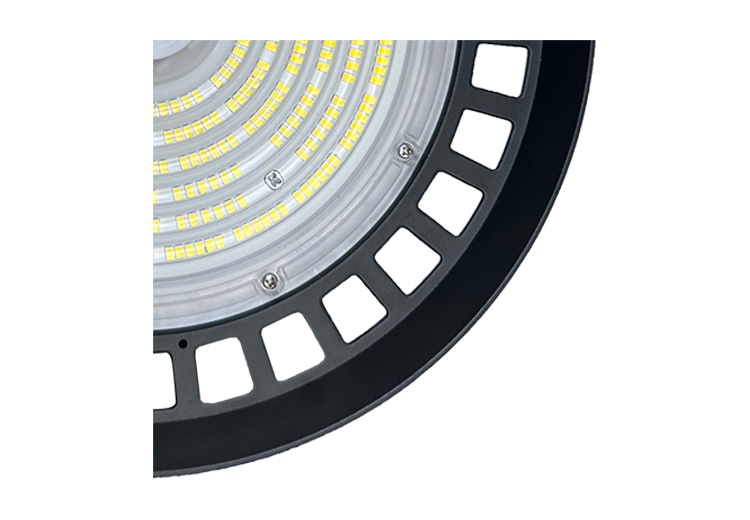

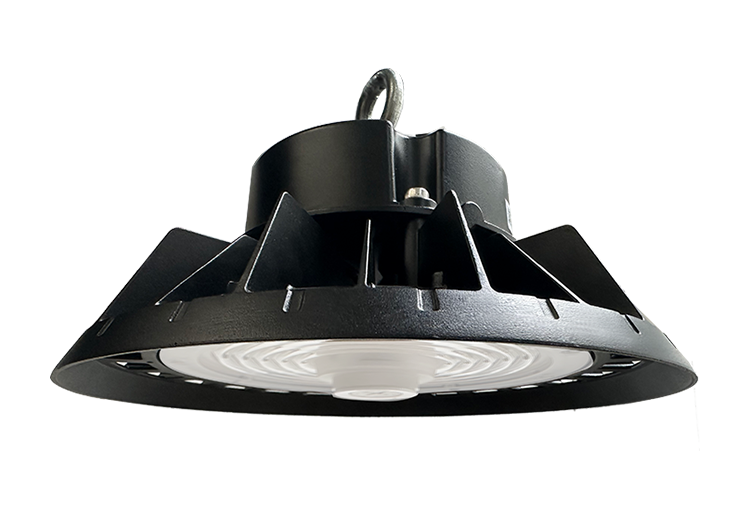

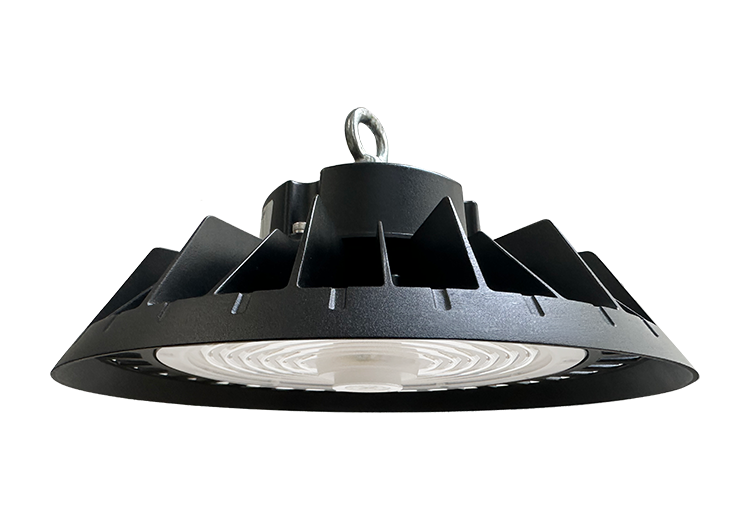

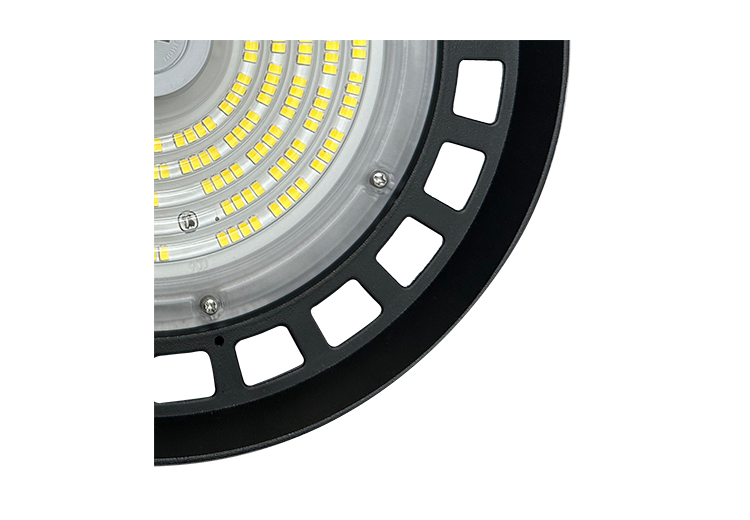

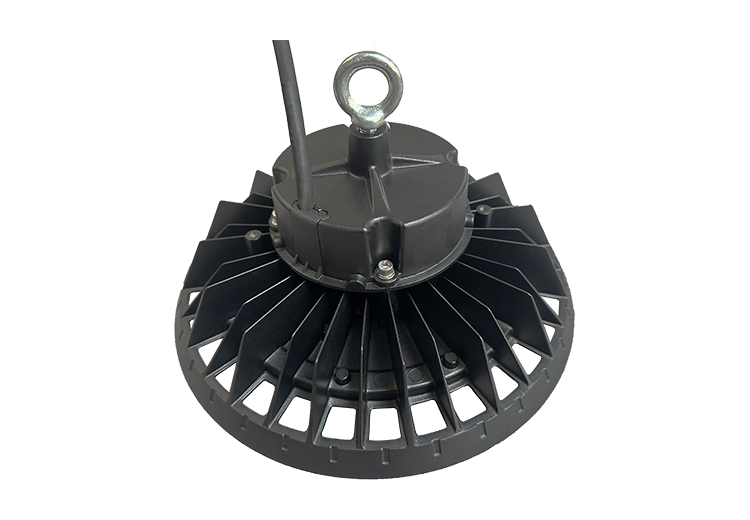

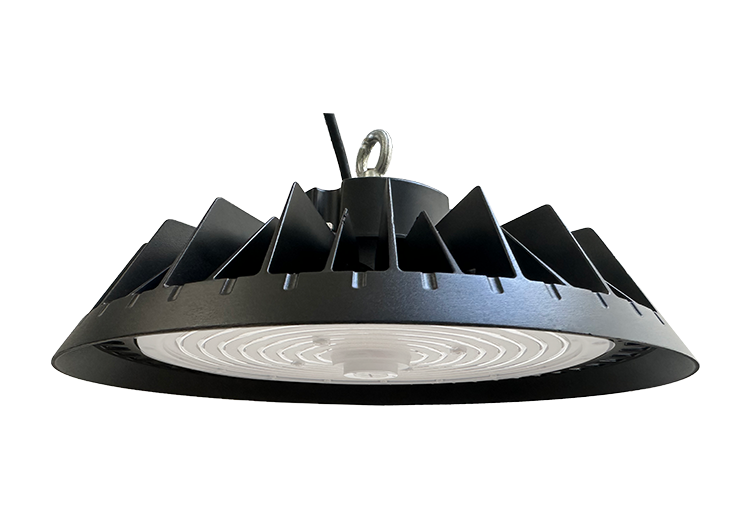

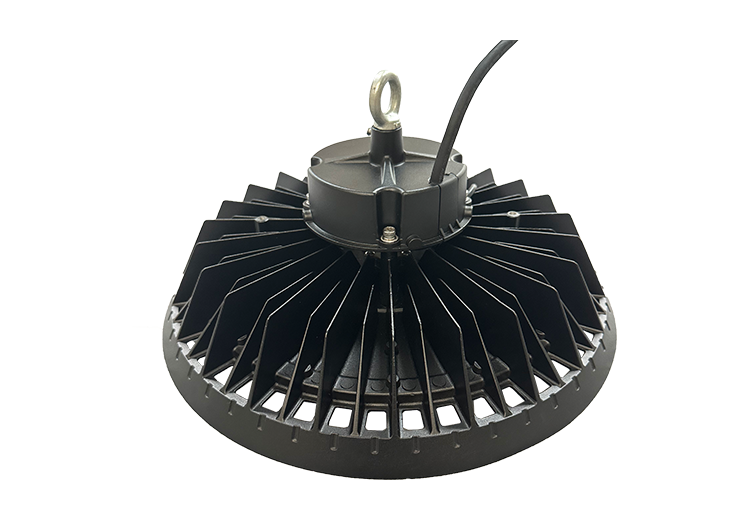

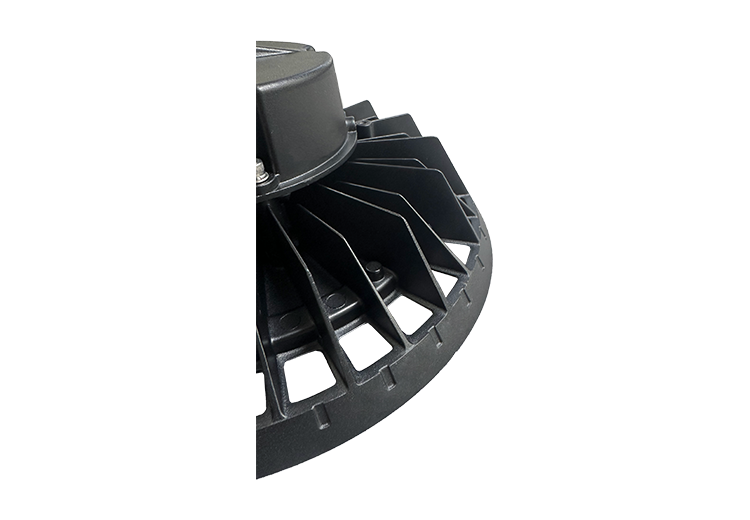

HBF series UFO high bay lights have fully considered the balance between product performance and cost control from the beginning of the design. Therefore, while ensuring good heat dissipation and highlighting efficiency, it brings excellent cost performance and optimal packaging volume. It adopts a high-quality die-cast aluminum heat sink, SOSEN flicker-free driver, with a light efficiency of up to 200lm/W and CRI>80, IP65, IK08, equipped with microwave motion sensor interface, easy to plug and play, and more energy-efficient.
HBF passed CE and CB certification, so it is an excellent choice for distribution, wholesale, project.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux (200lm/W) |
|---|---|---|
| XJ-HBF100W-* | 100 | 20000 |
| XJ-HBF150W-* | 150 | 30000 |
| XJ-HBF200W-* | 200 | 40000 |
| XJ-HBF240W-* | 240 | 48000 |
Above lumens based on 5700K Ra:70
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN

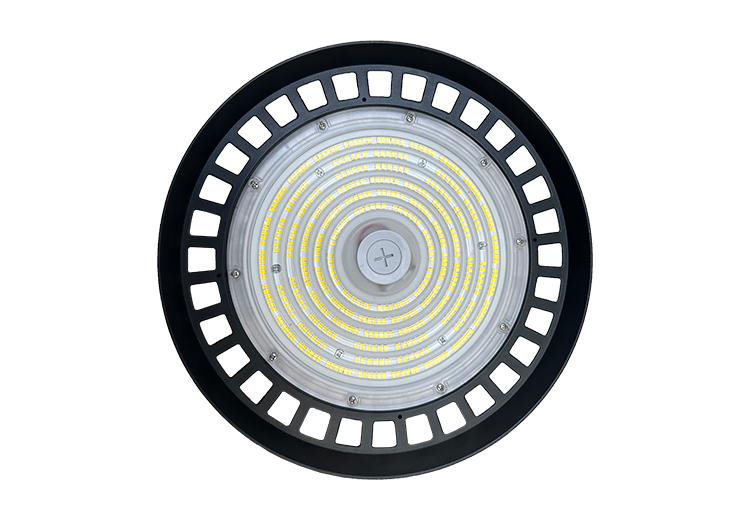

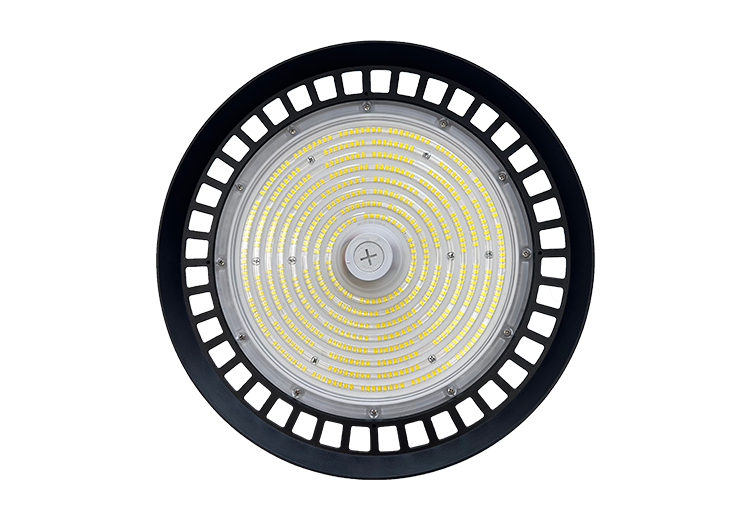

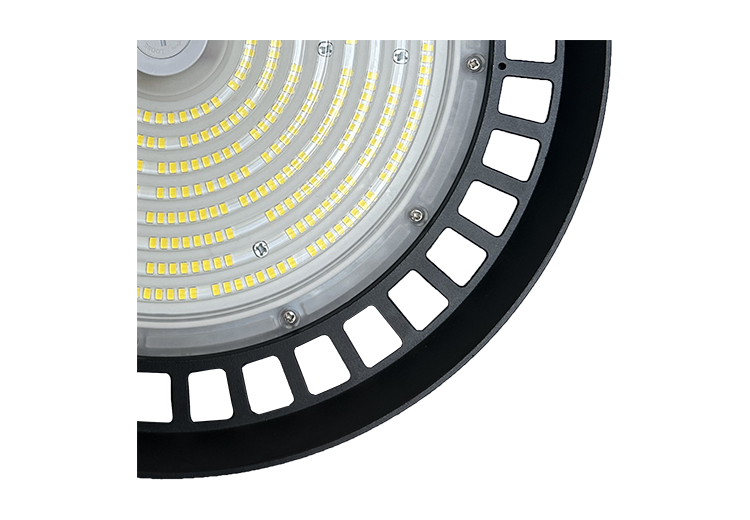

Light Source：2835
CRI Range：Ra>70
CCT Range：NW(4000K) CW(5700K) WW(3000K)(Optional) DW(5000K)(Optional)
Light Efficiency：200±5% Lm/W
Beam Angle：60° / 90°
Maximum detection distance：12metre

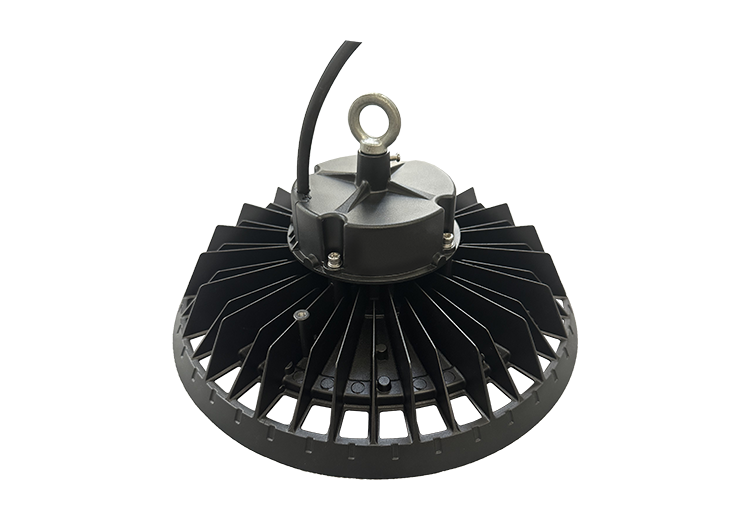

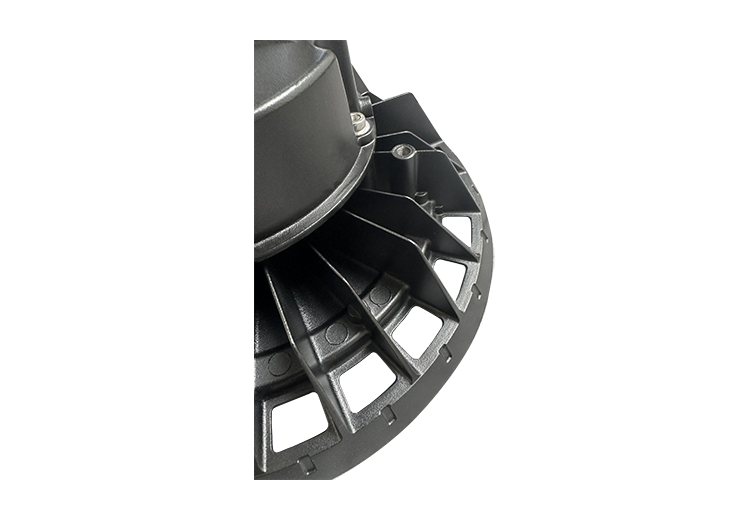

Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Note: 90 degree default with sensor interface
60 degree default without sensor interface

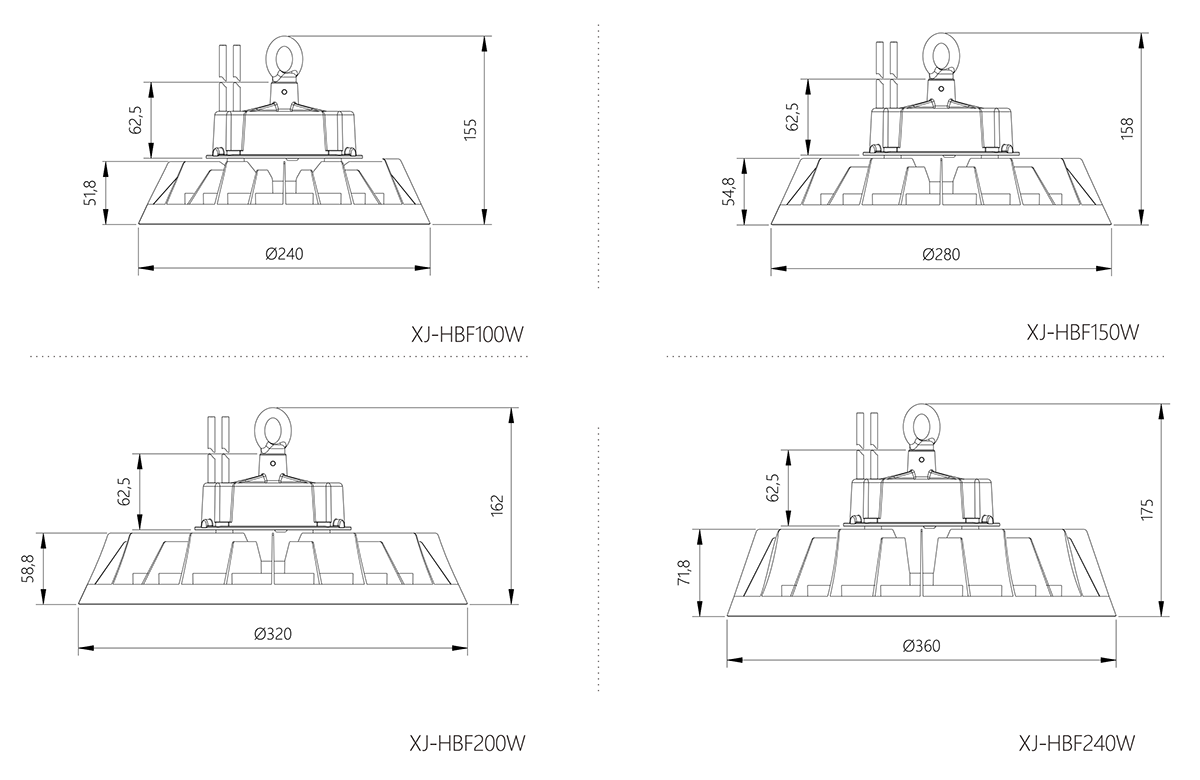

Dimension
Accessories
Installation

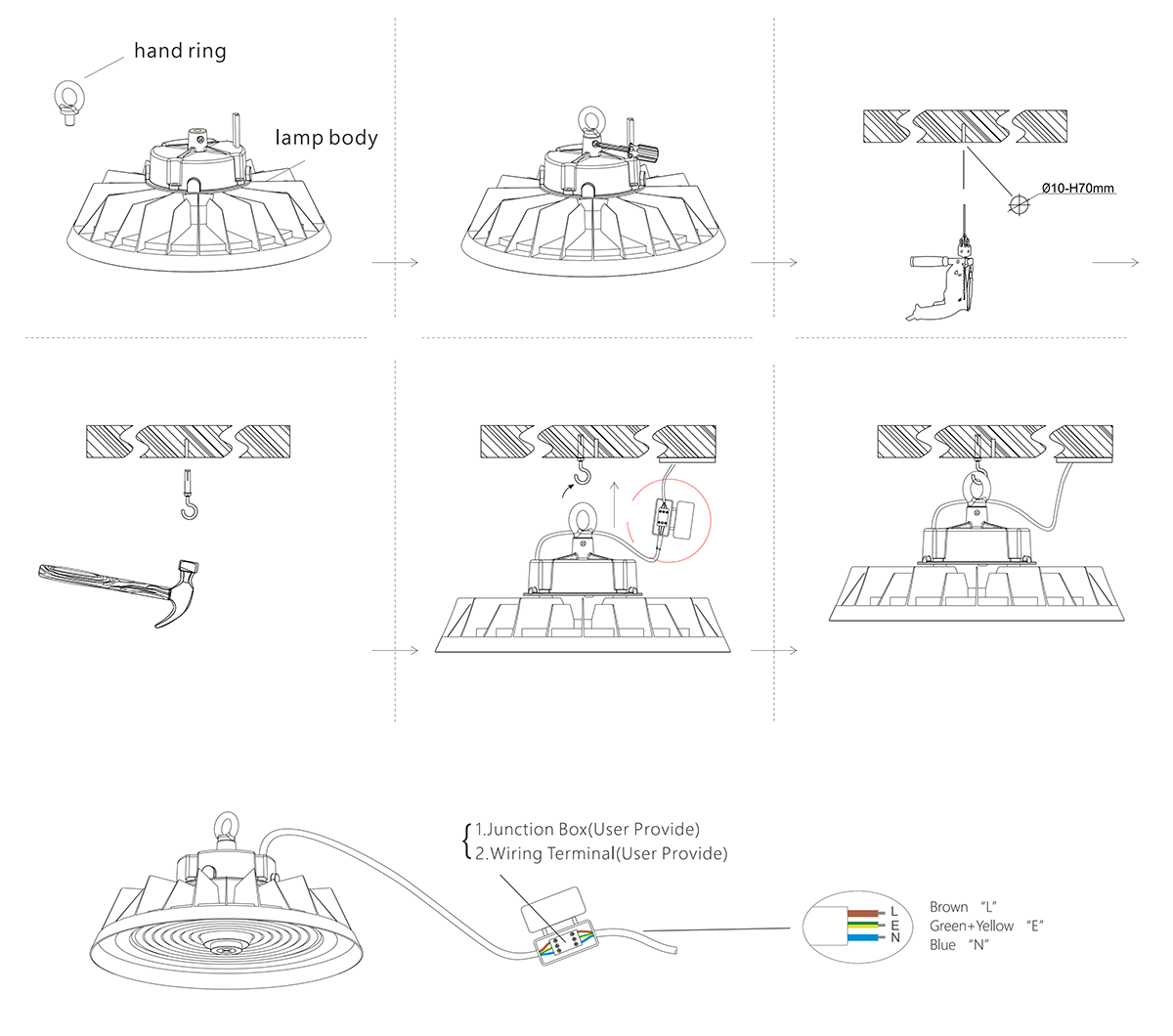

Installation steps
A: Open the packaging take out the lamp body and the hand ring;
B: Install the hand ring,tighten the Screw with a Screwdriver;
C: Drill a hole in ceiling;
D: Insert the screw with hook into the hole;
E: Install the luminaire onto the hook,and connect the wires as showing.
F: Clean the lamp and complete the installation.
Note: Please make sure the power off before opertion,Installation must be performed by skilled electrician who arefamiliar with the requirements and proper installation methods of LED luminaire. In order to avoid damage or hazard; The external fxible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must bedestroyed.
The light source contained in this luminaire shall only be replaced by a qualified person.
Video
Short Video
Download
-
HBF Series High bay light SPEC
-
IES+LDT
Please contact our sales to obtain password
