STA SERIES
2023

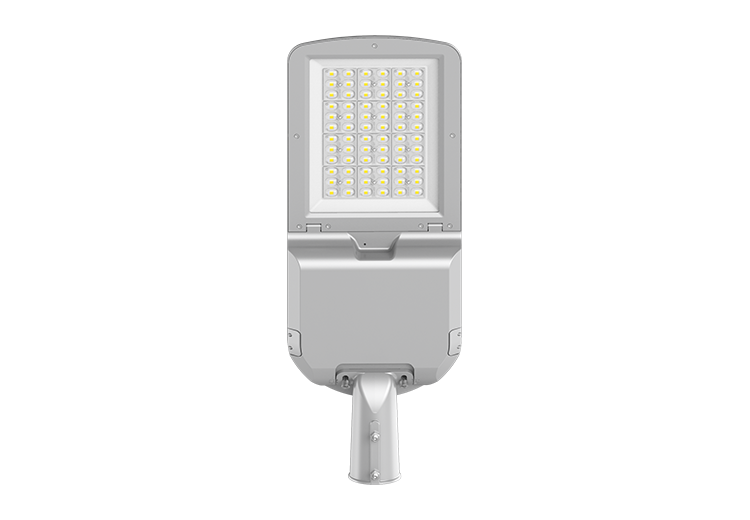

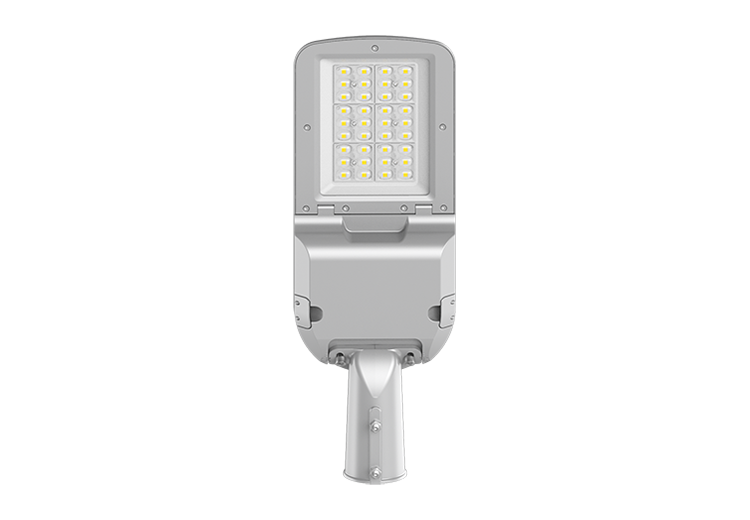

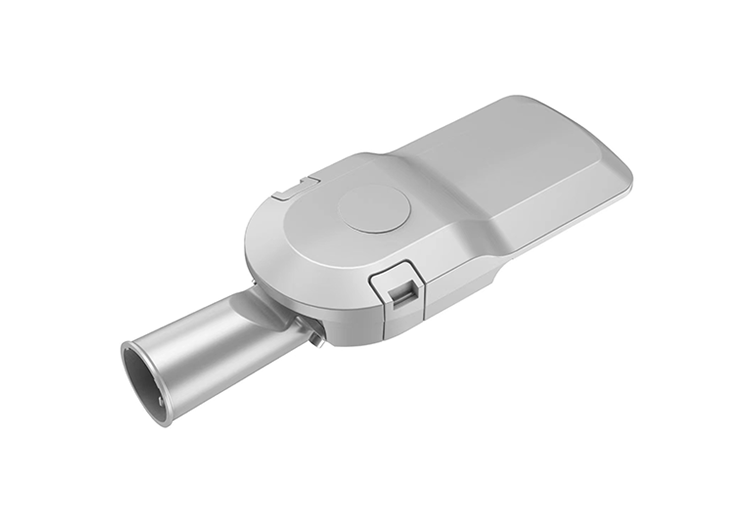

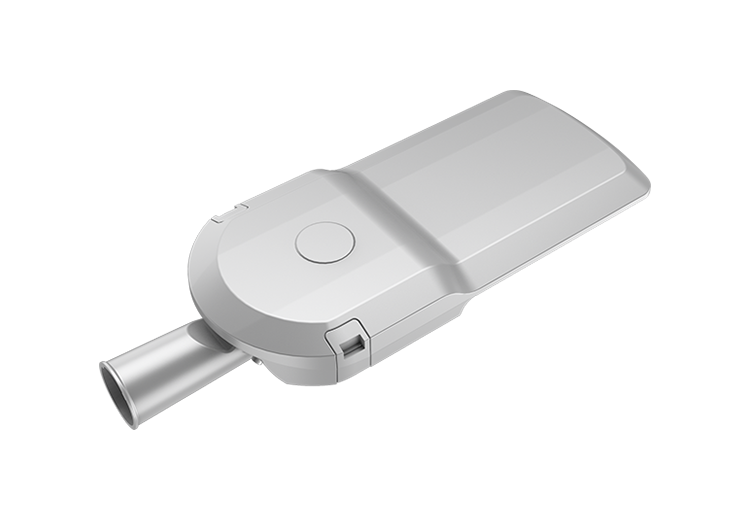

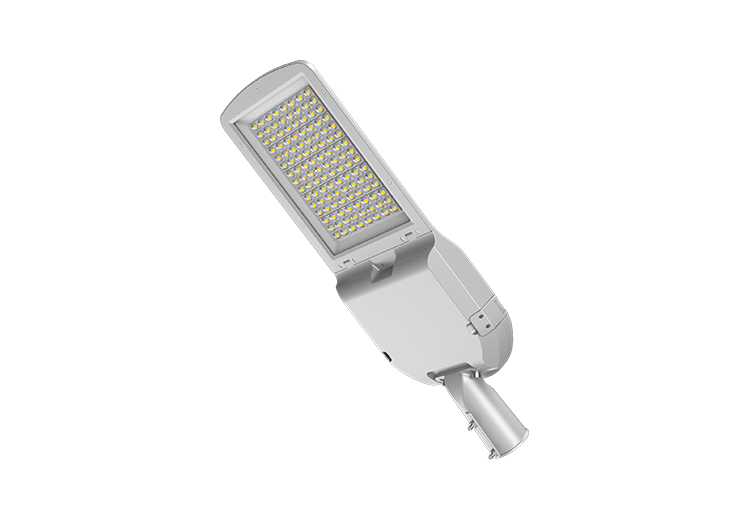

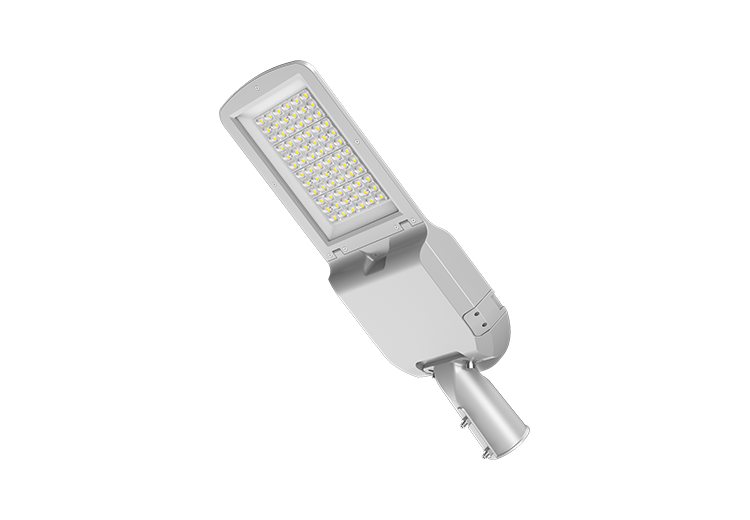

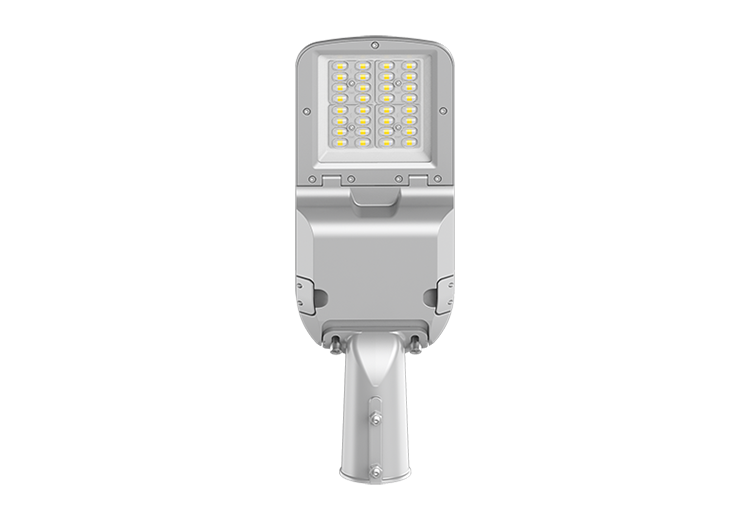

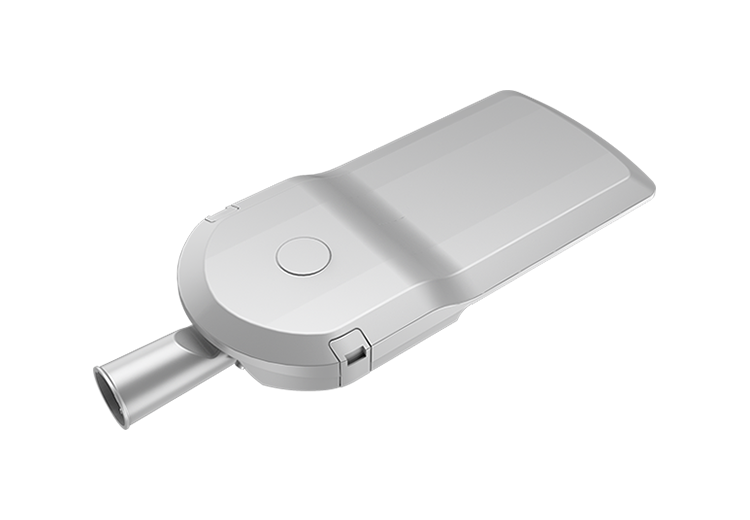

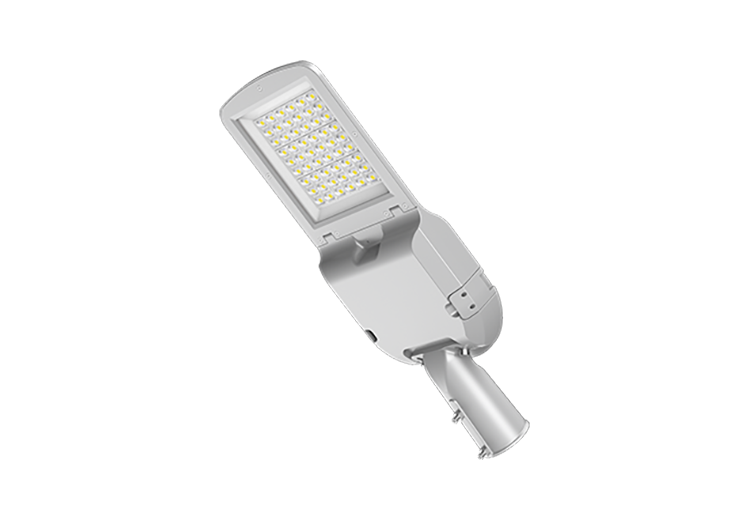

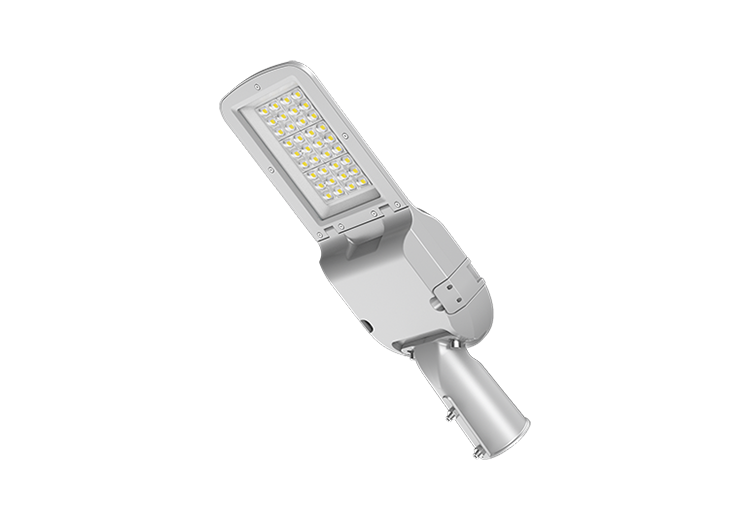

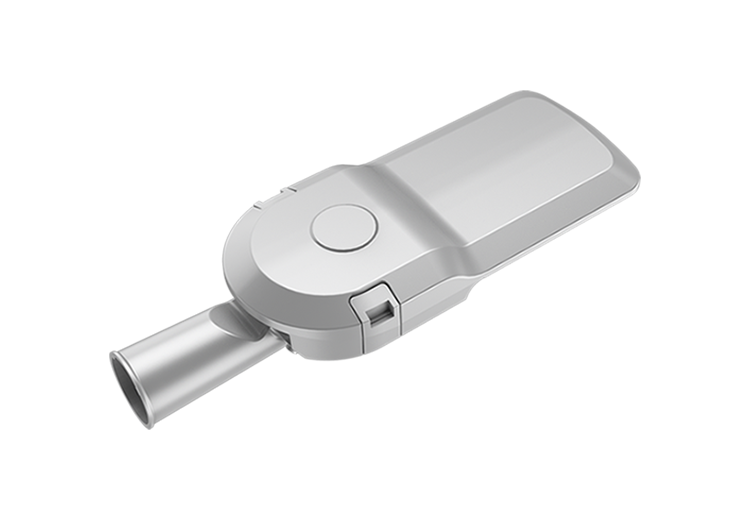

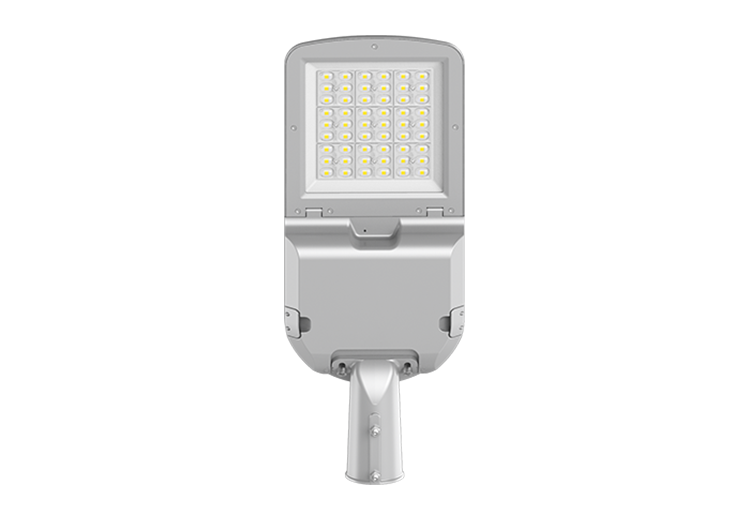

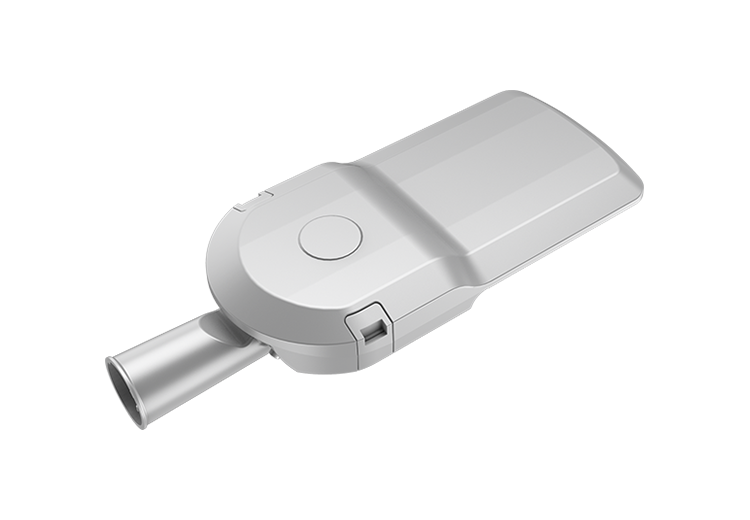

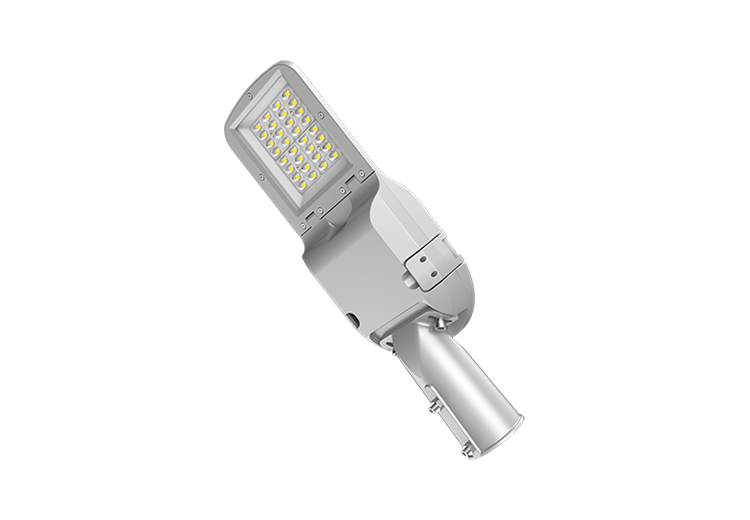

The STA series LED street light features 24 LEDs in a single lens with a glass cover design, ensuring superior light efficiency with excellent cost performance. Its smooth body design includes self-cleaning capabilities to prevent dust and dirt accumulation, making it suitable for harsh environments. The fixture offers horizontal and vertical adjustable tilt angles for convenient and quick installation. Equipped with an isolated driver featuring 10KV surge protection, IP66 waterproof rating, and IK08 impact resistance, it is ideal for illuminating streets, parking lots, and other expansive areas requiring high-volume LED lighting solutions, providing reliable illumination in any environment.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 150lm/W
XJ-STA50W507500
XJ-STA75W7511250
XJ-STA100W10015000
XJ-STA150W15022500
XJ-STA200W20030000
XJ-STA240W24036000

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:200-277V 50/60Hz

LED Driver Brand: SOSEN

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K),CW(5700K)

Light Efficiency: 150 ± 5% Lumens per Watt (lm/W)

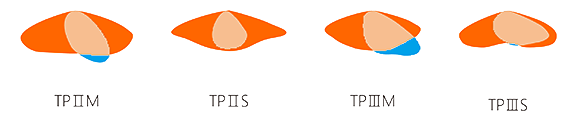

Beam Angle Options: TPⅡM, TPⅡS, TPⅢM, TPⅢS

Housing:Aluminum Alloy

Surge Protection: 10kV

Waterproof Rating: IP66 & IK08 (impact resistance)

L80B20@25℃:>100000H

PF:≥0.95

THD:           < 15%

Power Efficiency: ≥ 0.9

Certifications:CE, CB


Dimension

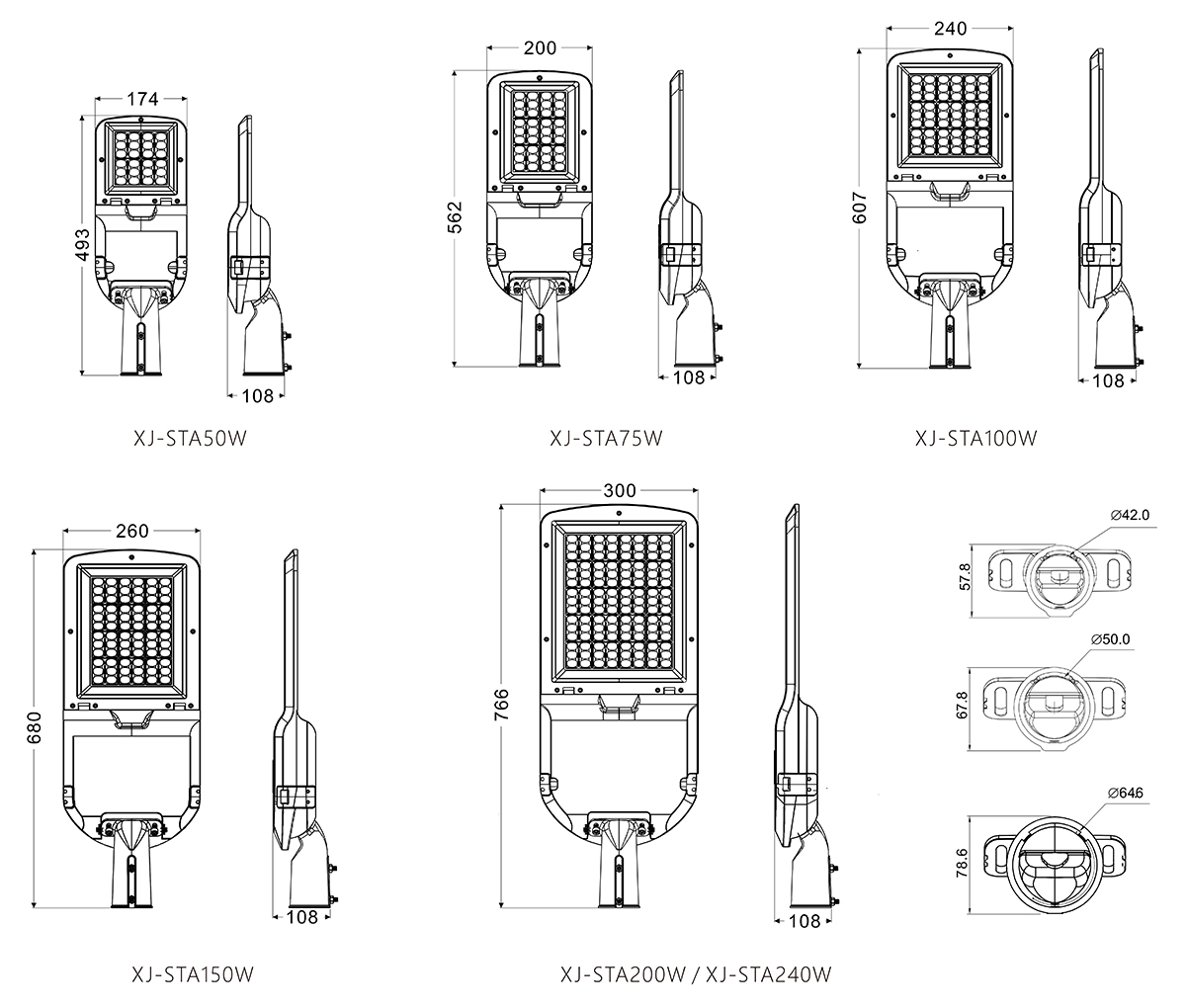

STA SERIES LED Street Light Dimension

Accessories

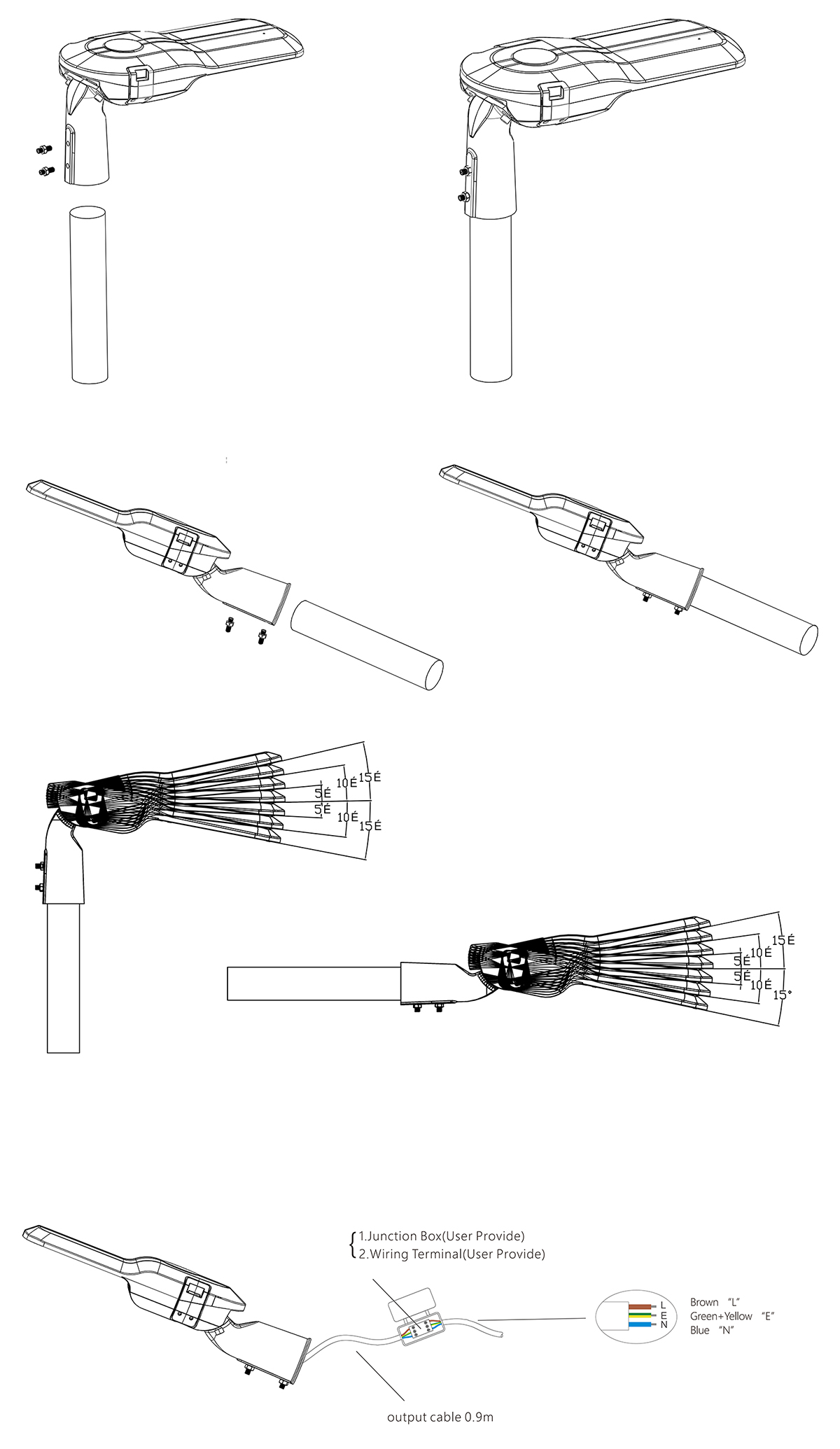

Installation


Note: Ensure the power is turned off before any operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards.The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be disposed of.

The light source within this luminaire should only be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
