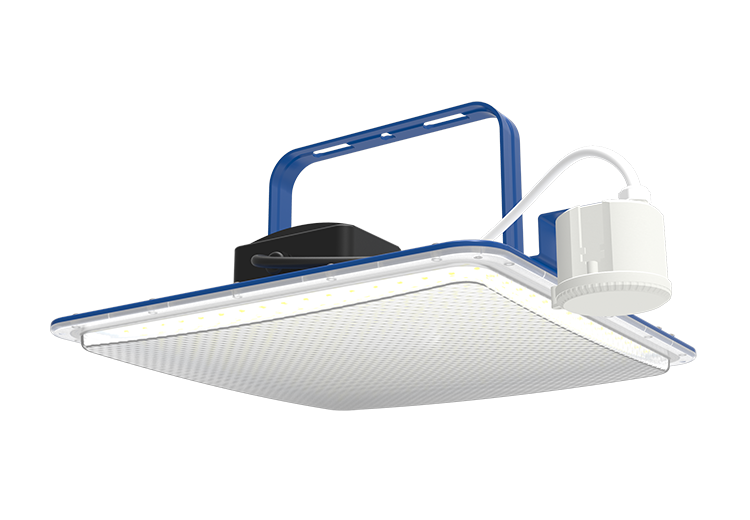

GSL SERIES

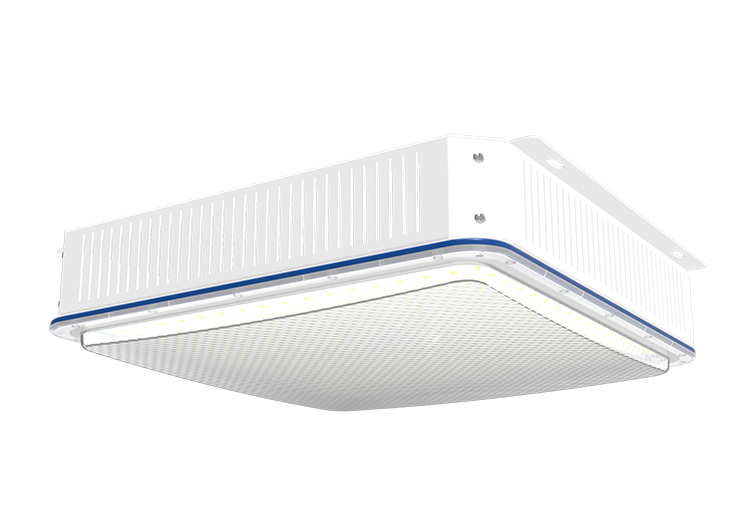

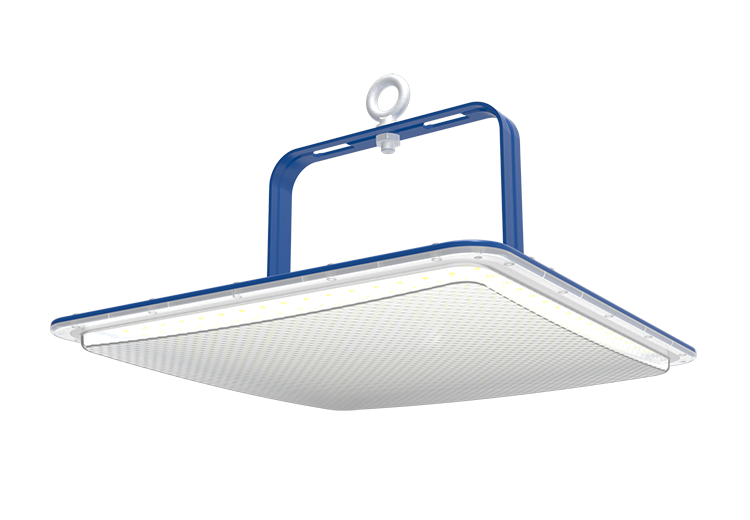

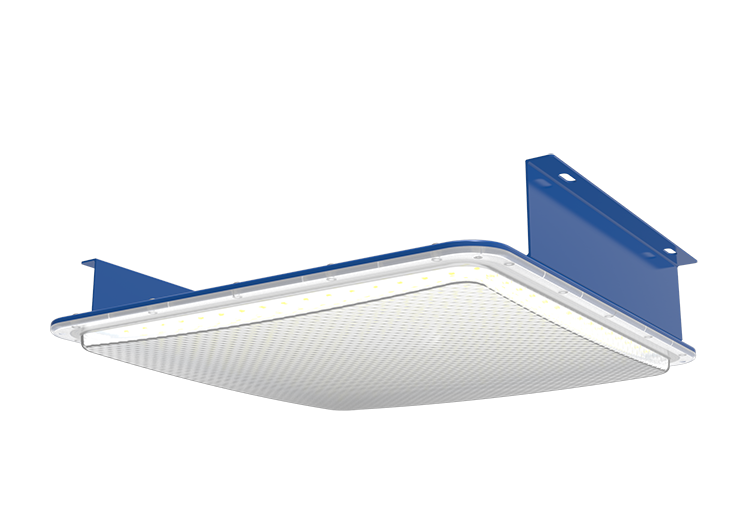

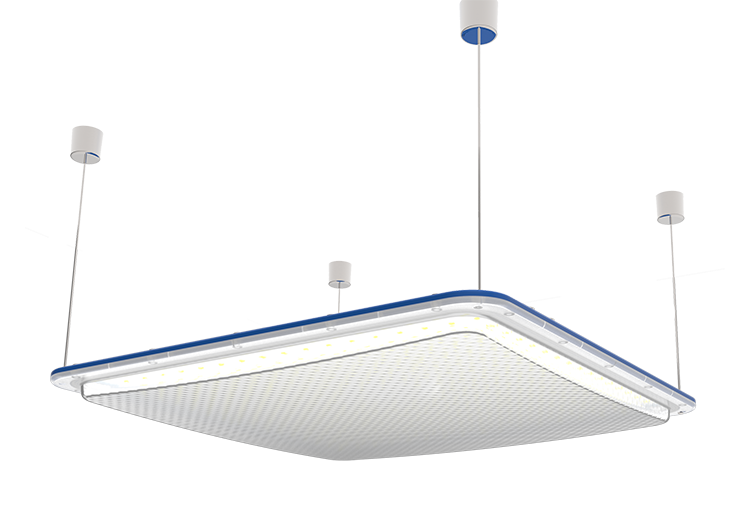

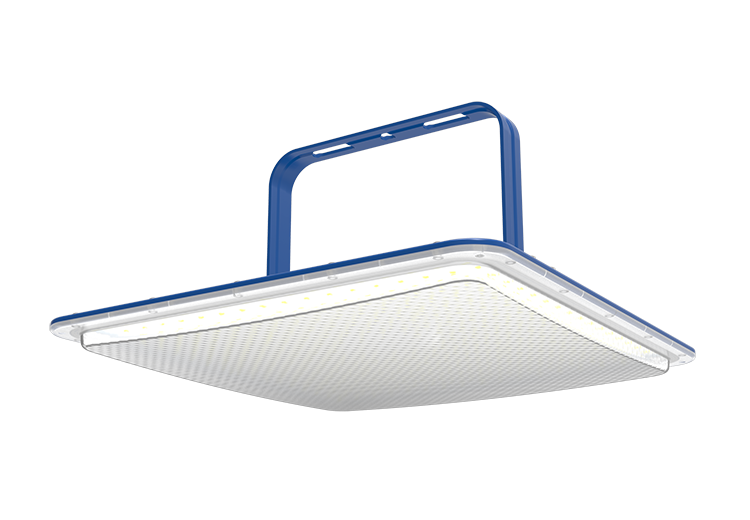

The GSL series is perfect for various industrial and commercial applications, offering flexible mounting options including surface, recessed, and pendant methods. With its high-efficacy LED system and high power factor, the GSL range stands out as a top choice for low bay lighting.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 140lm/W
XJ-GSL100W10014000
XJ-GSL150W15021000
XJ-GSL200W20028000

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input:100-277V 50/60Hz

Brand of LED Driver:MEANWELL

Light Source:2835

CRI Range:Ra>80

CCT Range:NW(4000K) CW(5700K)

Light Efficiency:140±5% Lm/W

Beam Angle:110°

Housing:Aluminum Alloy

Waterproof:IP65 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:EX, TUV, CE, RoHS, SAA


Dimension

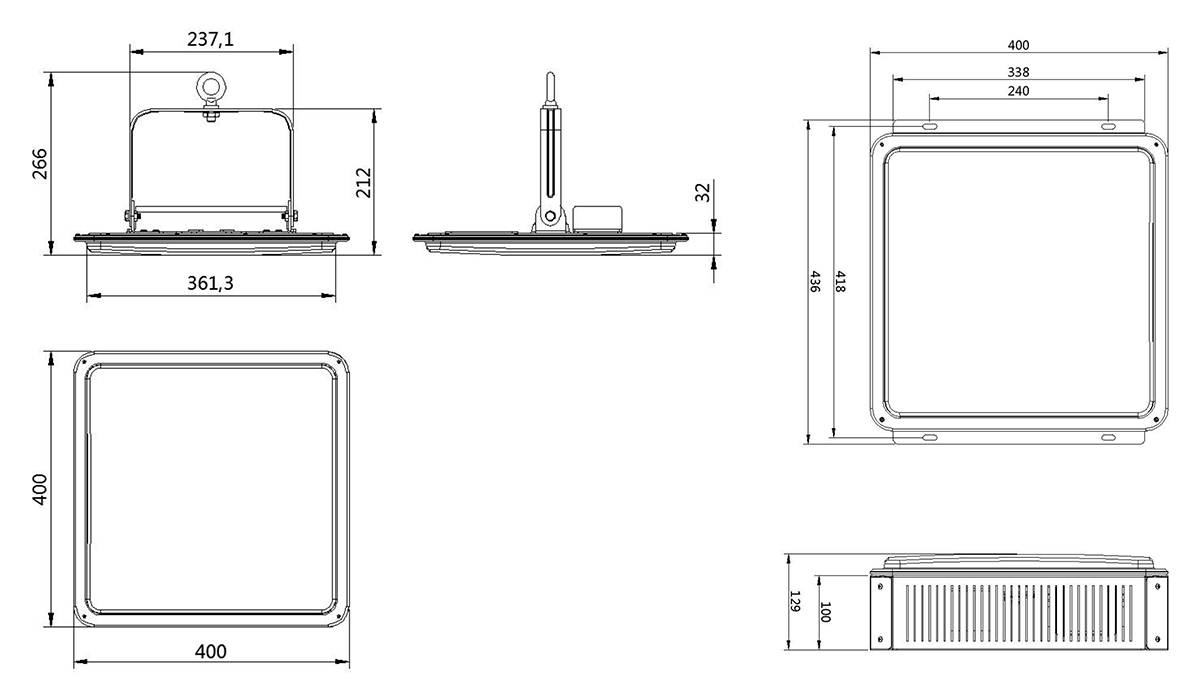

GSL SERIES LED High Bay Light Dimension
