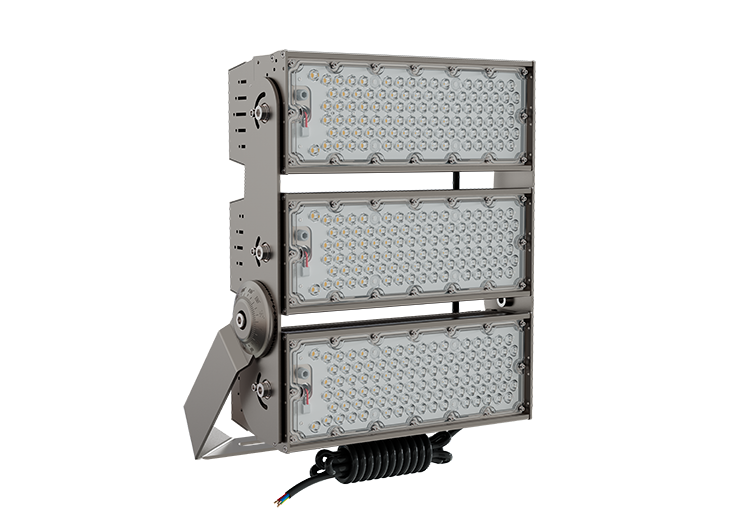

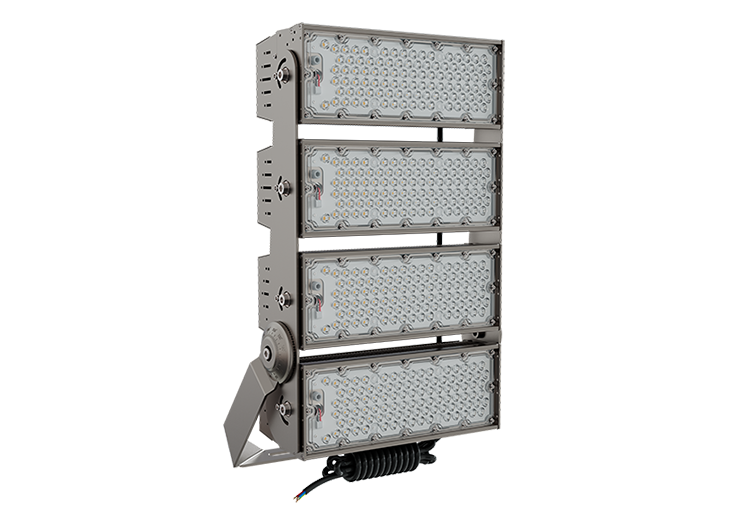

TFD SERIES (SAGITTARIUS)
2024

180lm/w     240W/480W/720W/960W     20°/40°/60°/P50

Sagittarius series High Mast lighting provide solutions for sports lighting and high-pole lighting, and provide various light distribution designs from different angles to meet the lighting needs of different occasions, The protection arade reaches lK08 and lP66, Constant current power driver anti-surge voltage up to 10KV,L80B20 can reach more than 100000 hours.

Product Download
  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 170lm/W
XJ-TFD240W24040800
XJ-TFD480W48081600
XJ-TFD720W720122400
XJ-TFD960W960163200

Light distribution curve


AC Input：200-240V 50/60Hz

Brand of LED Driver: SOSEN（Isolated driver）

Light Source: 5050

CRI Range：Ra>70

CCT Range：NW(4000K) CW(5700K)
                       WW(3000K)(Optional) Dw(5000k)(Optional)

Light Efficiency: 170±5% Lm/W

Beam Angle: 20° / 40° / 60° / P50

Housing：Aluminum Alloy

Surge Protection: 10kV

Waterproof：IP66 & IK08

L80B20@25℃：>100000H

PF：≥0.95    THD：<15%     Power Efficiency：≥0.9

Certifications： CE, CB

Warranty：5 Years

Light body color：White Aluminum( RAL 9006 )


Dimension

TFD SERIES (SAGITTARIUS)_SEEKING LED-LIGHTING LIMITED Dimension

Accessories

accessoriesimagematerialdimensionsweightaccessory use
OptionalA06Aluminium∅ 30x120mm200gLamp angle positioning
StandardA07SUS304∅ 5x1000mm0.6kgIncrease the safety performance

Installation


Note : Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall  only be replaced by a qualified person;
