STB SERIES
2023

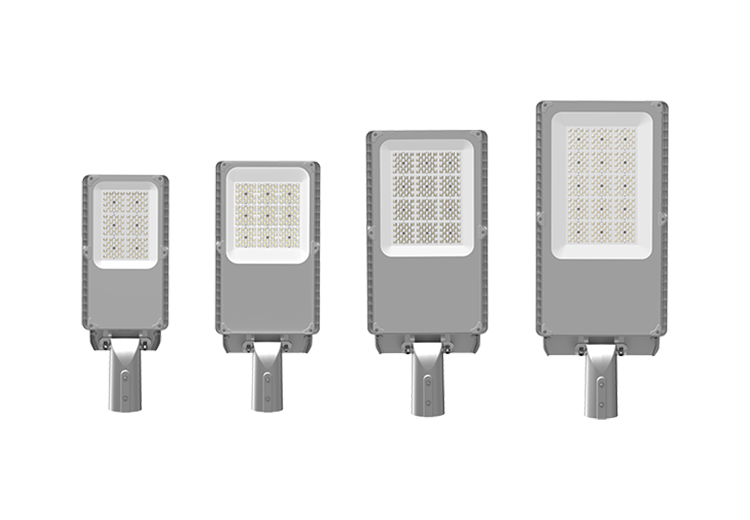

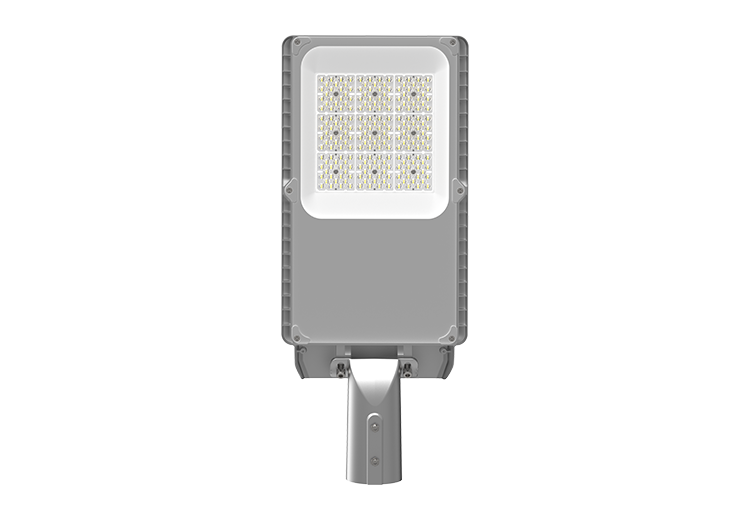

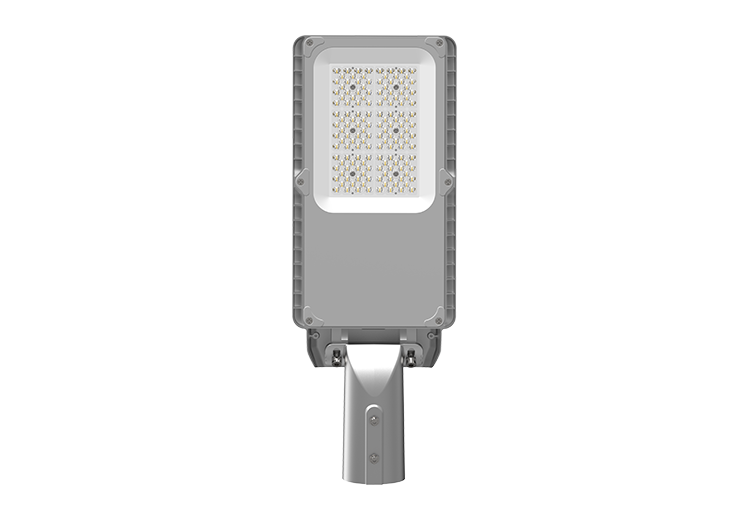

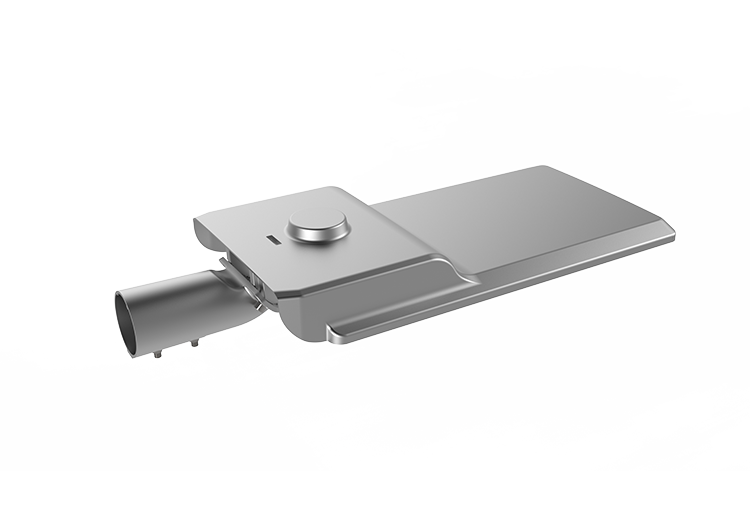

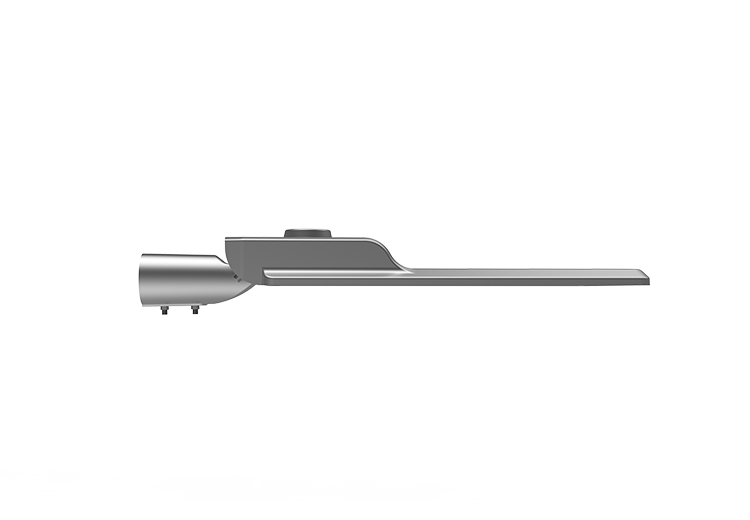

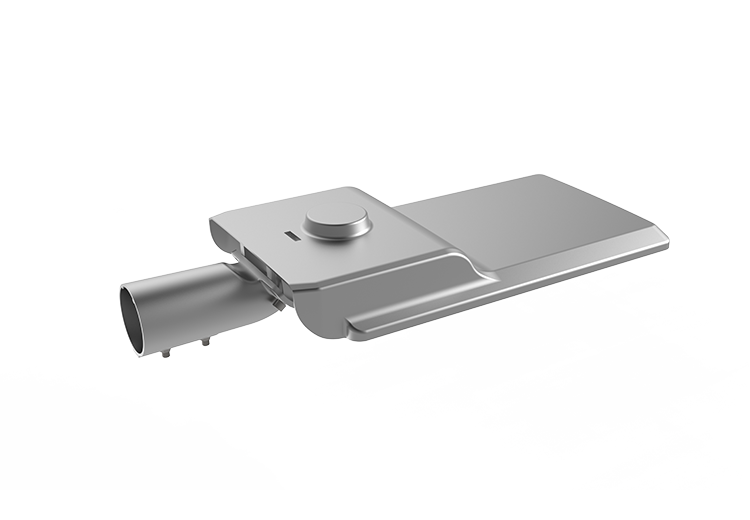

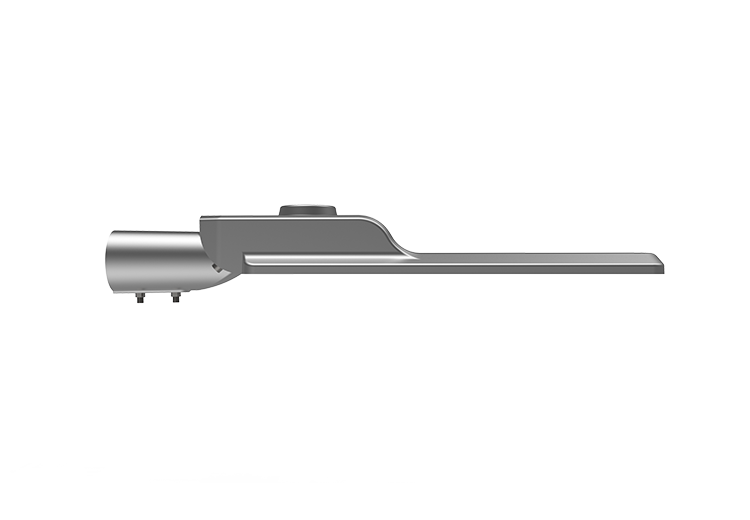

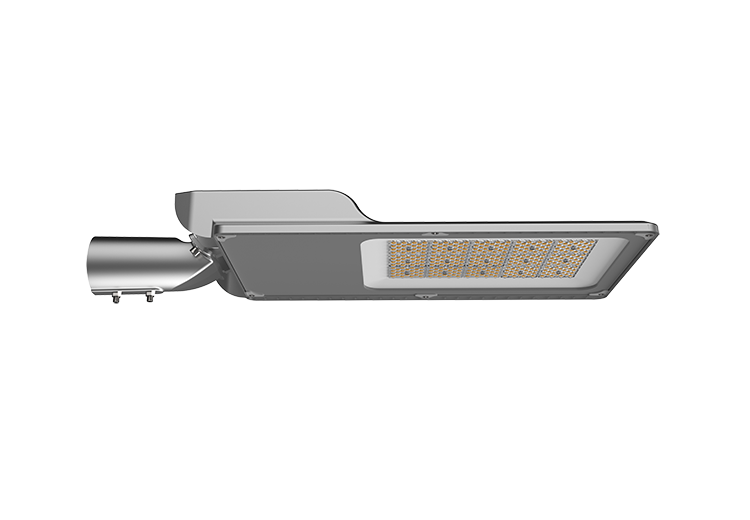

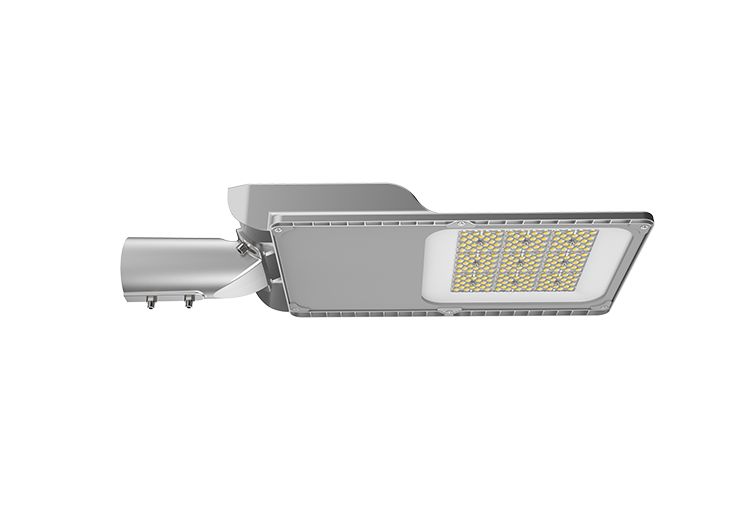

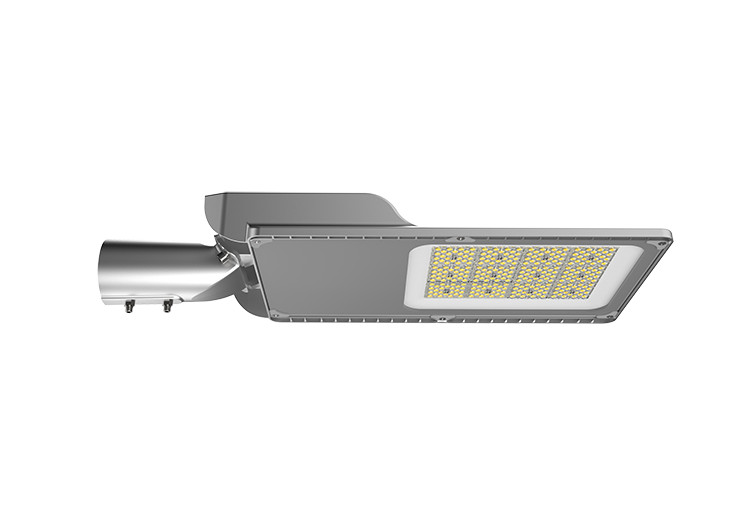

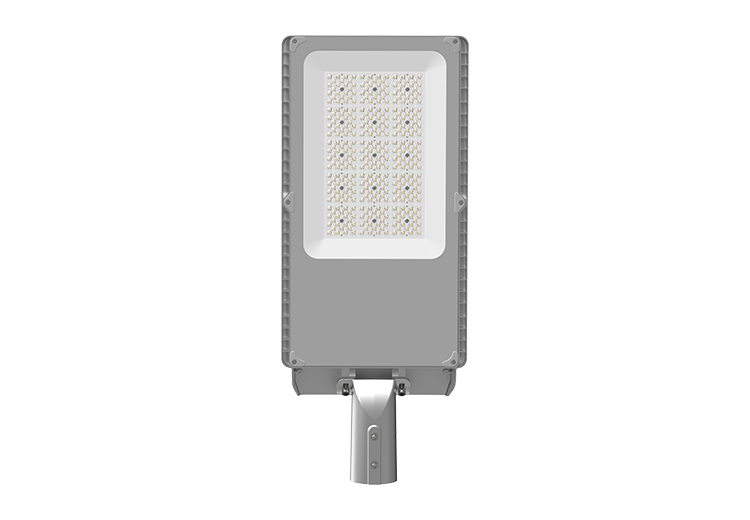

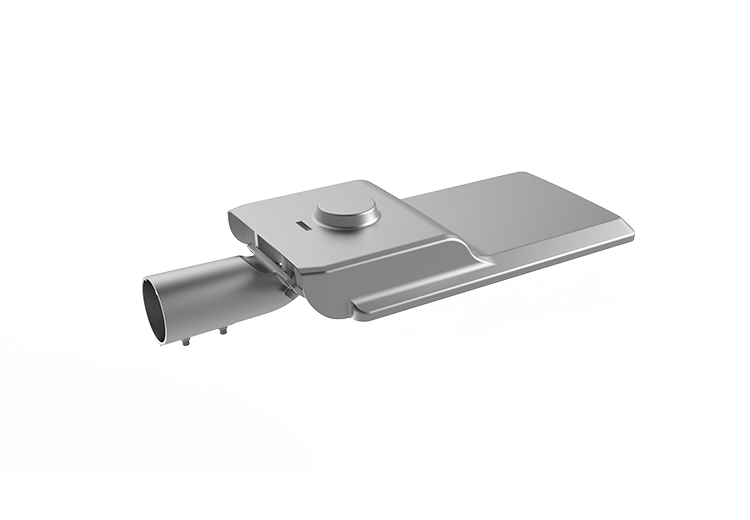

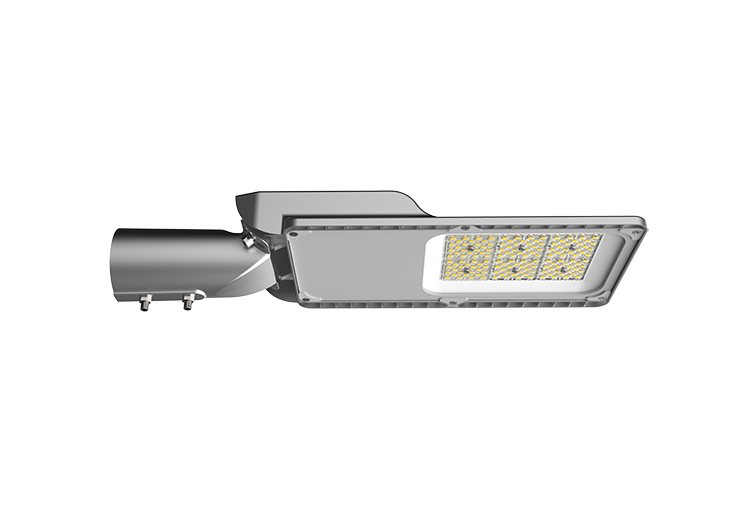

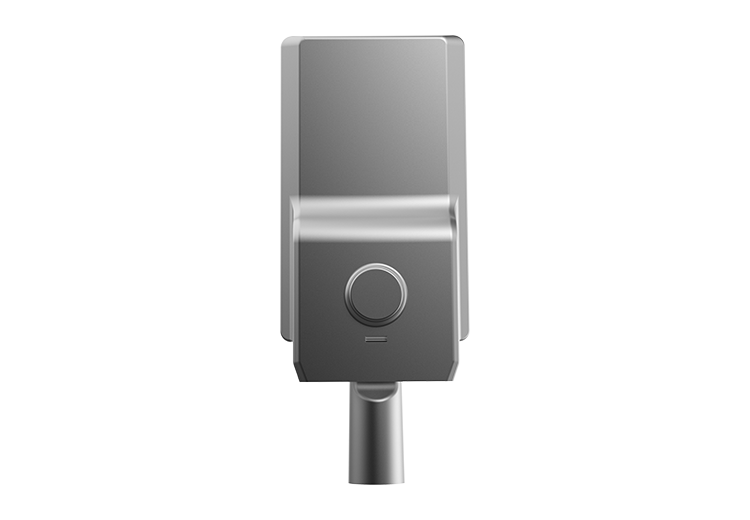

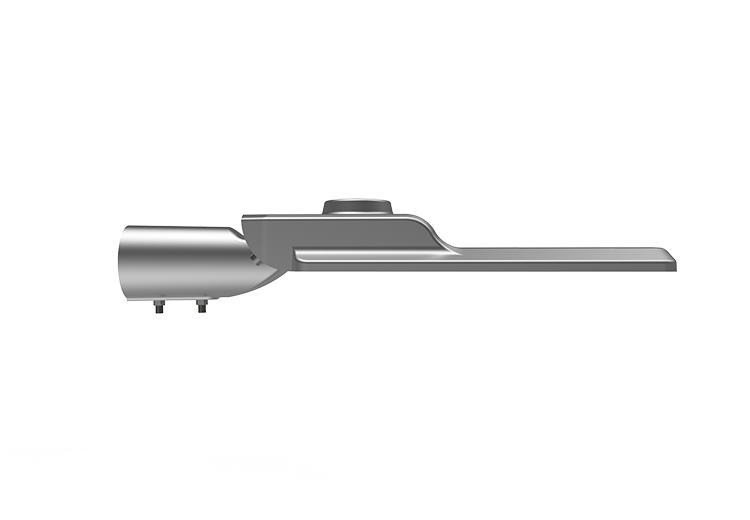

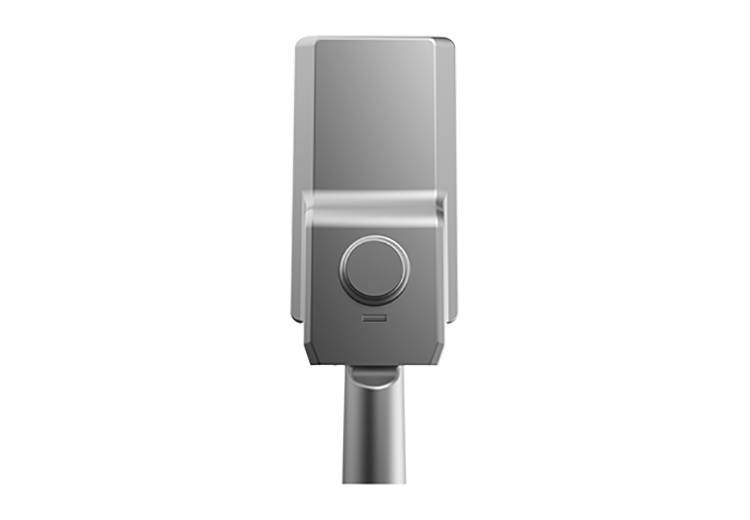

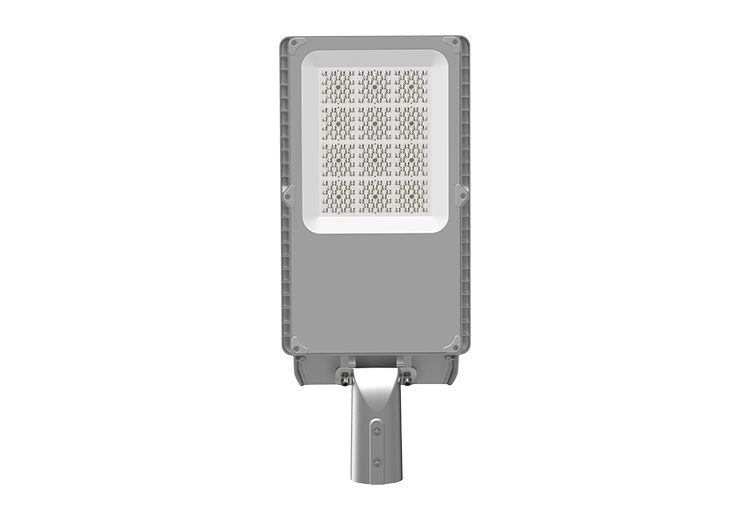

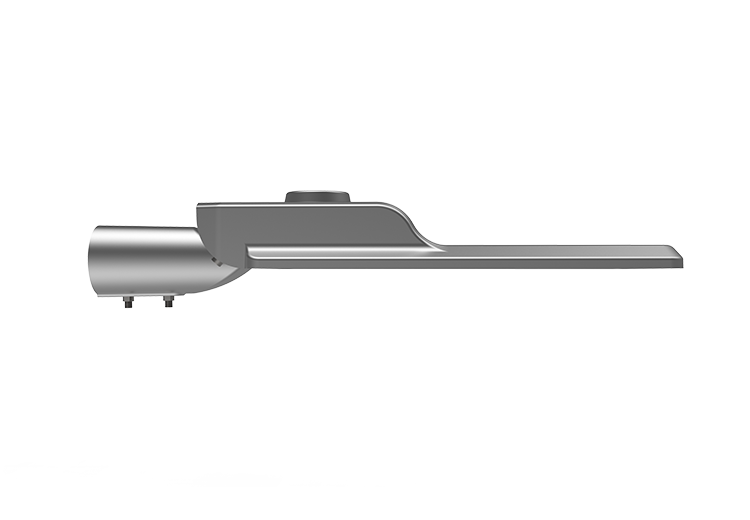

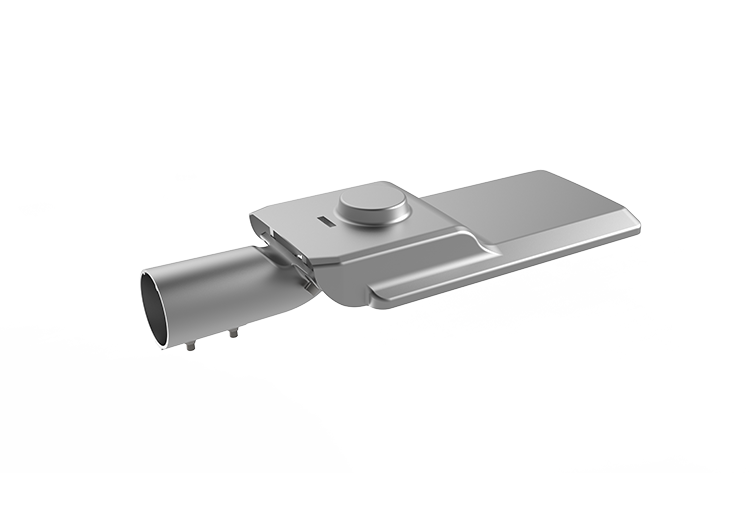

The STB series LED street light features 24 LEDs per lens with a glass cover design, ensuring superior light efficiency and cost-effectiveness. Its smooth body design with self-cleaning capabilities prevents dust and dirt accumulation, making it suitable for harsh environments. The fixture offers horizontal and vertical adjustable tilt angles for easy and quick installation. Equipped with an isolated driver, 10KV surge protection, IP66 rating, and IK08 impact resistance, it is ideal for streets, parking lots, and other large open areas requiring high-volume LED lighting. This fixture delivers the necessary illumination for any environment.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 160lm/W |
|---|---|---|
| XJ-STB50W | 50 | 8000 |
| XJ-STB75W | 75 | 12000 |
| XJ-STB100W | 100 | 16000 |
| XJ-STB150W | 150 | 24000 |
| XJ-STB200W | 200 | 32000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
LED Driver Brand: MOSO
Light Source: 2835 LEDs
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency: 160 ± 5% Lumens per Watt (lm/W)

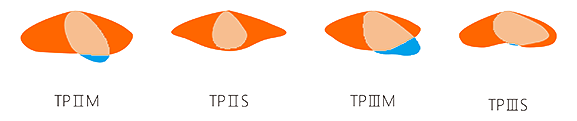

Beam Angle Options: TPⅡM, TPⅡS, TPⅢM, TPⅢS
Housing：Aluminum Alloy
Surge Protection: 10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95
THD: < 15%
Power Efficiency: ≥ 0.9
Certifications: CE, CB

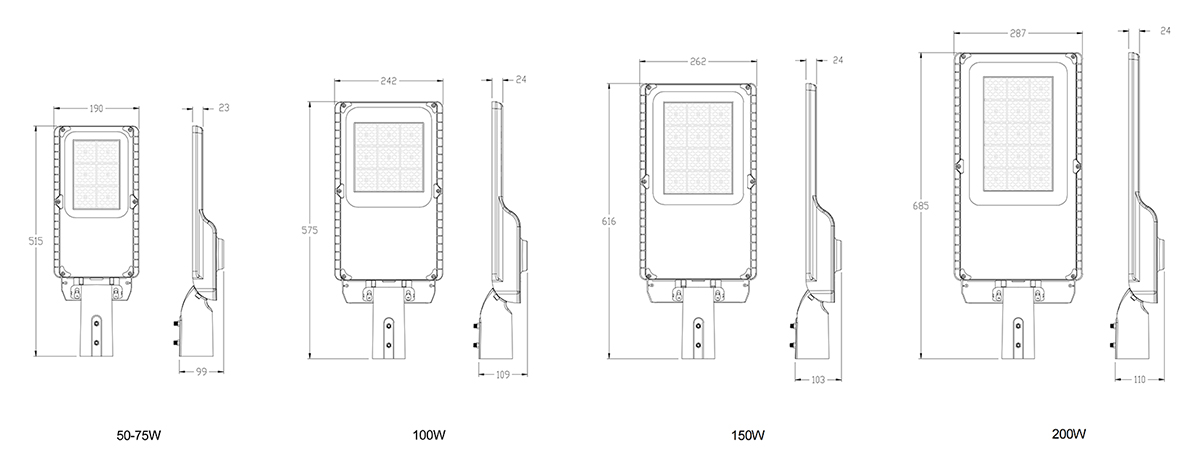

Dimension
Accessories
Installation

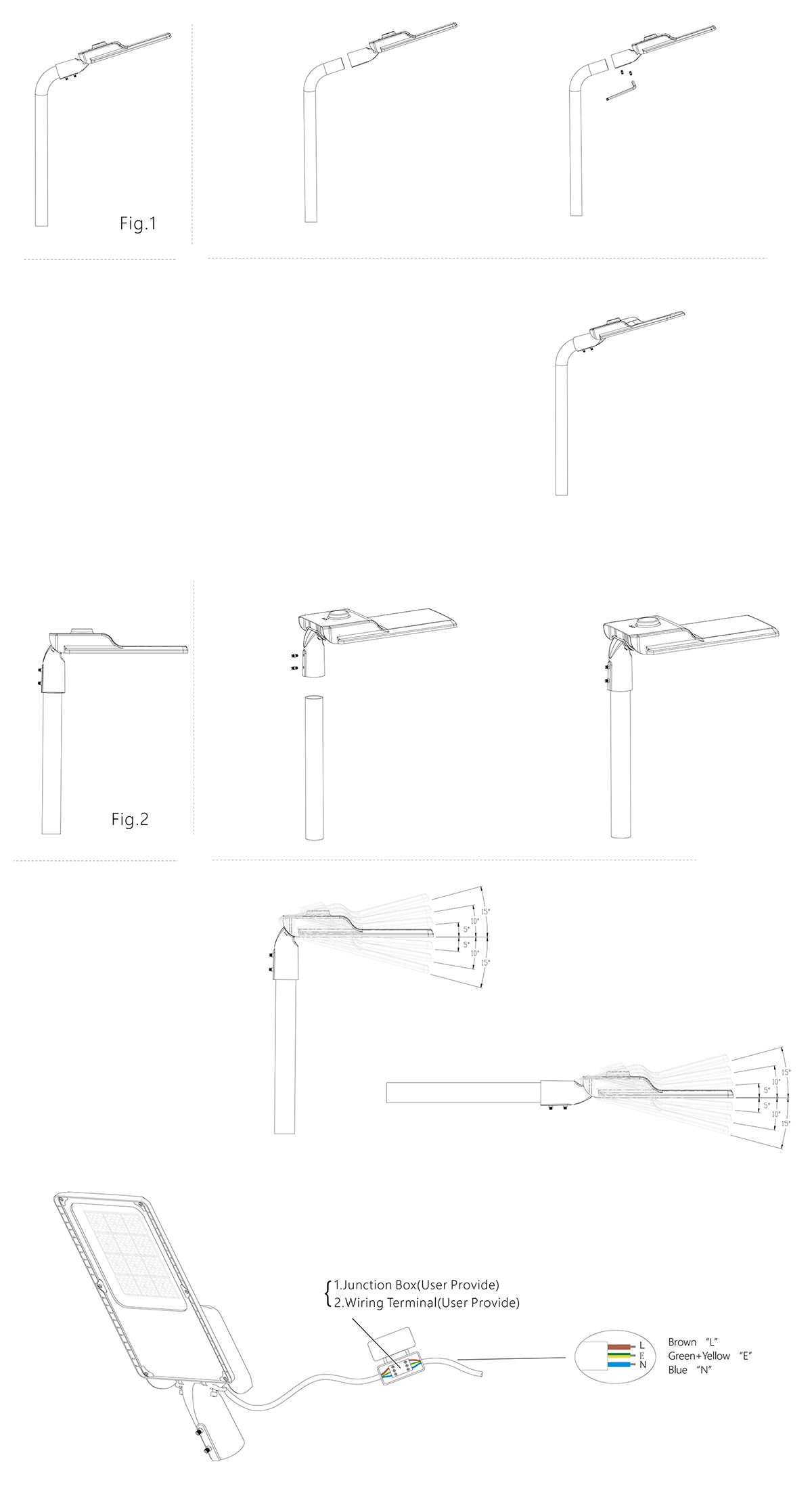

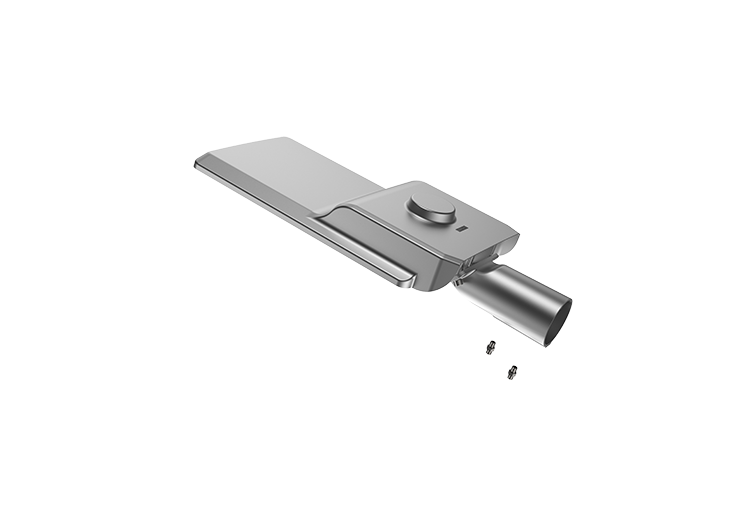

Installation steps
A: Unpack the lamp and remove the body.

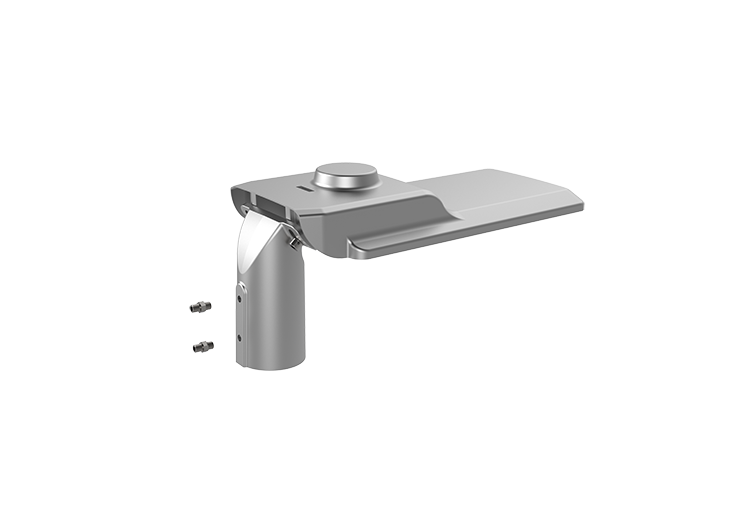

B: Loosen the two Allen screws on the pivot arm of the lamp body and adjust to the desired angle.
C: ｉｎｓｅｒｔ the bracket hole into the corresponding shaft arm hole and secure it with two side Allen screws. Refer to the installation instructions for detailed guidance.
Notes: Ensure the power is turned off before beginning operations. Installation should be carried out by skilled electricians familiar with LED luminaire requirements and proper installation methods to prevent damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be disposed of.
The light source within this luminaire should only be replaced by a qualified individual.
Video
Short Video
Download
Please contact our sales to obtain password
Sales：sales01@seekingled.com
