HBK SERIES
2024
160lm/w 500W 60°/ 90°/ 120°

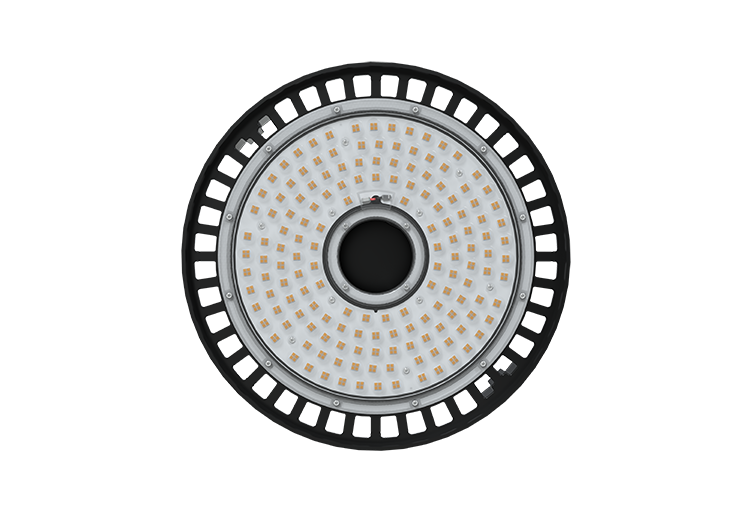

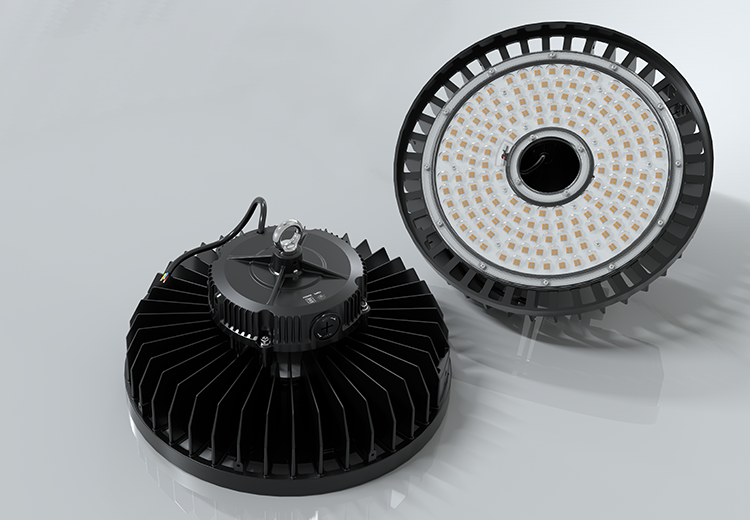

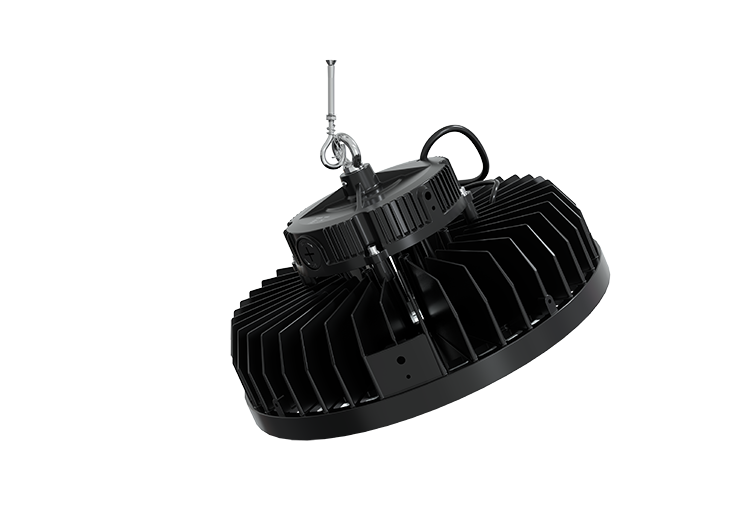

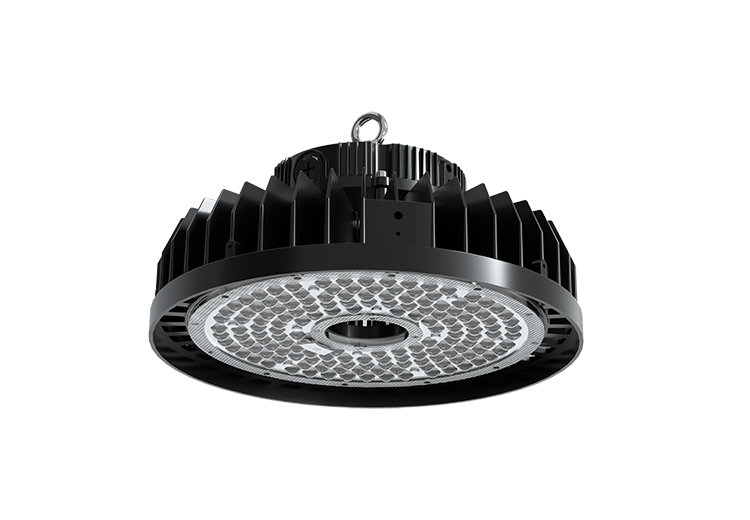

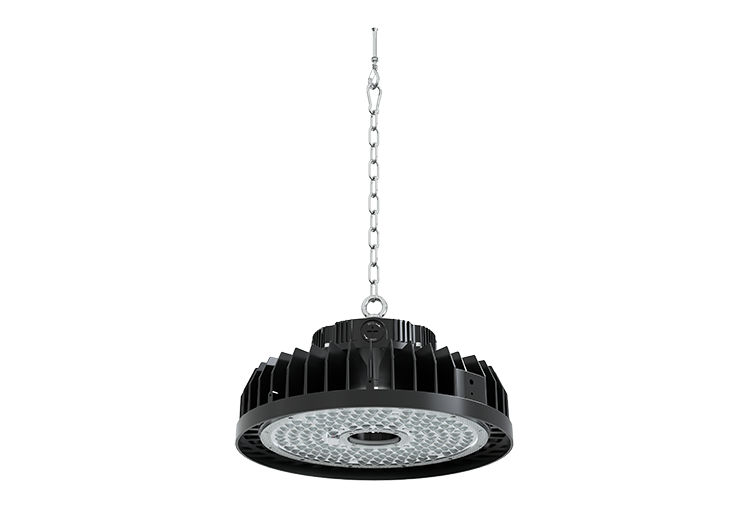

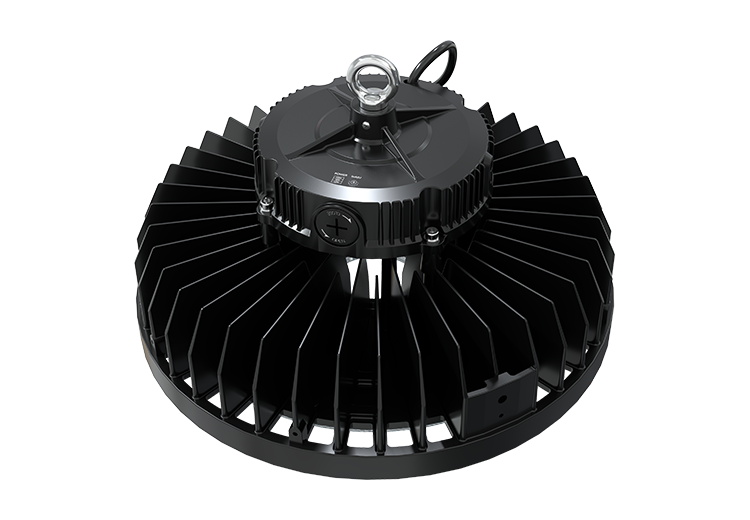

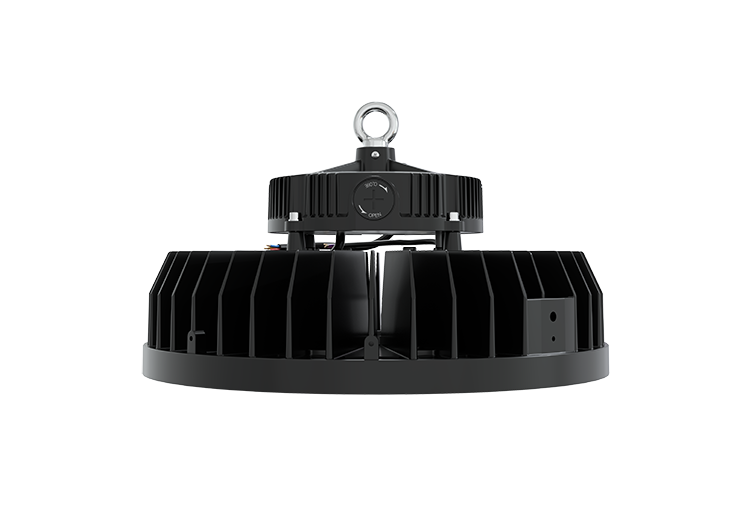

The XJ-HBK500W series mining lamps have an output power of 500 watts and a luminous efficiency of up to 160lm/W. They adopt an efficient heat dissipation structure based on the chimney effect principle, and form an up and down airflow cycle through natural convection to achieve rapid cooling, effectively reduce the risk of light decay, and ensure long-term stable operation. The lamps provide three optional light angles of 60°, 90°, and 120°, which can be flexibly adapted to different floor height requirements. The one-piece die-cast aluminum housing is both lightweight and high-strength, with a protection level of IP65, dustproof and waterproof, suitable for harsh environments such as warehouses and workshops. With optimized heat dissipation and optical design, the lamp is efficient and energy-saving while reducing maintenance costs, making it an ideal choice for industrial lighting.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Efficacy 160lm/w |
|---|---|---|
| XJ-HBK500W | 500W | 80000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：90-305V 50/60Hz
Brand of LED Driver：SOSEN
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：160±5% Lm/W
Beam Angle：60°/ 90°/ 120°
Housing：Aluminum Alloy
Surge Protection：6kV line-line,6kV line-earth
Driver Type: Constant Current (CC)
Protection Rating：IP65 & IK08
Category of corrosion: C3
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color: Tiefschwarz (RAL 9005)

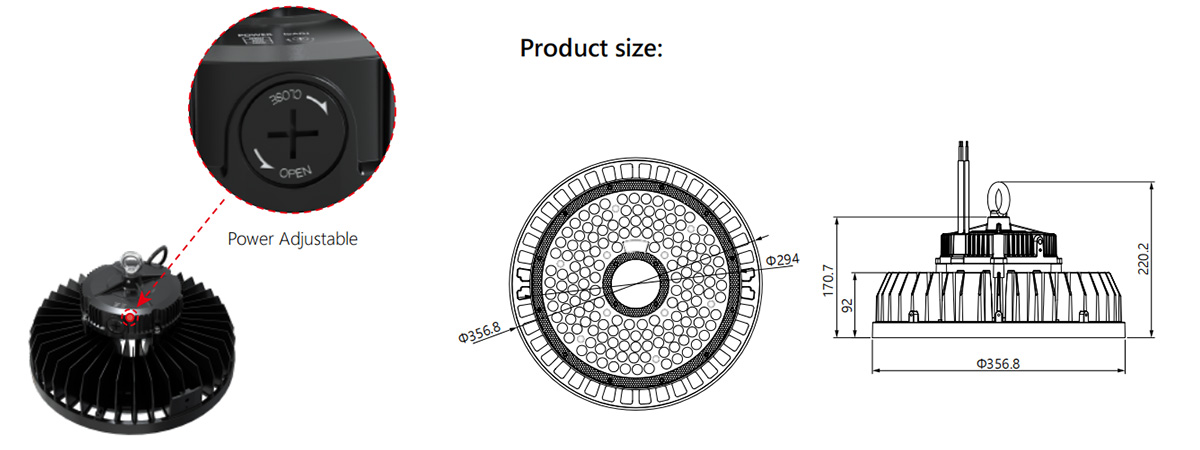

Dimension

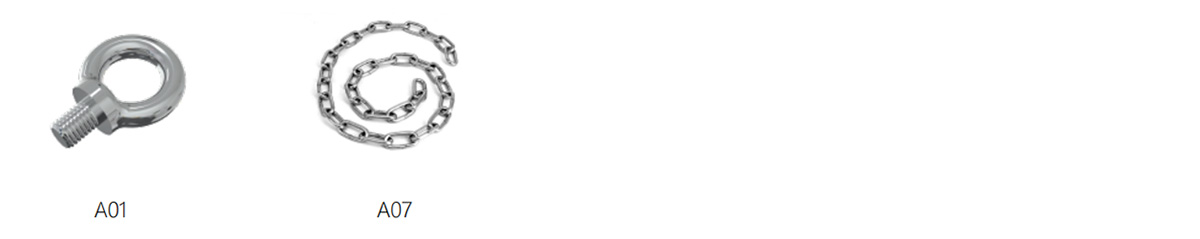

Accessories
| accessories | image | material | dimensions | weight | accessoryuse |
|---|---|---|---|---|---|
| Standard | A01 | Aluminium | M10 | 0.05kg | Suspension accessories |

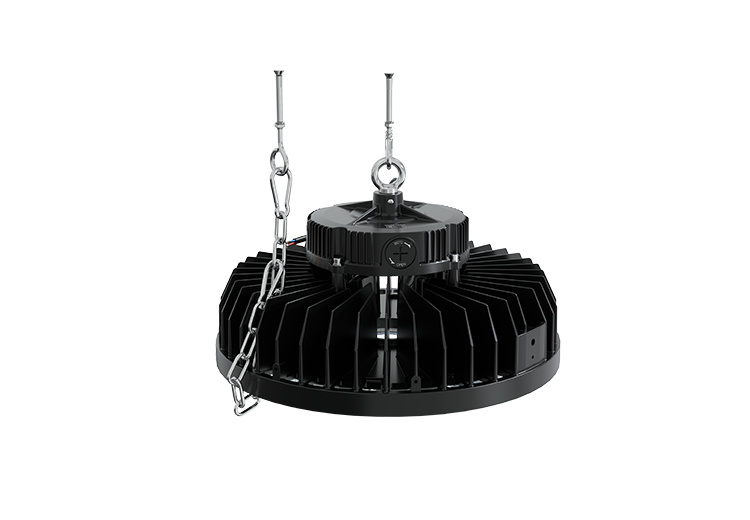

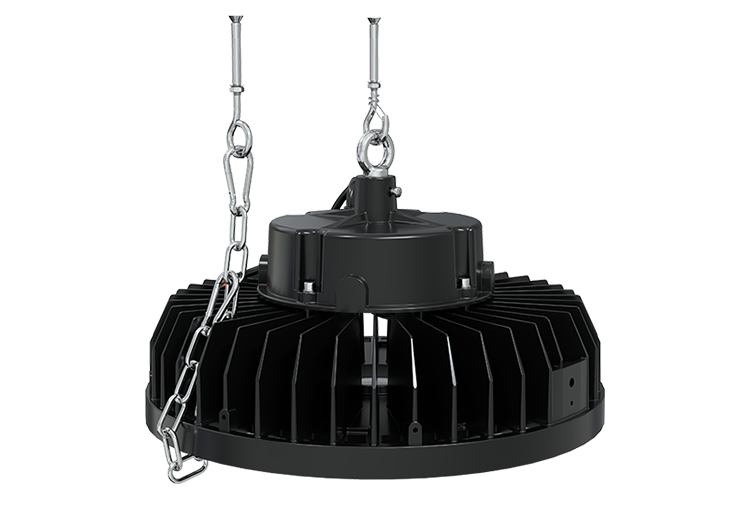

| Optional | A02 | SUS304 | ∅5x1000mm | 0.6kg | Fall prevention safety chain/ Suspension accessories |

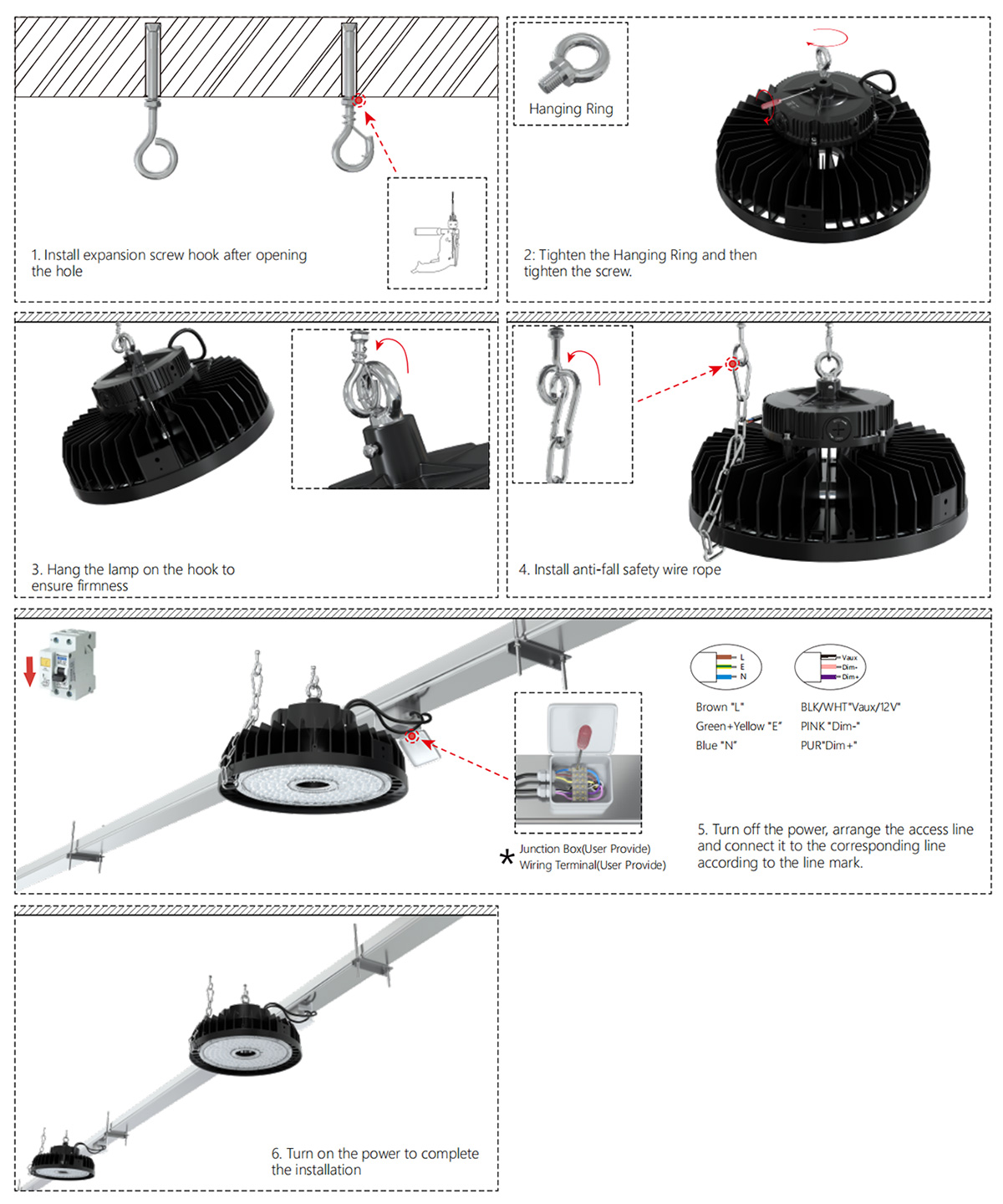

Installation
Note: Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall only be replaced by a qualified person;
Video
Short Video
Download
Please contact our sales to obtain password
Sales：sales01@seekingled.com
