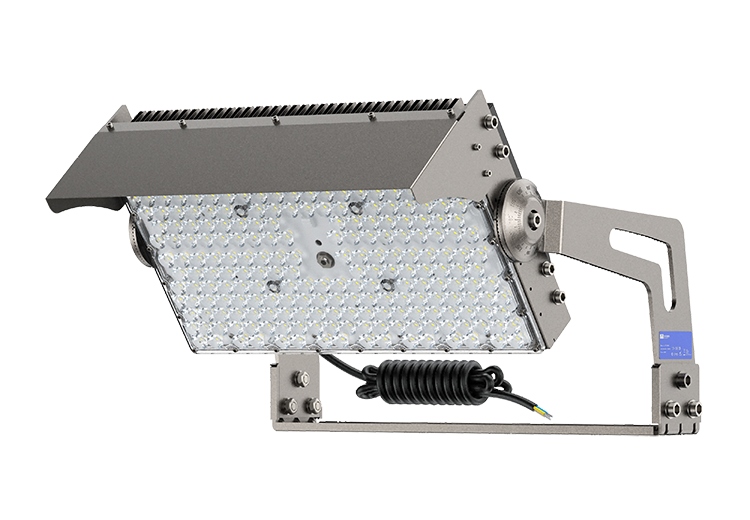

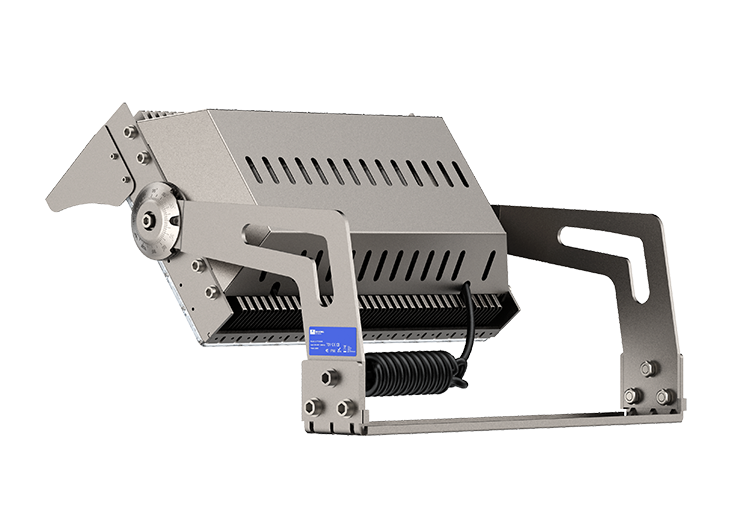

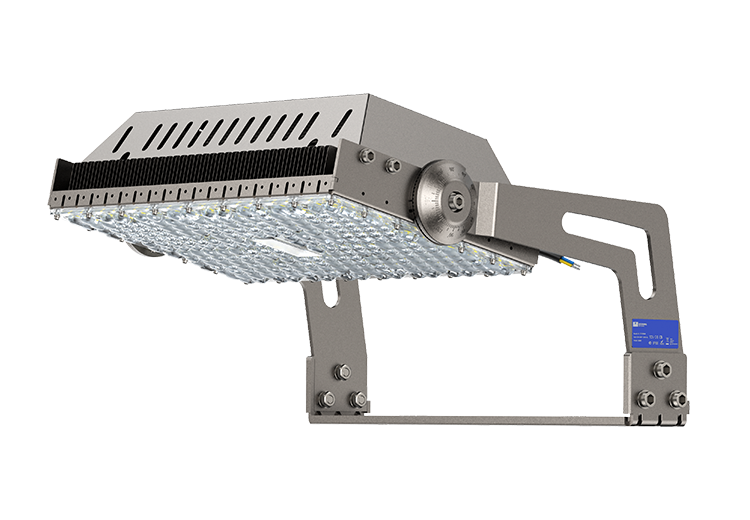

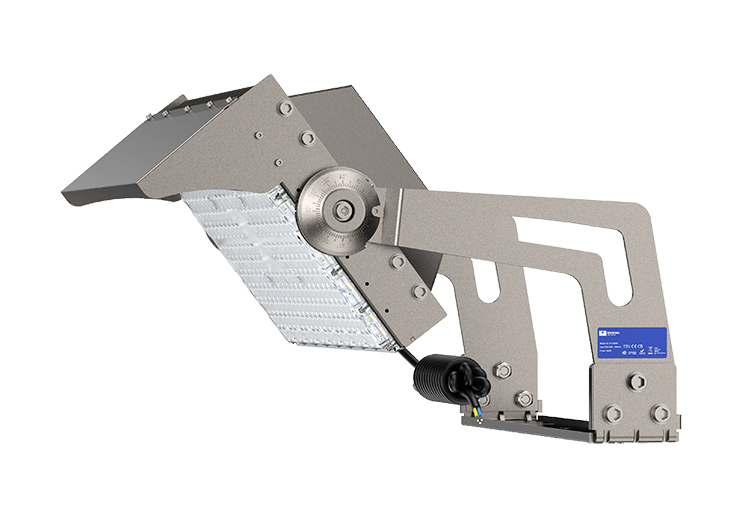

TFC SERIES (CAPRICORN)
2023

The Capricorn series High Mast lighting offers solutions for sports lighting and high-pole lighting, with various light distribution designs to meet the lighting needs of different occasions. It features a protection grade of IK08 and IP66. Equipped with a constant current power driver and anti-surge voltage protection up to 10KV, it ensures durability and reliability. The L80B20 lifetime exceeds 100,000 hours, providing long-lasting performance.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 150lm/W
XJ-TFC600W60090000

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input: 100-277V, 50/60Hz

LED Driver Brand: INVENTRONICS

Light Source: 5050 LEDs (LUMILEDS)

CRI Range:Ra>80

CCT Range:NW(4000K), CW(5700K)

Light Efficiency: 150 ± 5% Lumens per Watt (lm/W)

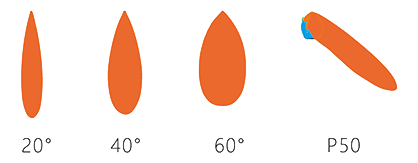

Beam Angle Options: 20°, 40°, 60°, P50

Housing: Aluminum Alloy

Surge Protection: 10kV

Waterproof Rating: IP66 & IK08 (impact resistance)

L80B20@25℃:>100000H

PF:≥0.95

(THD): < 15%

Power Efficiency: ≥ 0.9

Certifications:TUV, ENEC, CE, CB


Dimension

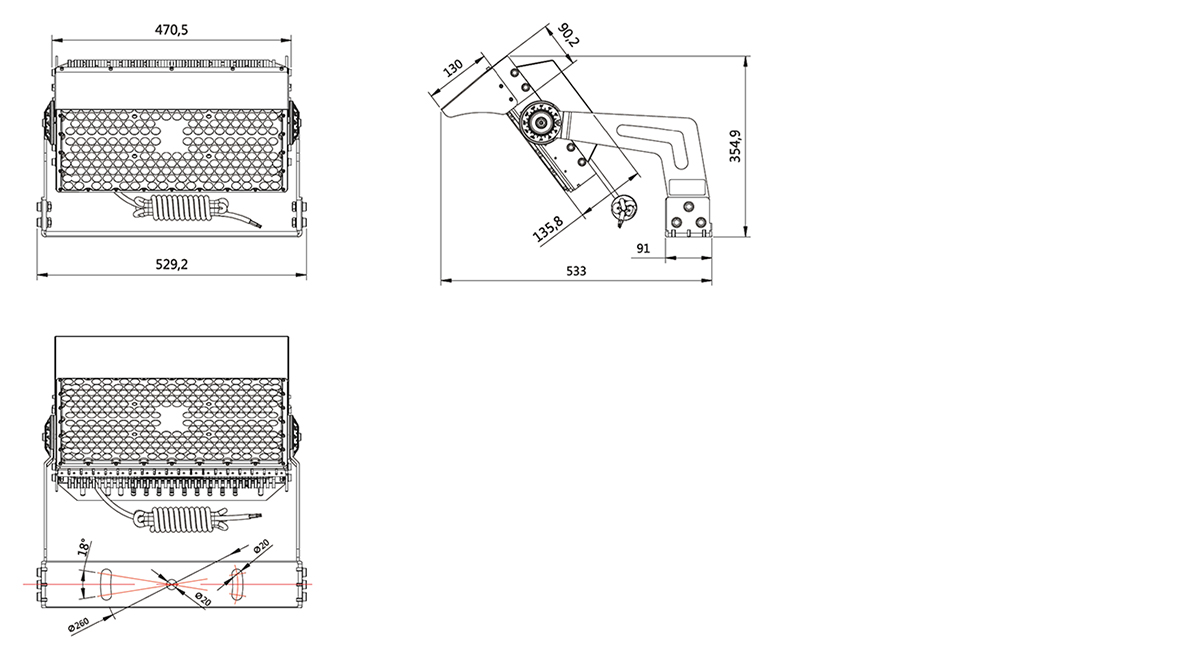

TFC SERIES (CAPRICORN) Sport Stadium Light Dimension

Accessories

accessoriesimagematerialdimensionsweightaccessory use
OptionalA06Aluminium∅ 30x120mm200gLamp angle positioning
OptionalA07SUS304∅ 5x1000mm0.6kgIncrease the safety performance

Installation

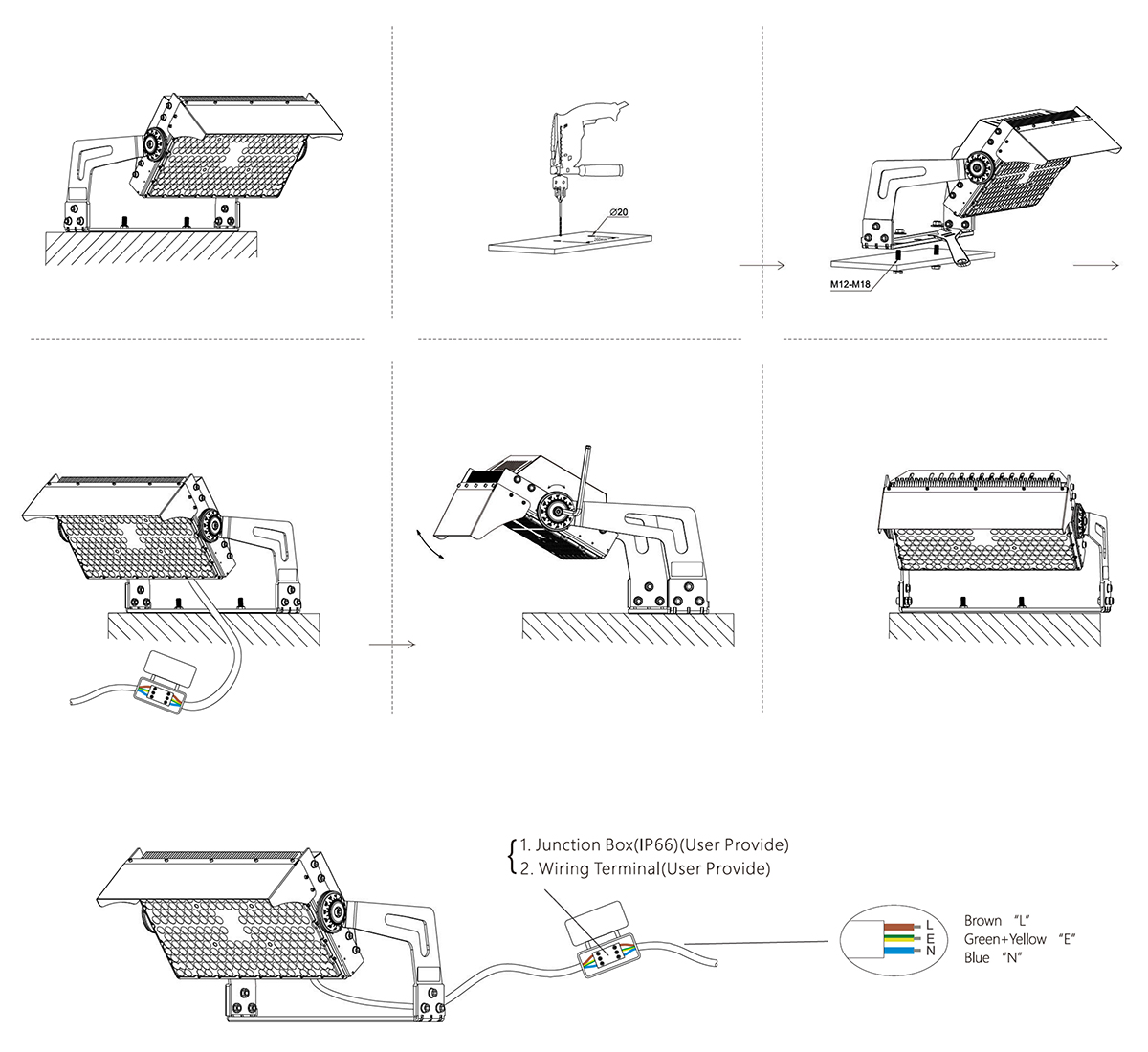

Installation steps

A: Punch two holes with a spacing of 260mm.

B: Align the holes of the lamp bracket with the installation position.

C: Fix the lamp with screws and nuts.

D. Connect the power cable.

E: Adjust the lamp angle and clean it.



Note: Ensure the power is turned off before any operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be disposed of.

The light source within this luminaire should only be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
